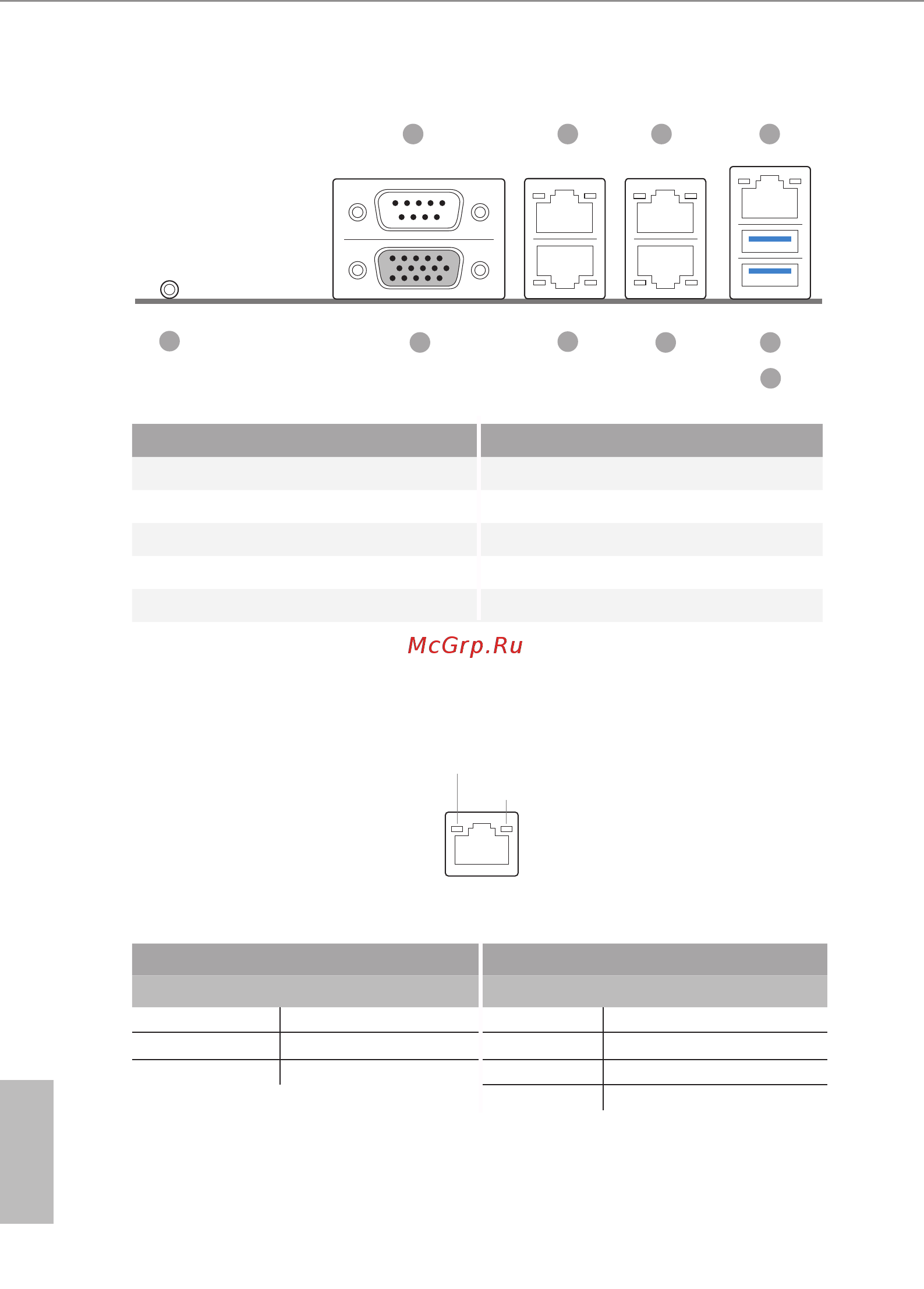

1.6 I/O Panel
3
42
1
5
7
6 8
9
10
No. Description No. Description
1 UID Switch (UID) 6 LAN RJ-45 Port (LAN4)**
2 COM Port (COM1) 7 LAN RJ-45 Port (LAN3)**
3 VGA Port (VGA1) 8 Dedicated IPMI LAN Port*
4 LAN RJ-45 Port (LAN2)** 9 USB 3.0 Port (USB3_2)***
5 LAN RJ-45 Port (LAN1)** 10 USB 3.0 Port (USB3_1)***
LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O No Link
Blinking Yellow Data Activity O 10M bps connection
On Link Yel low 100M bps connection
Green 1G bps connection
ACT/LINK LED
SPEED LED
