ASRock C3758D4I-4L [39/97] Dram configuration
![ASRock C3758D4I-4L [39/97] Dram configuration](/views2/1694241/page39/bg27.png)
C3758D4I-4L / C3558D4I-4L
32 33
English

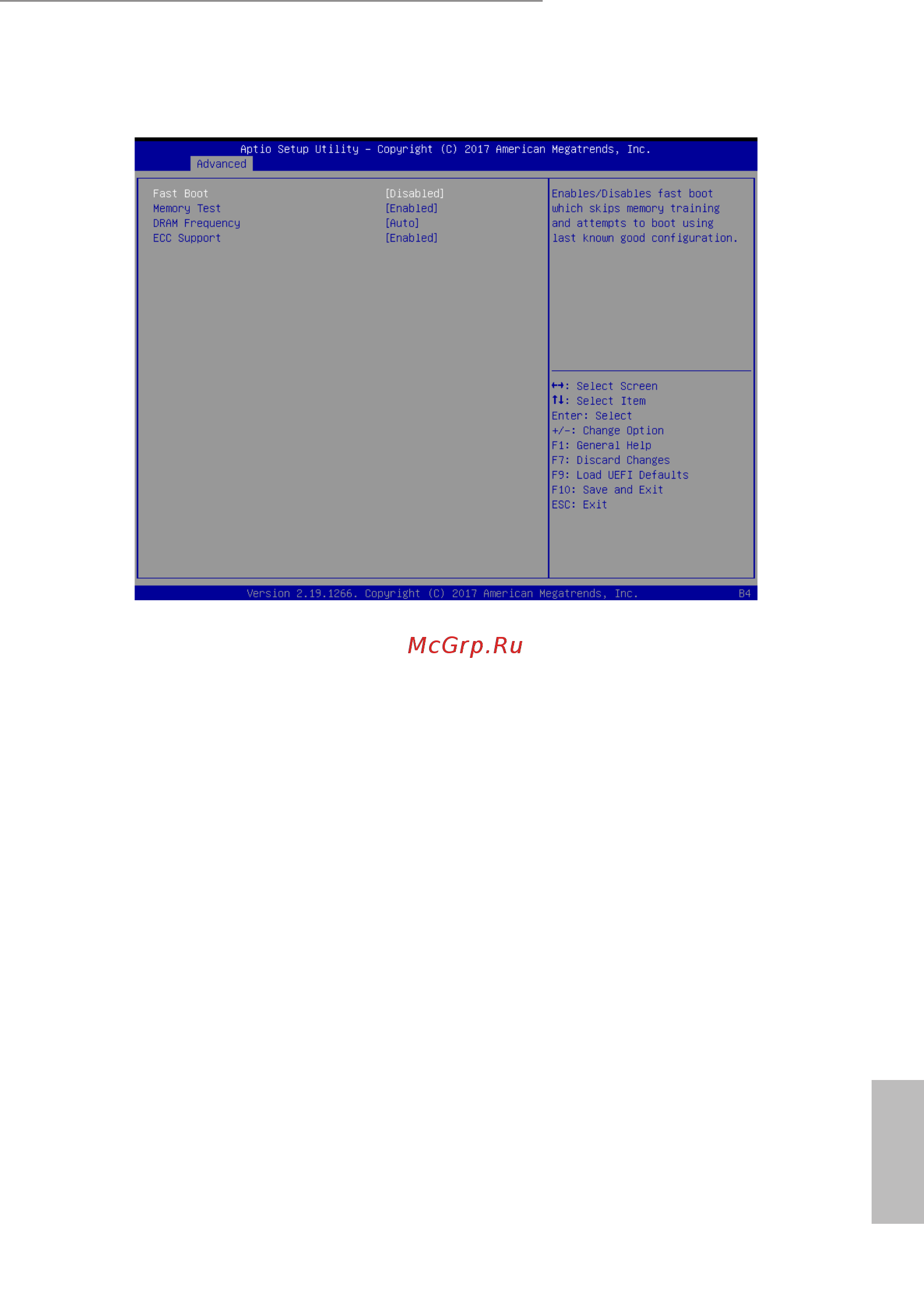

3.3.2 DRAM Conguration
Fast Boot
Enables/Disables fast boot which skips memory training and attempts to boot using last
known good conguration.
Memory Test
Enable/Disables MRC test that writes and reads certain regions of memory and stresses
then through the use of the Converged Pattern Generation and Checking (CPGC) engine
in order to verify if the memory operation is healthy.
DRAM Frequency
If [Auto] is selected, the motherboard will detect the memory module(s) inserted and
assign the appropriate frequency automatically.
ECC Support
Use this item to enable or disable DDR ECC Support.
