C3758D4I-4L / C3558D4I-4L
38 39
English

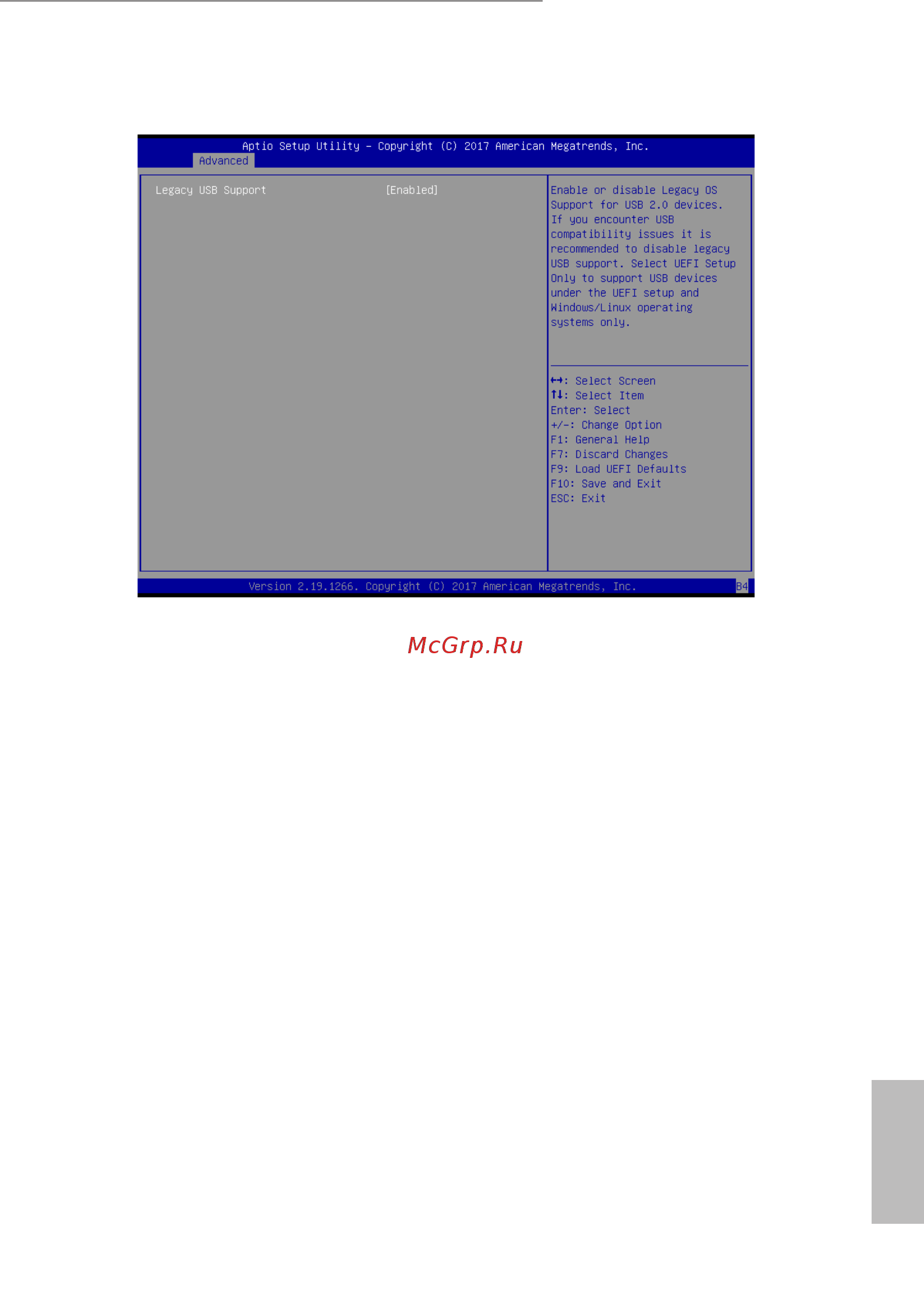

3.3.6 USB Conguration
Legacy USB Support
Enable or disable Legacy OS Support for USB 2.0 devices. If you encounter USB
compatibility issues, it is recommended to disable legacy USB support. Select UEFI Setup
Only to support USB devices under the UEFI setup and Window/Linux operating sustems
only.
