C3758D4I-4L / C3558D4I-4L
28 29
English
3.2 Main Screen

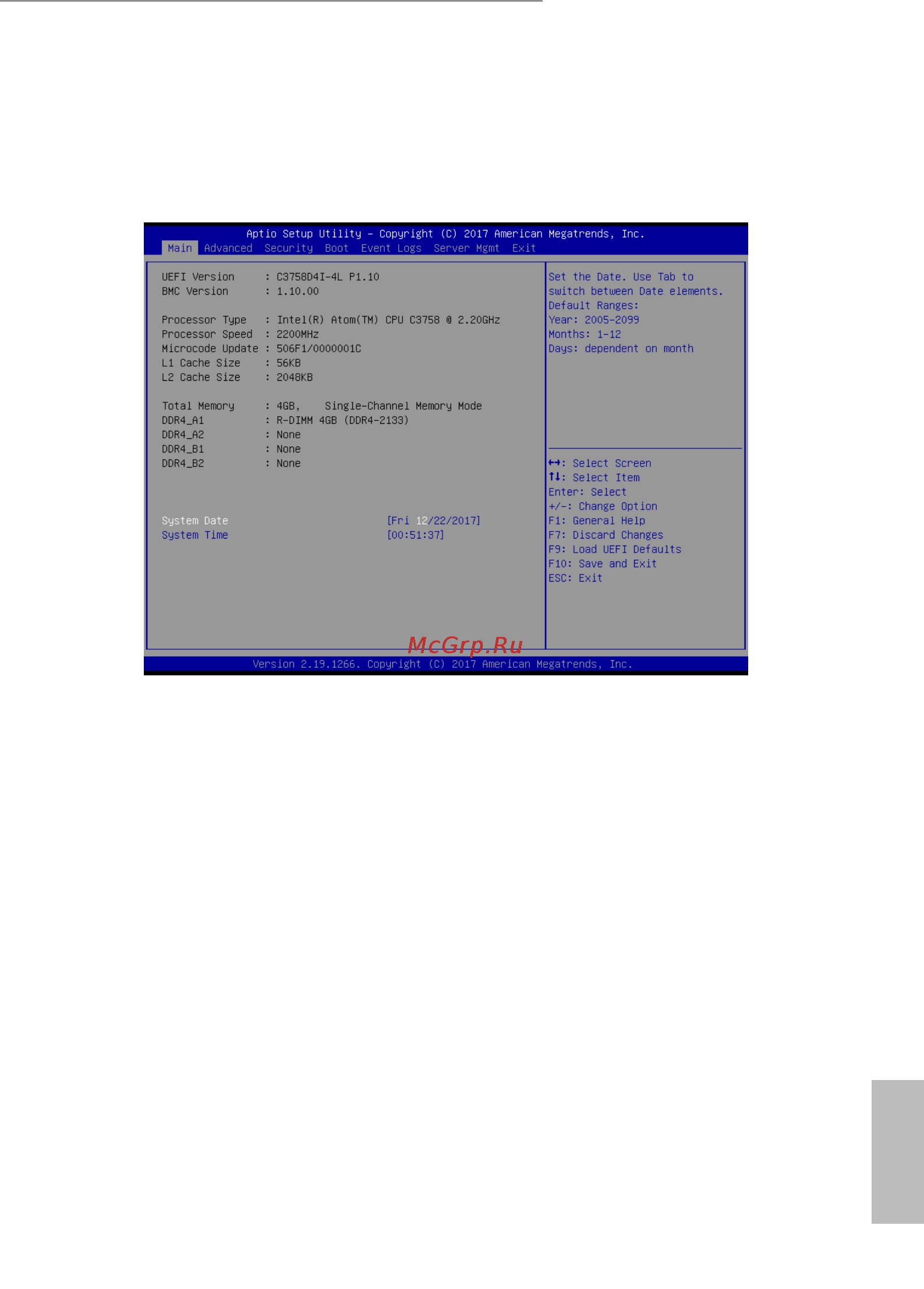

Once you enter the UEFI SETUP UTILITY, the Main screen will appear and display the
system overview. e Main screen provides system overview information and allows you
to set the system time and date.
