C3758D4I-4L / C3558D4I-4L
10 11
English

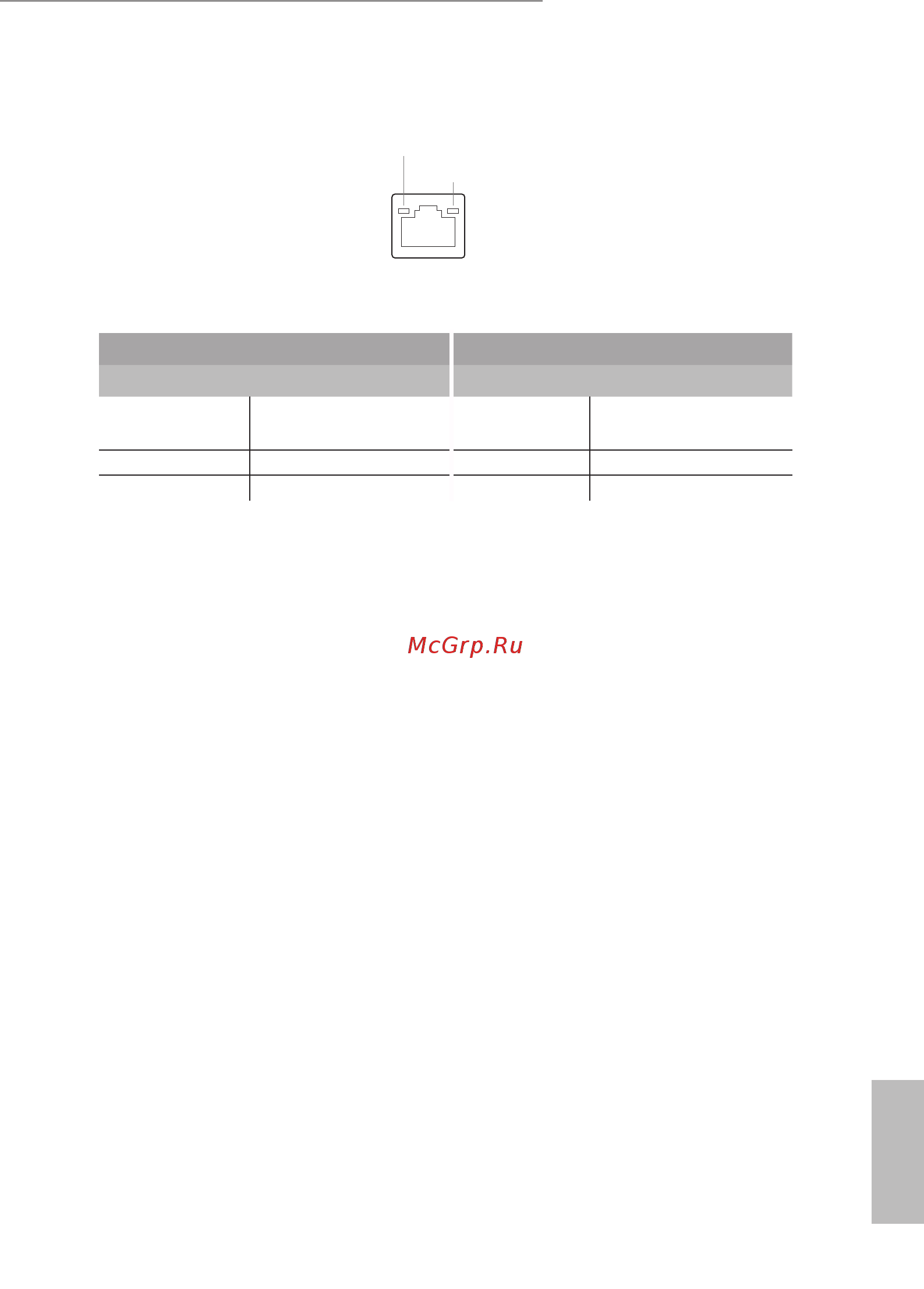

**ere are two LEDs on each LAN port. Please refer to the table below for the LAN port
LED indications.
LAN Port (LAN1, LAN2, LAN3, LAN4) LED Indications
Speed LED Activity / Link LED
Status Description Status Description
O 10Mbps connection or
no link
O No Link
Yellow 100Mbps connection Blinking Green Data Activity
Green 1Gbps connection On Link
*** e USB3_2 port on the rear I/O is shared with the USB_1_2 header on the
motherboard. Please refer to p.18 for jumper setup information.
ACT/LINK LED
SPEED LED
LAN Port
