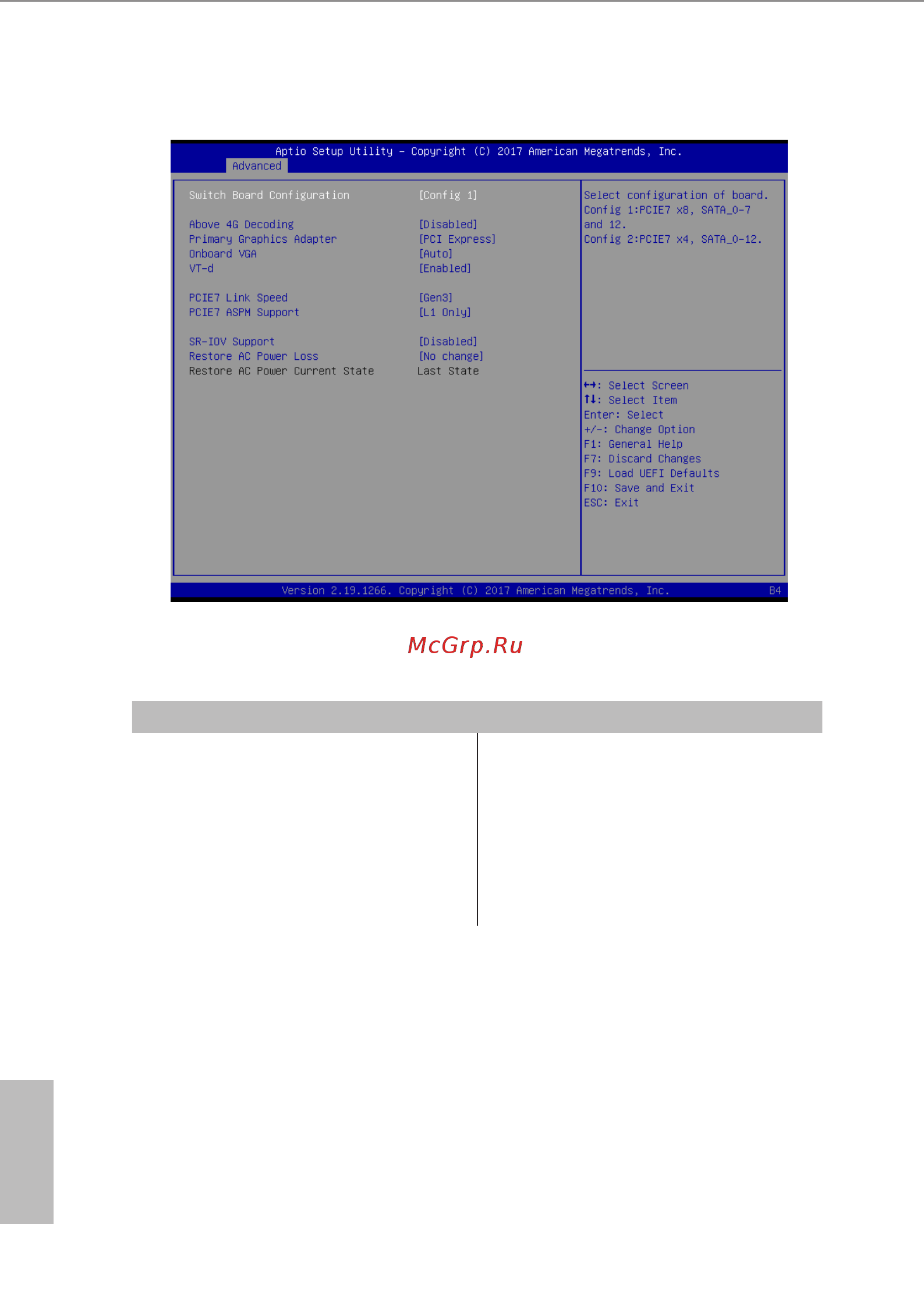

3.3.3 Chipset Conguration

Switch Board Conguration

Select conguration of board.

C3758D4I-4L C3558D4I-4L

Cong 1: PCIE7 x8, SATA_0-7

Cong 2: PCIE7 x4, SATA_0-12

Cong 1: PCIE7 x4, SATA_0-3 and 12

Cong 2: PCIE7 x4, SATA_4-7

Cong 3: PCIE7 x4, SATA_8-12

Cong 4: PCIE7 x8, SATA_12

Cong 5: SATA_0-7 and SATA_12

Cong 6: SATA_4-12

Cong 7: SATA_0-3 and SATA_8-12

Above 4G Decoding

Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if

the system supports 64 bit PCI decoding).

Primary Graphics Adapter

If PCI Express graphics card is installed on the motherboard, you may use this option to

select PCI Express , Onboard VGA or Onboard Hdmi as the primary graphics adapter.

*If no PCI Express graphics card is installed, [Onboard VGA] is the default graphics adapter. ere is no screen

on monitor even if a HDMI display is connected. Select [Onboard Hdmi] instead to use HDMI as output source.
