ASRock C3758D4I-4L [25/97] Onboard headers and connectors
![ASRock C3758D4I-4L [25/97] Onboard headers and connectors](/views2/1694241/page25/bg19.png)
C3758D4I-4L / C3558D4I-4L
18 19
English
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
headers and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.

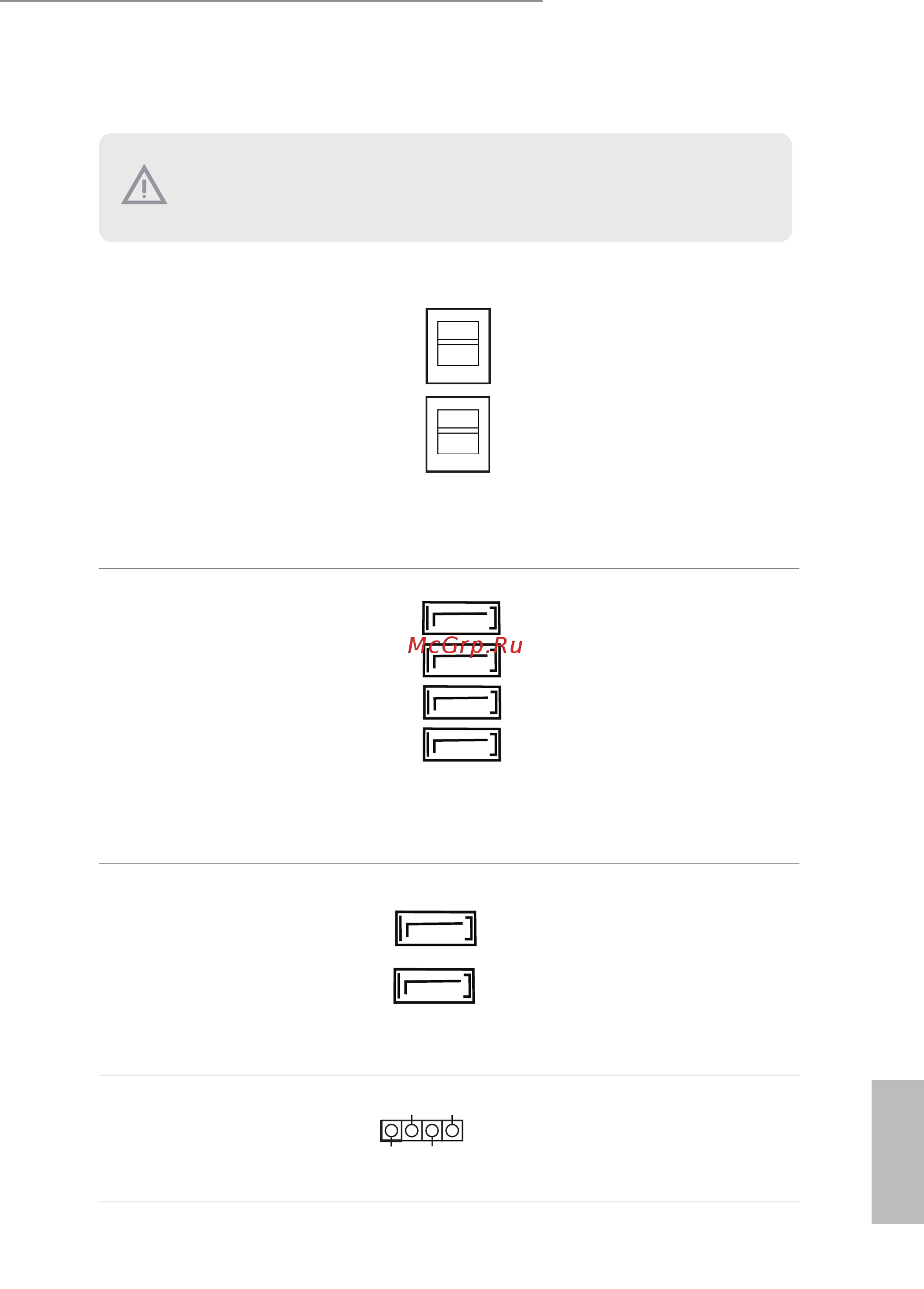

2.6 Onboard Headers and Connectors
Mini SAS HD
Connectors*
(SATA_4_7)
(see p.6, No. 11)
(SATA_8 _11)
(see p.6, No. 13)
SAT A_8_11
SAT A_4_7
ese Mini SAS HD
connectors support SAS/SATA
data cables for internal storage
devices. e current SAS3/
SATA3 interface allows up to
12.0 Gb/s data transfer rate.
For connecting SAS HDDs,
please contact SAS data cable
dealers.
Serial ATA3 Connectors
(SATA_0)
(see p.6, No. 16)
(SATA_1)
(see p.6, No. 34)
(SATA_2)
(see p.6, No. 33)
(SATA_3)
(see p.6, No. 32)
SA TA_0
SA TA_1
SA TA_2
SA TA_3
ese four SATA3
connectors support
SATA data cables for
internal storage devices
with up to 6.0 Gb/s data
transfer rate.
Serial ATA3 DOM
Connector
(SATA_0)
(see p.6, No. 16)
(SATA_12)
(see p.6, No. 15)
SAT A_12
SAT A_0
e SATA3 DOM
connector supports
both a SATA DOM
(Disk-On-Module) and
a SATA data cable for
internal storage device.
Chassis Speaker Header
(4-pin SPEAKER1)
(see p.6, No. 26)
1
+5V
DUMMY
DUMMY
SPEAKER
Please connect the chassis
speaker to this header.
*Please refer to page 6 or 8 for the motherboard layout.
