ASRock C3758D4I-4L [36/97] Advanced screen
![ASRock C3758D4I-4L [36/97] Advanced screen](/views2/1694241/page36/bg24.png)
30 31
English
Setting wrong values in this section may cause the system to malfunction.

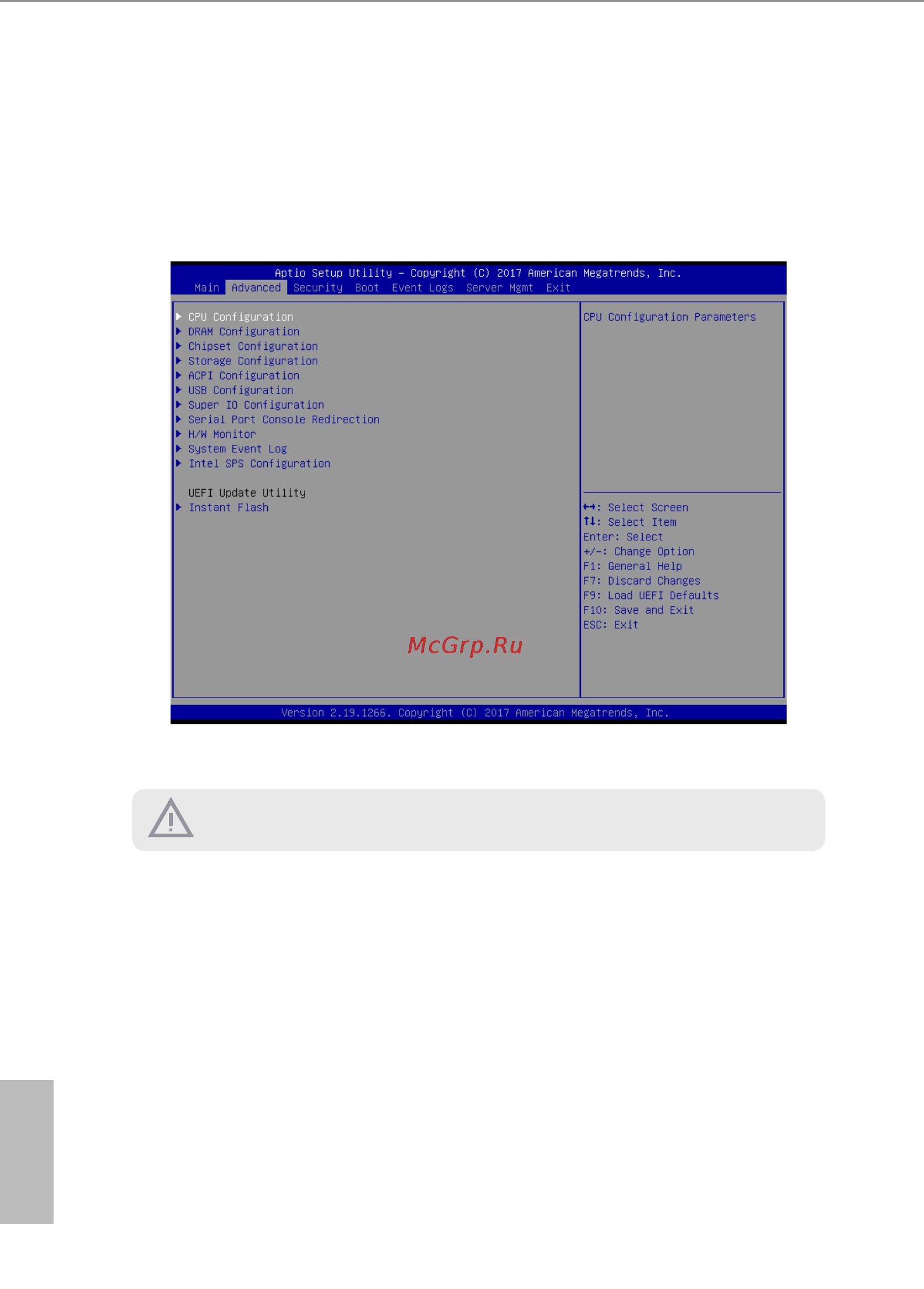

3.3 Advanced Screen
In this section, you may set the congurations for the following items: CPU Conguration,
DRAM Conguration, Chipset Conguration, Storage Conguration, ACPI Congura-
tion, USB Conguration, Super IO Conguration, Serial Port Console Redirection, H/W
Monitor, System Event Log, Intel SPS Conguration and Instant Flash.
