ASRock C3758D4I-4L [26/97] English

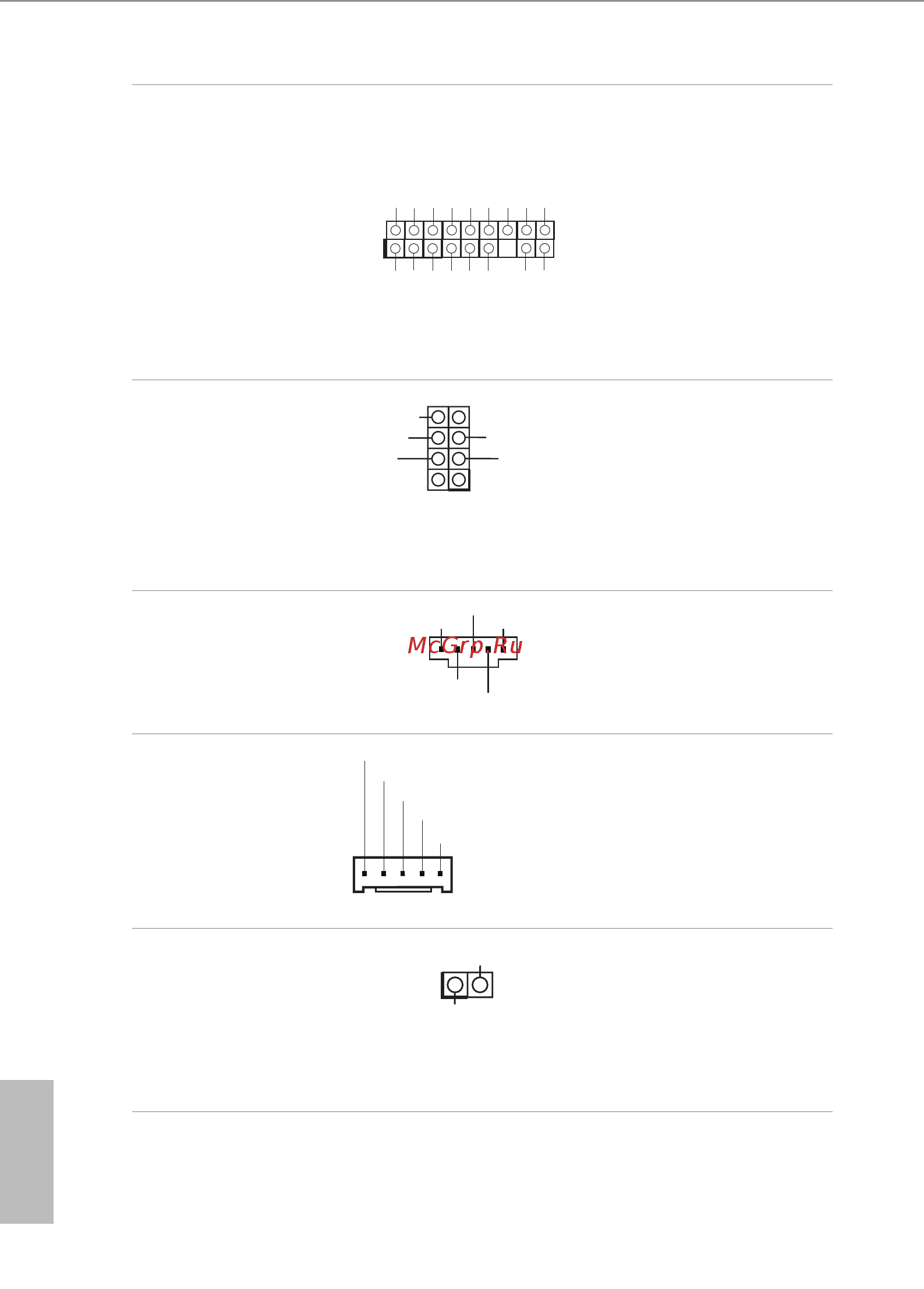

![ASRock C3758D4I-4L [26/97] English](/views2/1694241/page26/bg1a.png)
20 21
English
TPMS Header
(17-pin TPMS1)
(see p.6, No. 30)
1
GND
SMB_DATA_MAIN
LAD2
LAD1
GND
S_PWRDWN#
SERIRQ#
GND
PCICLK
PCIRST#
LAD3
+3V
LAD0
+3VSB
GND
FRAME
SMB_CLK_MAIN
is connector supports Trust-
ed Platform Module (TPM)
system, which can securely
store keys, digital certicates,
passwords, and data. A TPM
system also helps enhance
network security, protects
digital identities, and ensures
platform integrity.
Serial General Purpose
Input/Output Headers
(7-pin SATA_SGPIO1)
(see p.6, No. 10)
(7-pin SATA_SGPIO2)
(see p.6, No. 12)
1
SLOAD
SCLOCK
GND
GND SDATAOUT
ese headers support Serial
Link interface for onboard
SATA connections.
PSU SMBus
(PSU_ SMB1)
(see p.6, No. 1)
+3V
1
GND
ALERT
SMBCLK
SMBDATA
PSU SMBus monitors the
status of the power supply, fan
and system temperature.
BMC SMB Headers
(5-pin BMC_SMB_1)
(see p.6, No. 27)
BMC_SMB_PRESENT_1_N
Power
BMC_SMBCLK
GND
BMC_SMBDATA
is header is used for the SM
BUS devices
.
Non Maskable Interrupt
Button Header
(2-pin NMI_BTN1)
(see p.6, No. 22)
1
CONTROL
GND
Please connect a NMI device to
this header.
