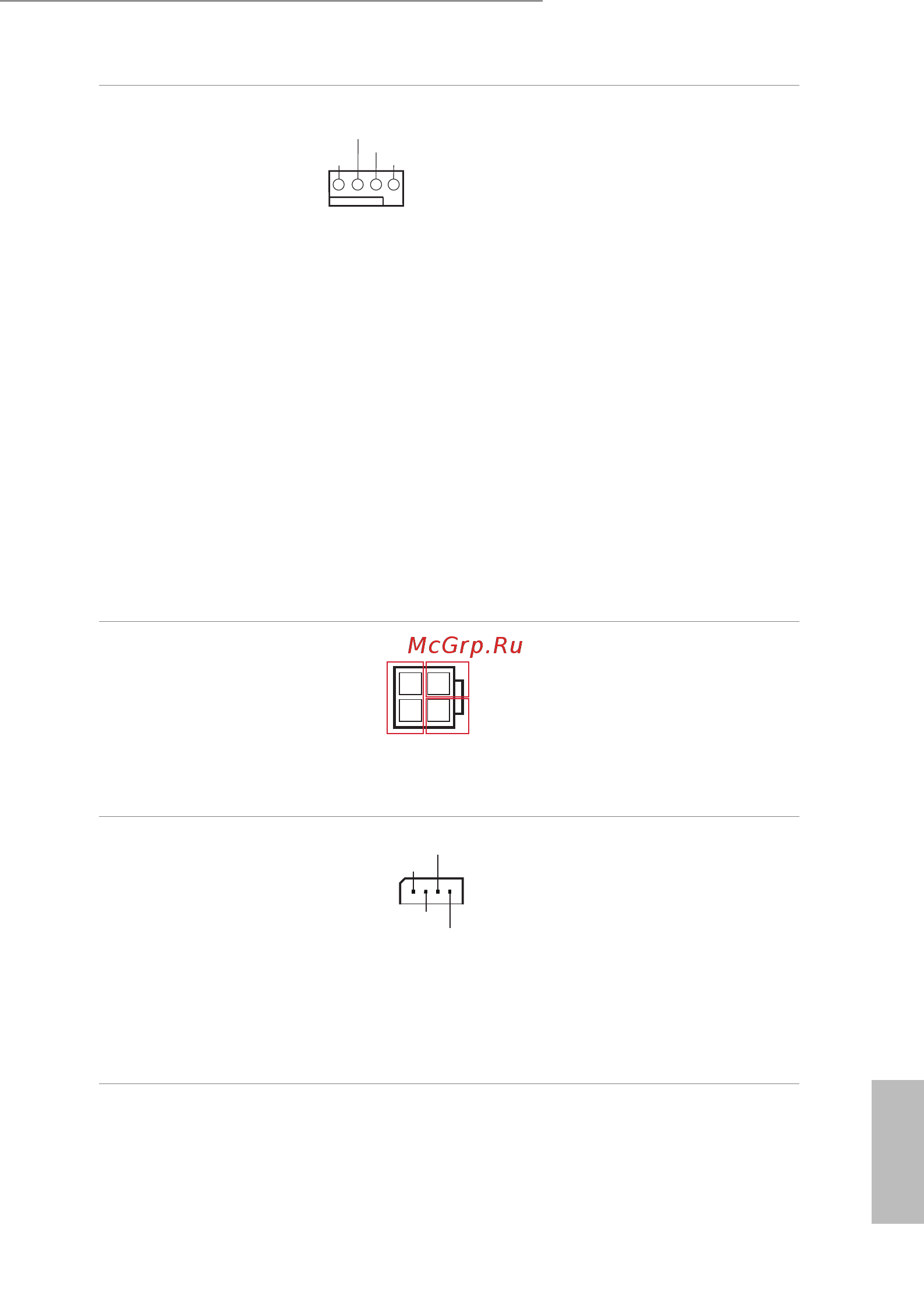

C3758D4I-4L / C3558D4I-4L
22 23
English
CPU Fan Connector
(4-pin CPU1_FAN1)
(see p.6, No. 8)
GND
FAN_VOLTAGE
CPU_FA N_SPEED
FAN_SPEED_CONTROL
1 2 3 4
Please connect the CPU fan
cable to the connector and
match the black wire to the
ground pin.
ough this motherboard
provides a 4-Pin CPU fan
(Quiet Fan) connector, 3-Pin
CPU fans can still work
successfully even without the
fan speed control function.
If you plan to connect a
3-Pin CPU fan to the CPU
fan connector on this
motherboard, please connect
it to Pin 1-3.
*
For more details, please refer to the
Cooler QVL list on the ASRock Rack
website.
HDD Power Connector
(4-pin HDD_PWR1)
(see p.6, No. 7)
1
2
3
4
GND
+12V
+5V
Please connect a 4-pin power
cable to this connector to
connect a HDD.
Intelligent Platform
Management Bus header
(4-pin IPMB1)
(see p.6, No. 31)
IPMB_SDA
IPMB_SCL
GND
No connect
is 4-pin connector is used
to provide a cabled baseboard
or front panel connection for
value added features and 3rd-
party add-in cards, such as
Emergency Management cards,
that provide management
features using the IPMB.
