ASRock EP2C612D24-4L [21/101] I o panel
![ASRock EP2C612D24-4L [21/101] I o panel](/views2/1694647/page21/bg15.png)
EP2C612D24 / EP2C612D24-4L
14 15
English

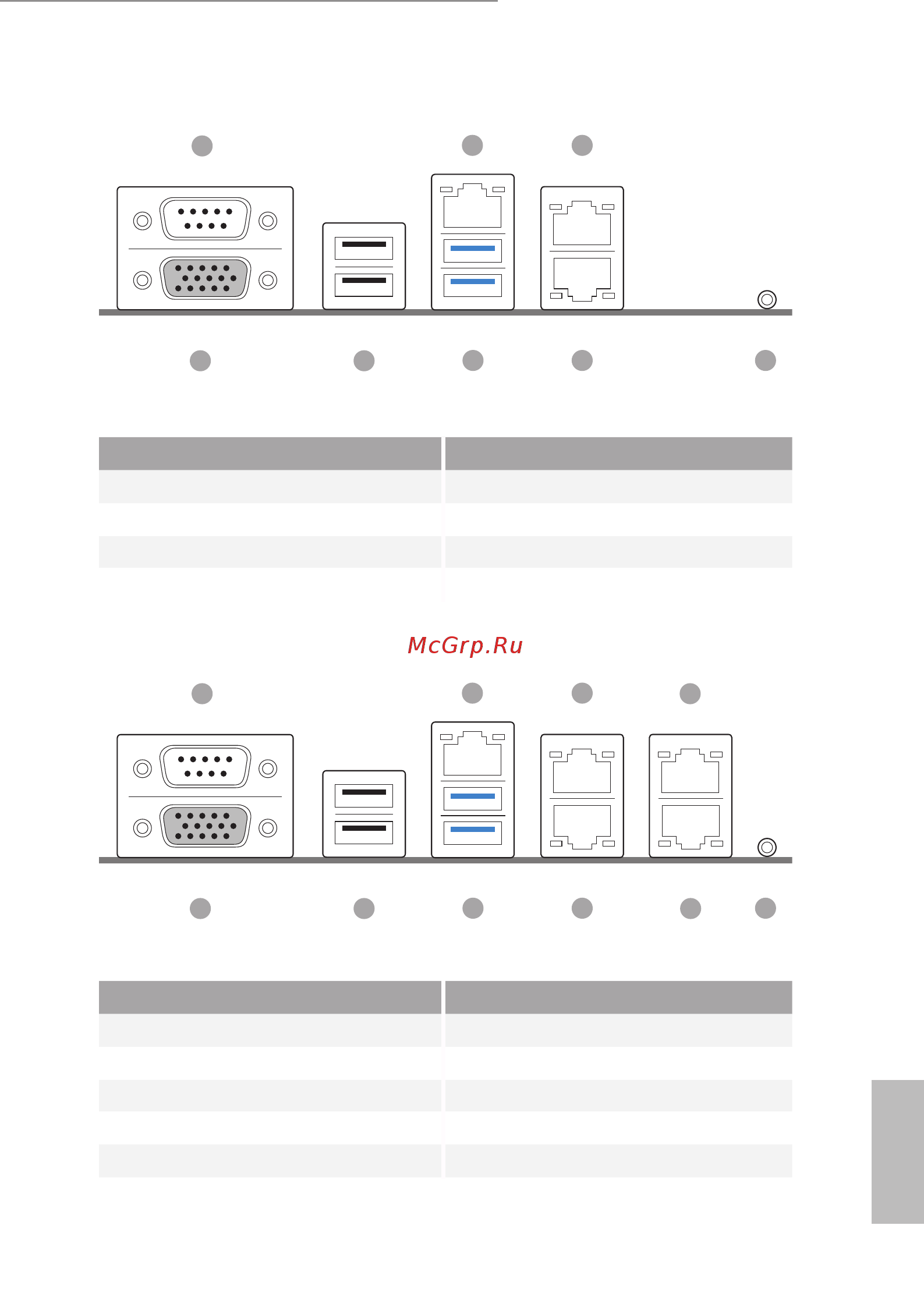

1.6 I/O Panel
6
3
2
4
1
5
8
7
EP2C612D24
No. Description No. Description
1 Serial Port (COM1) 5 LAN RJ-45 Port (IPMI_LAN)*
2 VGA Port (VGA1) 6 LAN RJ-45 Port (LAN1)**
3 USB 2.0 Ports (USB_1_2) 7 LAN RJ-45 Port (LAN2)**
4 USB 3.0 Ports (USB3_1_2) 8 UID Switch (UID)
Note: LAN1 supports NCSI.
8
6
3
2
4
1
5
10
7
9
EP2C612D24-4L
No. Description No. Description
1 Serial Port (COM1) 6 LAN RJ-45 Port (LAN1)**
2 VGA Port (VGA1) 7 LAN RJ-45 Port (LAN2)**
3 USB 2.0 Ports (USB_1_2) 8 LAN RJ-45 Port (LAN3)**
4 USB 3.0 Ports (USB3_1_2) 9 LAN RJ-45 Port (LAN4)**
5 LAN RJ-45 Port (IPMI_LAN)* 10 UID Switch (UID)
Note: LAN1 supports NCSI.
