EP2C612D24 / EP2C612D24-4L
34 35
English

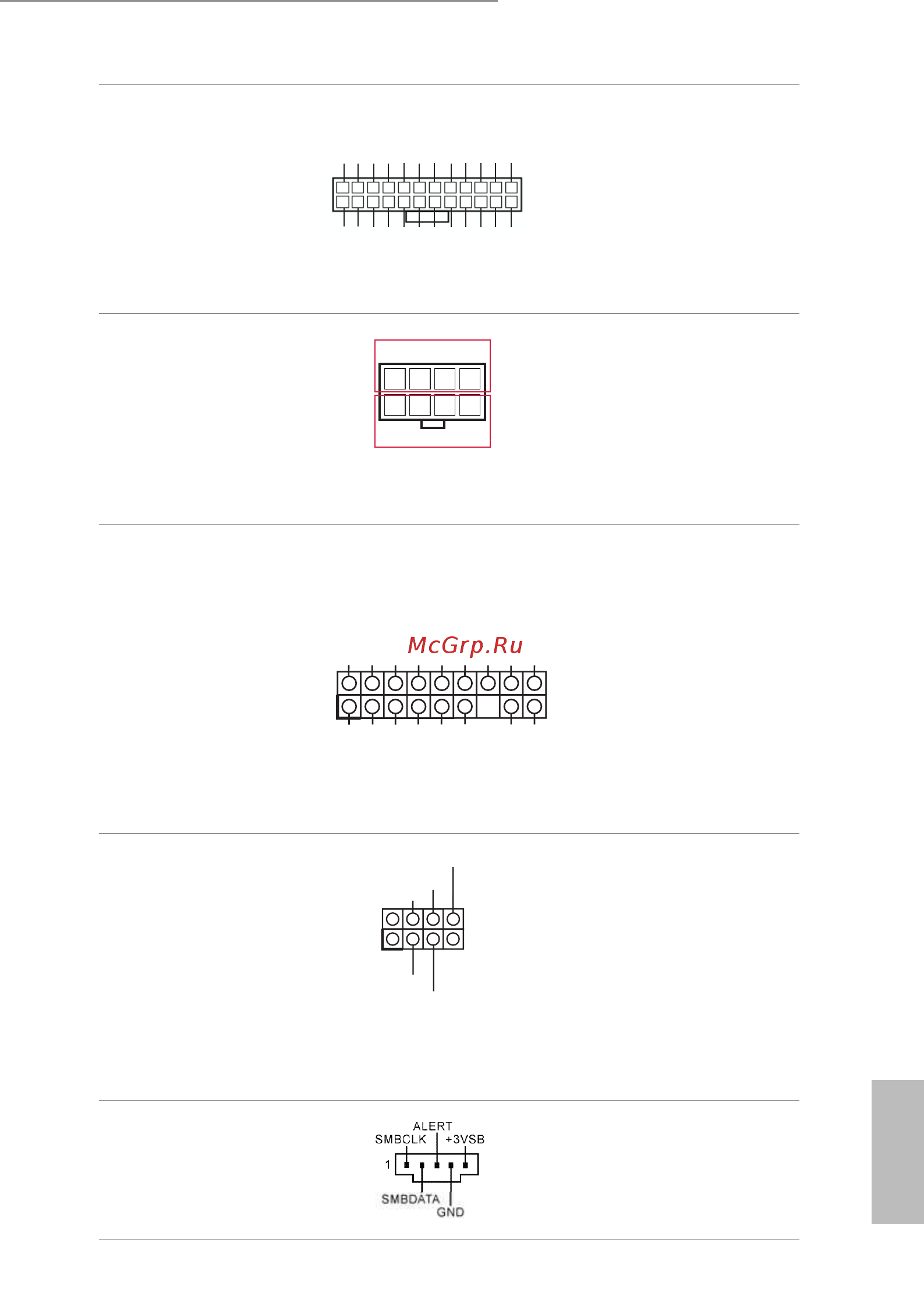

ATX Power Connector
(24-pin ATXPWR1)
(see p.7 or 10)
3V
3V
GND
GND
5V
5V
GND
PWROK_PS
5VSB
12V
12V
3V
121
13
24
3V
-12V
GND
PSON#
GND
GND
GND
5V
5V
5V
GND
N/A
is motherboard provides a
24-pin ATX power connector.
To use a 20-pin ATX power
supply, please plug it along Pin
1 and Pin 13.
ATX 12V Power
Connectors
(8-pin ATX12V1)
(see p.7 or 10)
(8-pin ATX12V2)
(see p.7 or 10)
4
8
1
5
+12V2
GND
is motherboard provides
two 8-pin ATX 12V power
connectors.
TPM Header
(17-pin TPM1)
(see p.7 or 10)
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
Serial General Purpose
Input/Output Headers
(7-pin SATA_SGPIO1)
(see p.7 or 10)
(7-pin SATA_SGPIO2)
(see p.7 or 10)
(7-pin SSATA_SGPIO1)
(see p.7 or 10)
1
SLOAD
SCLOCK
GND
GND
SDATA OUT
The headers support Serial
Link interface for onboard
SATA connections.
PSU SMBus
(PSU_SMB1)
(see p.7 or 10)
PSU SMBus monitors the
status of the power supply, fan
and system temperature.
1
LFRAME#_L
CK_33M_TPM
TPM_RST#
LAD3_L
+3V
LAD0_L
+3VSB
GNDF_CLKRUN#
SERIRQ#
S_PWRDWN#
GND
LAD1_L
LAD2_L
SMB_DATA_MA IN
SMB_CLK_MAIN
GND
