EP2C612D24 / EP2C612D24-4L
56 57
English

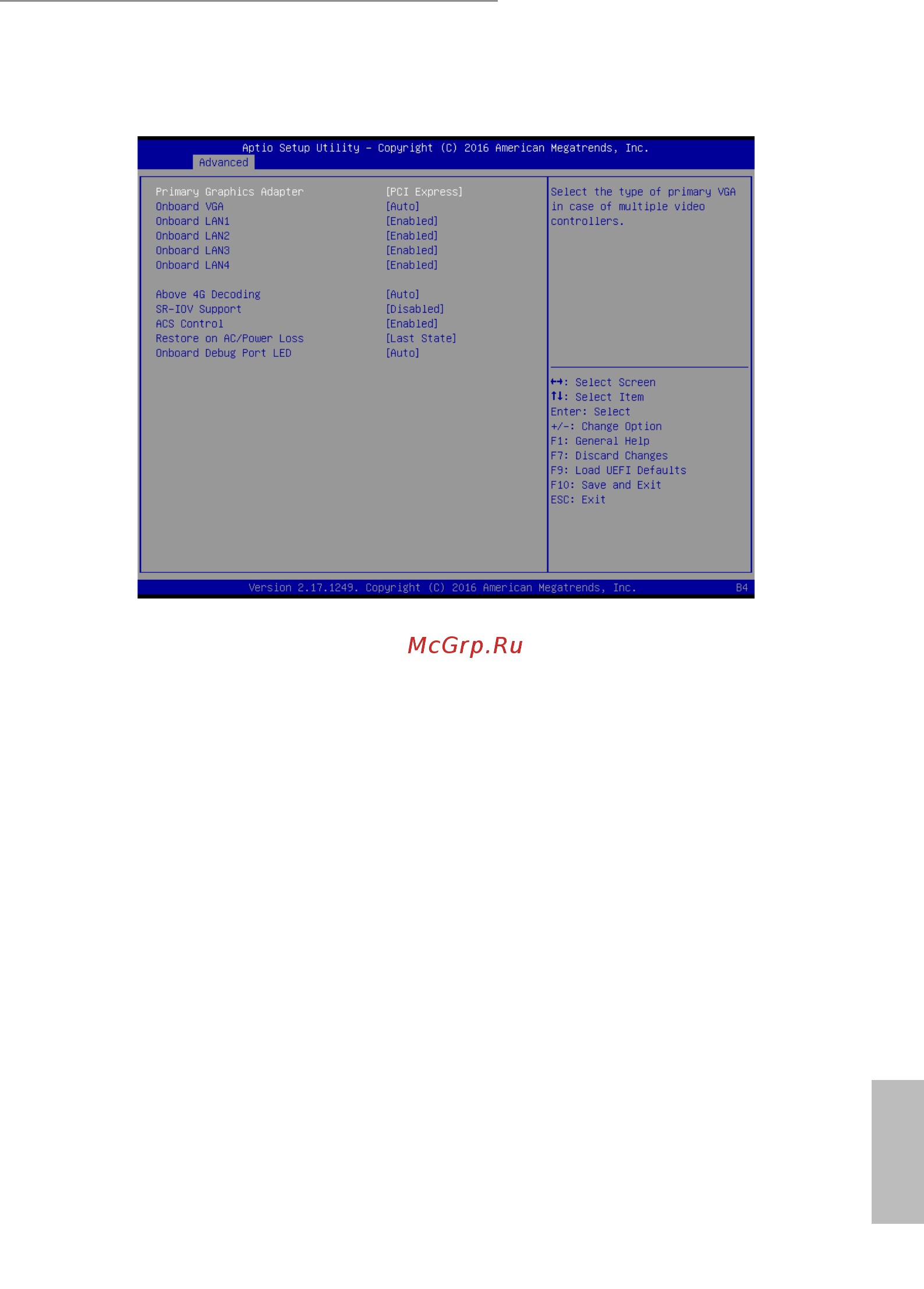

3.3.7 System Conguration
Primary Graphics Adapter
Use this item to select the type and primary VGA in case of multiple video contorllers.
Onboard VGA
Use this to enable or disable the Onboard VGA function. e default value is [Auto].
Onboard LAN1
is allows you to enable or disable the Onboard LAN1 features.
Onboard LAN2
is allows you to enable or disable the Onboard LAN2 features.
Onboard LAN3
(EP2C612D24-4L only)
is allows you to enable or disable the Onboard LAN3 features.
Onboard LAN4
(EP2C612D24-4L only)
is allows you to enable or disable the Onboard LAN4 features.
Above 4G Decoding
Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if
the system supports 64 bit PCI decoding).
