52 53
English

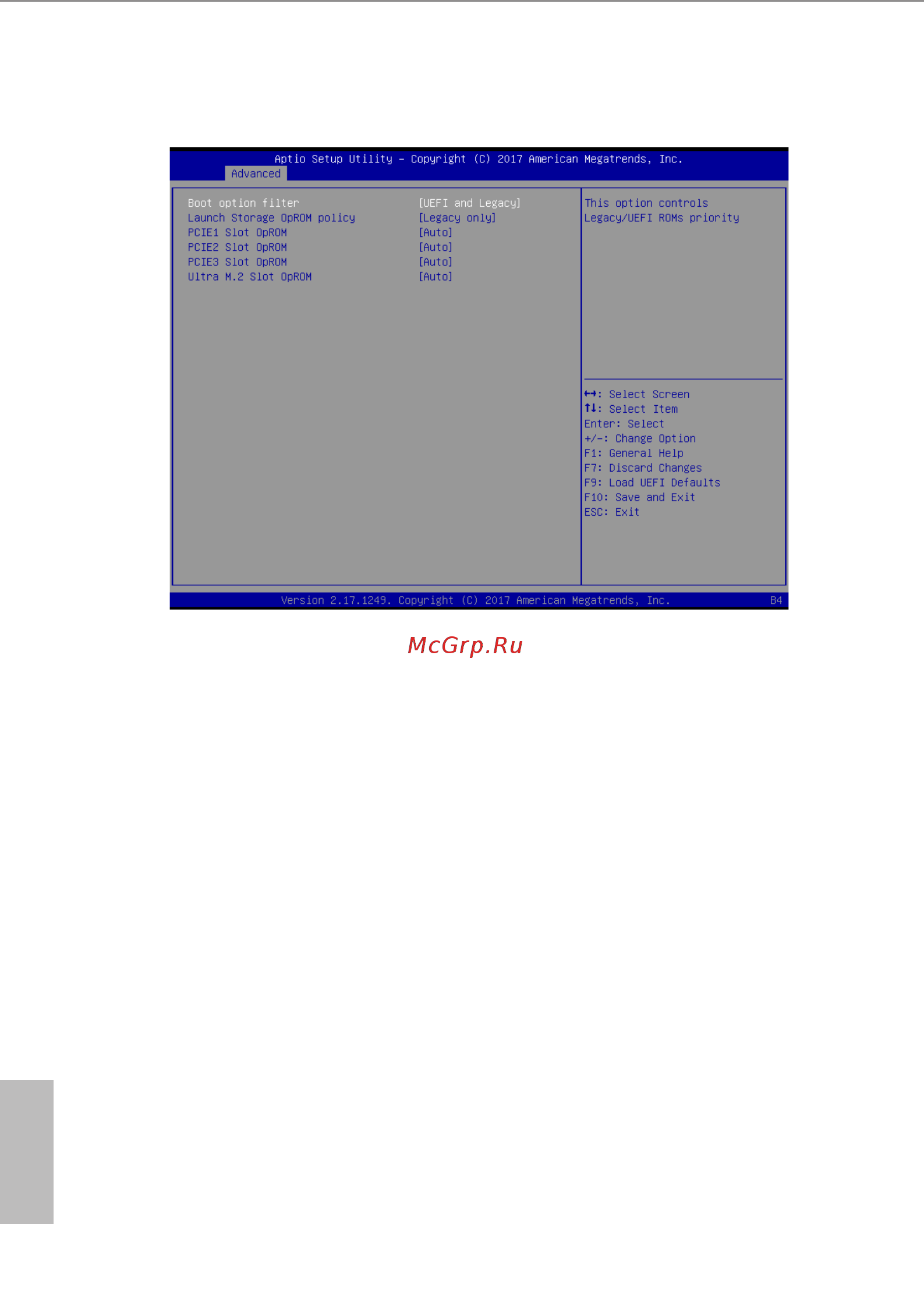

3.3.4 CSM Conguration
Boot Option Filter
is option controls Legacy/UEFI ROMs priority.
Launch Storage OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy
only to run those that support legacy option ROM only. Select Do not launch to not
execute both legacy and UEFI option ROM.
PCIE1 Slot OpROM
Use this item to select PCIE1 Storage and Network Option ROM policy. In Auto
option, the default is Disabled with NVMe device, but it is Legacy with other
devices. (is item can't select Video Option ROM policy.)
PCIE2 Slot OpROM
Use this item to select PCIE2 Storage and Network Option ROM policy. In Auto
option, the default is Disabled with NVMe device, but it is Legacy with other
devices. (is item can't select Video Option ROM policy.)
