Setting wrong values in this section may cause the system to malfunction.

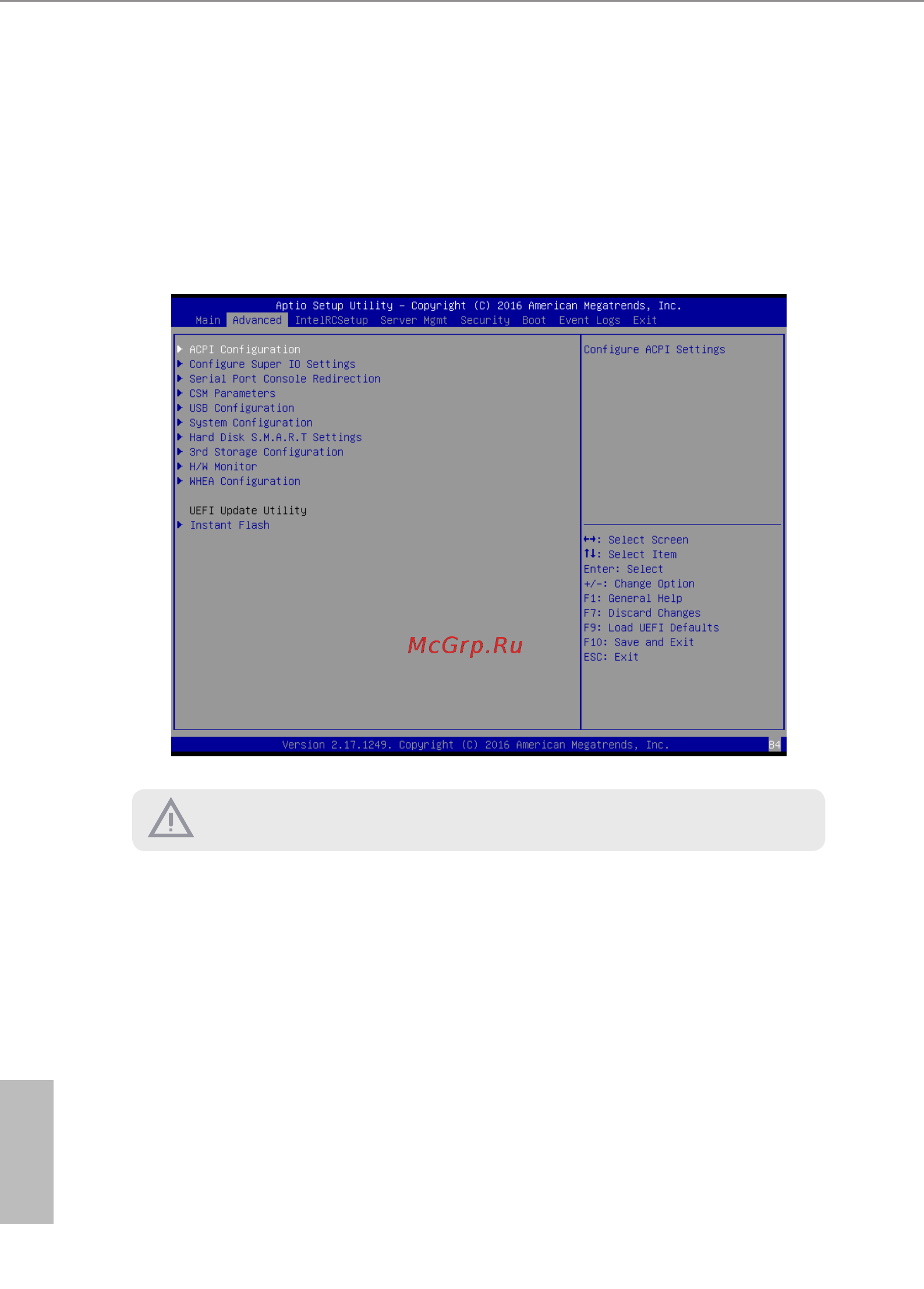

3.3 Advanced Screen
In this section, you may set the congurations for the following items: ACPI Congura-
tion, Configure Super IO Settings, Serial Port Console Redirection, CSM Parameters,
Trusted Computing, USB Conguration, USB Conguration, System Conguration, Hard
Disk S.M.A.R.T Settings, 3rd Storage Conguration, H/W Monitor, WHEA Congura-
tion and Instant Flash.
