ASRock EP2C612D24-4L [51/101] Main screen
![ASRock EP2C612D24-4L [51/101] Main screen](/views2/1694647/page51/bg33.png)
EP2C612D24 / EP2C612D24-4L
44 45
English

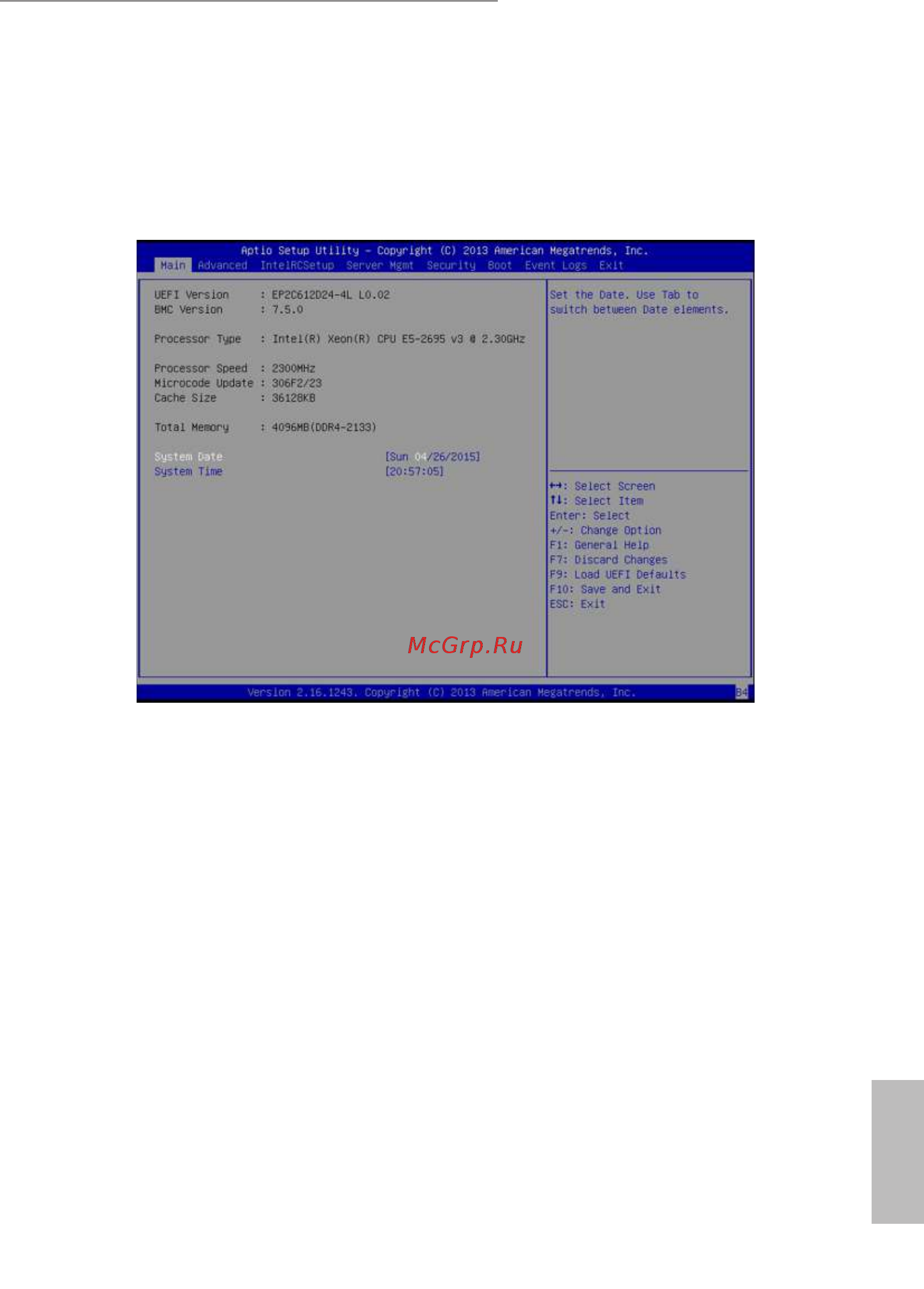

3.2 Main Screen
Once you enter the UEFI SETUP UTILITY, the Main screen will appear and display the
system overview. e Main screen provides system overview information and allows you
to set the system time and date.
