16 17
English

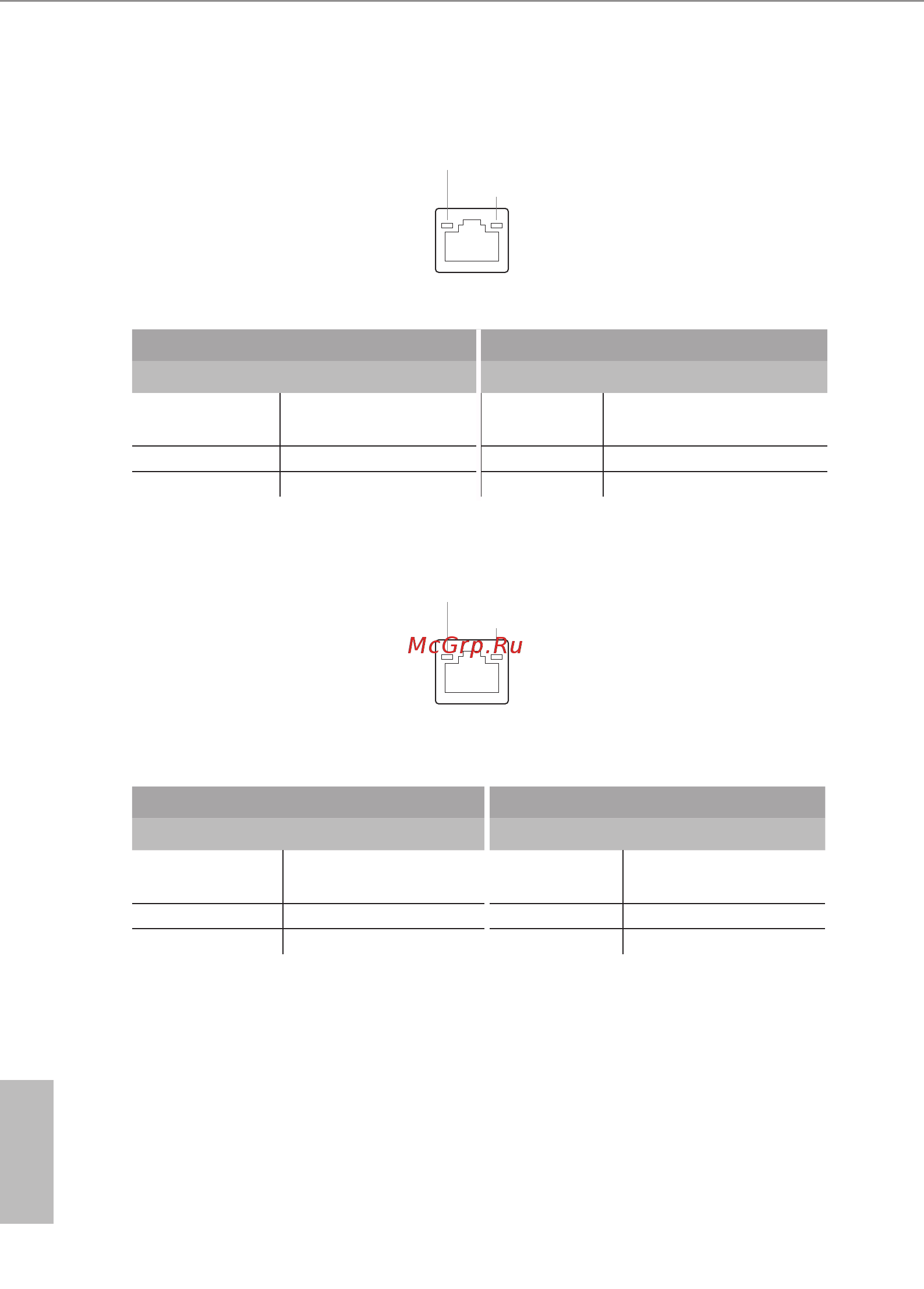

LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1Gbps connection
**ere are two LEDs on each LAN port. Please refer to the table below for the LAN port
LED indications.
LAN Port (LAN1, LAN2, or LAN1, LAN2, LAN3, LAN4) LED Indications
Speed LED Activity / Link LED
Status Description Status Description
O 10Mbps connection or
no link
O No Link
Yellow 100Mbps connection Blinking Green Data Activity
Green 1Gbps connection On Link
ACT/LINK LED
SPEED LED
LAN Port
ACT/LINK LED
SPEED LED
LAN Port
