User’s Manual of FGSD-1022 Series

5. CONSOLE MANAGEMENT

The PLANET FGSD-1022P series is equipped with a RS-232 DB9 connector as default. And both of the two models

support telnet management.

5.1 Login in the Console Interface

To configure the system via console mode, connect a serial cable to a COM port on a PC or notebook computer and to

RJ-45 type serial (console) port of the Managed Switch. The console port of the Managed Switch is DCE already, so that

you can connect the console port directly through PC without the need of Null Modem.

Please refer to chapter 3.5- Administration Console

to get more information about how to connect to the console

interface of FGSD-1022P with HyperTerminal on Microsoft Windows platform.

Once the terminal has connected to the device, power on the FGSD-1022P, the terminal will display that it is running testing

procedures.

Then, the following message asks the login password. The factory default password as following and the login screen in

Figure 5-1 appears.

Username: admin

Password: admin

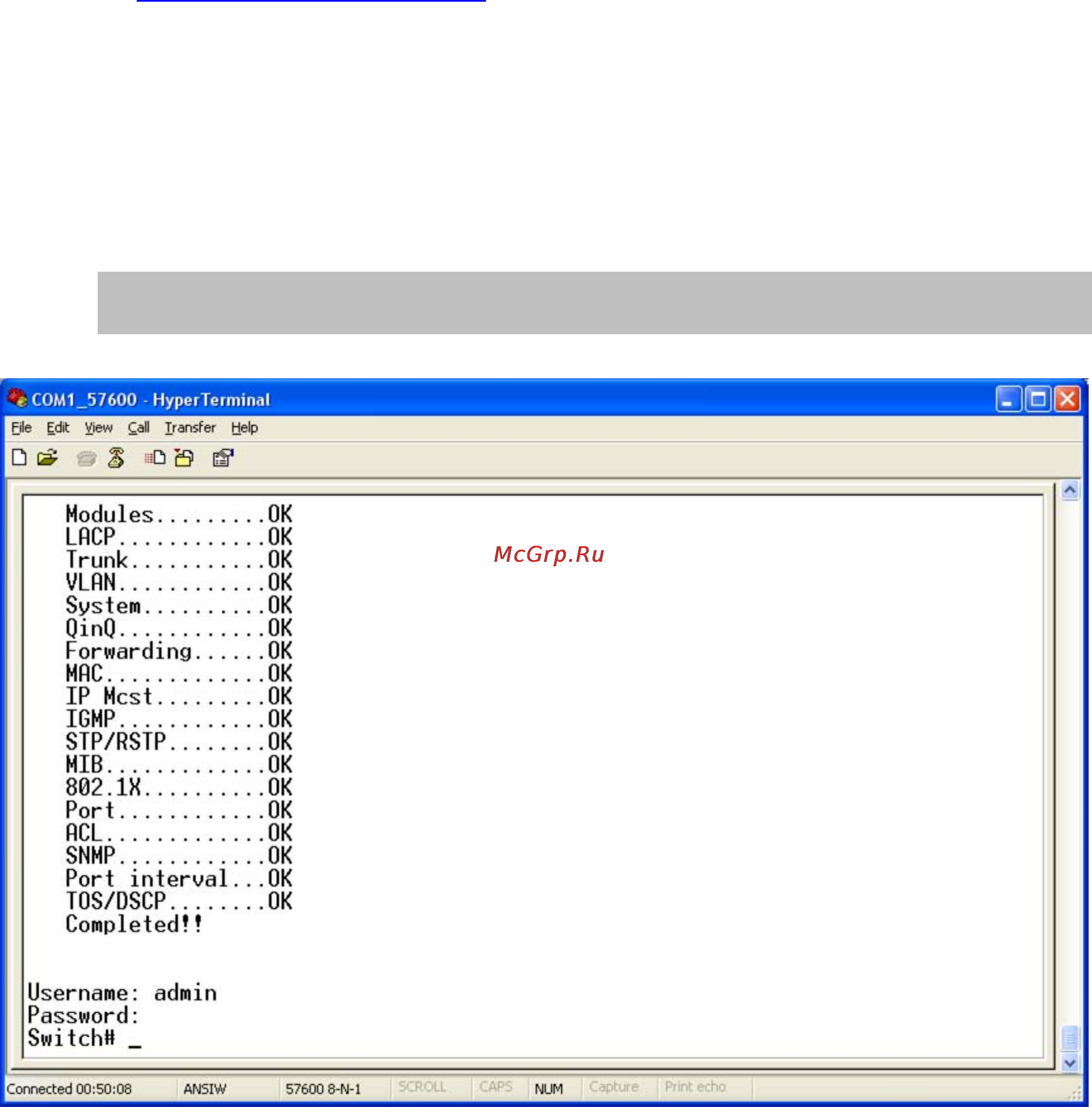

Figure 5-1: FGSD-1022P Console Login screen
