User’s Manual of FGSD-1022 Series
Reset Button Pressed and Released Function
About 1~3 second Reboot the Managed Switch
Until the PWR LED lit off
Reset the Managed Switch to Factory Default configuration.
The Managed Switch will then reboot and load the default
settings as below:
Default Password: admin
Default IP address: 192.168.0.100
Subnet mask: 255.255.255.0
Default Gateway: 192.168.0.254
2.1.2 LED Indications
The front panel LEDs indicates instant status of port links, data activity and system power; helps monitor and troubleshoot
when needed.
FGSD-1022 LED indication

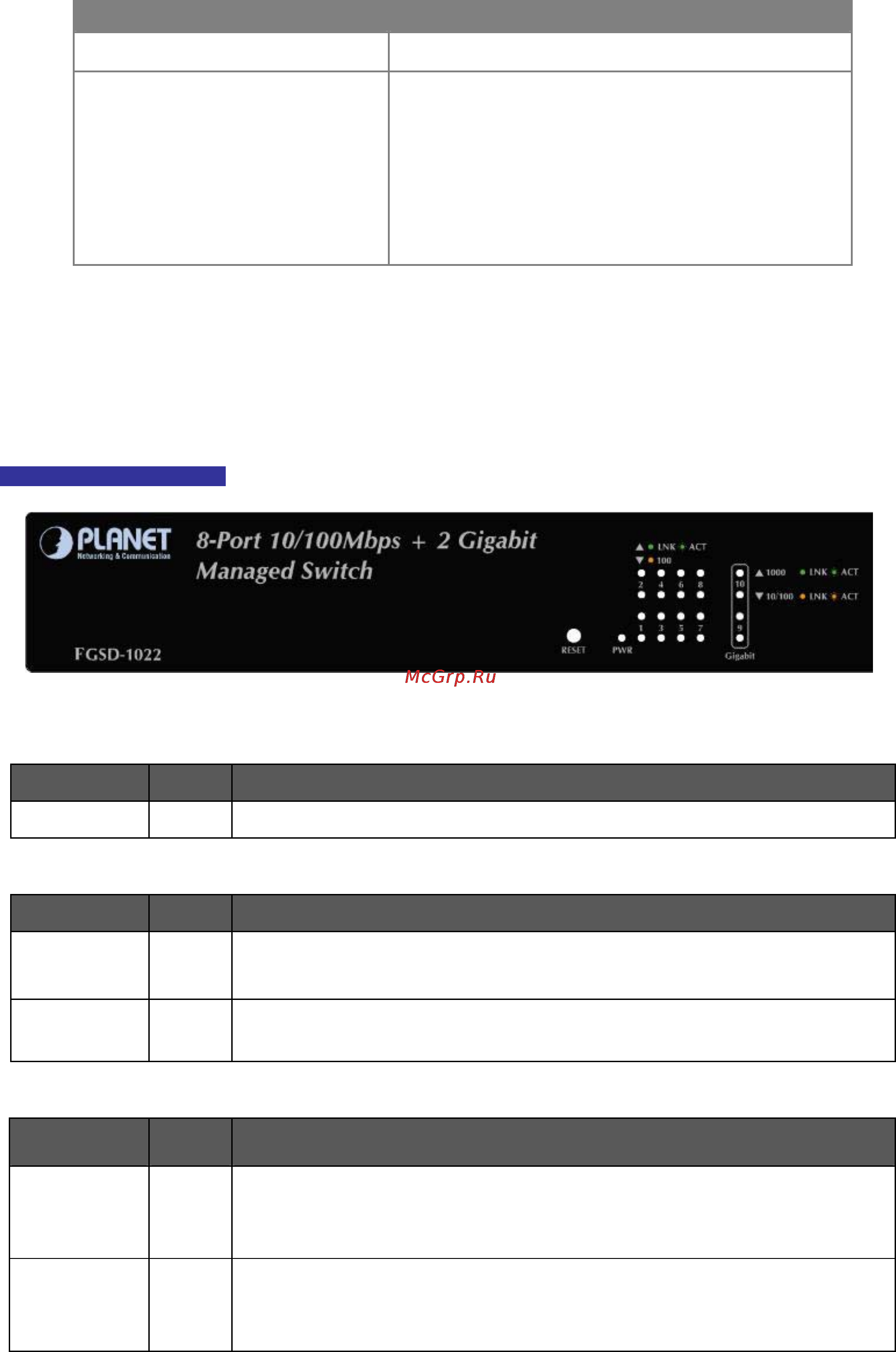

Figure 2-3: FGSD-1022 LED panel
System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
Per 10/100Base-TX RJ-45 port
LED Color Function
LNK/ACT Green
Lights to indicate the link through that port is successfully established.
Blink to indicate that the Switch is actively sending or receiving data over that port.
100 Orange
Lit: indicate that the port is operating at 100Mbps.
Off: indicate that the port is operating at 10Mbps.
Per 10/100/1000Base-T port /SFP interfaces
LED Color Function
LNK/ACT 1000 Green
Lit: indicate that the port is operating at 1000Mbps.
Off: indicate that the port is operating at 10Mbps or 100Mbps.
Blink: indicate that the Switch is actively sending or receiving data over that port.
LNK/ACT 10/100
Orange
Lit: indicate that the port is operating at 10/100Mbps.
Off: indicate that the port is operating at 1000Mbps.
Blink: indicate that the Switch is actively sending or receiving data over that port.
17
