User’s Manual of FGSD-1022 Series

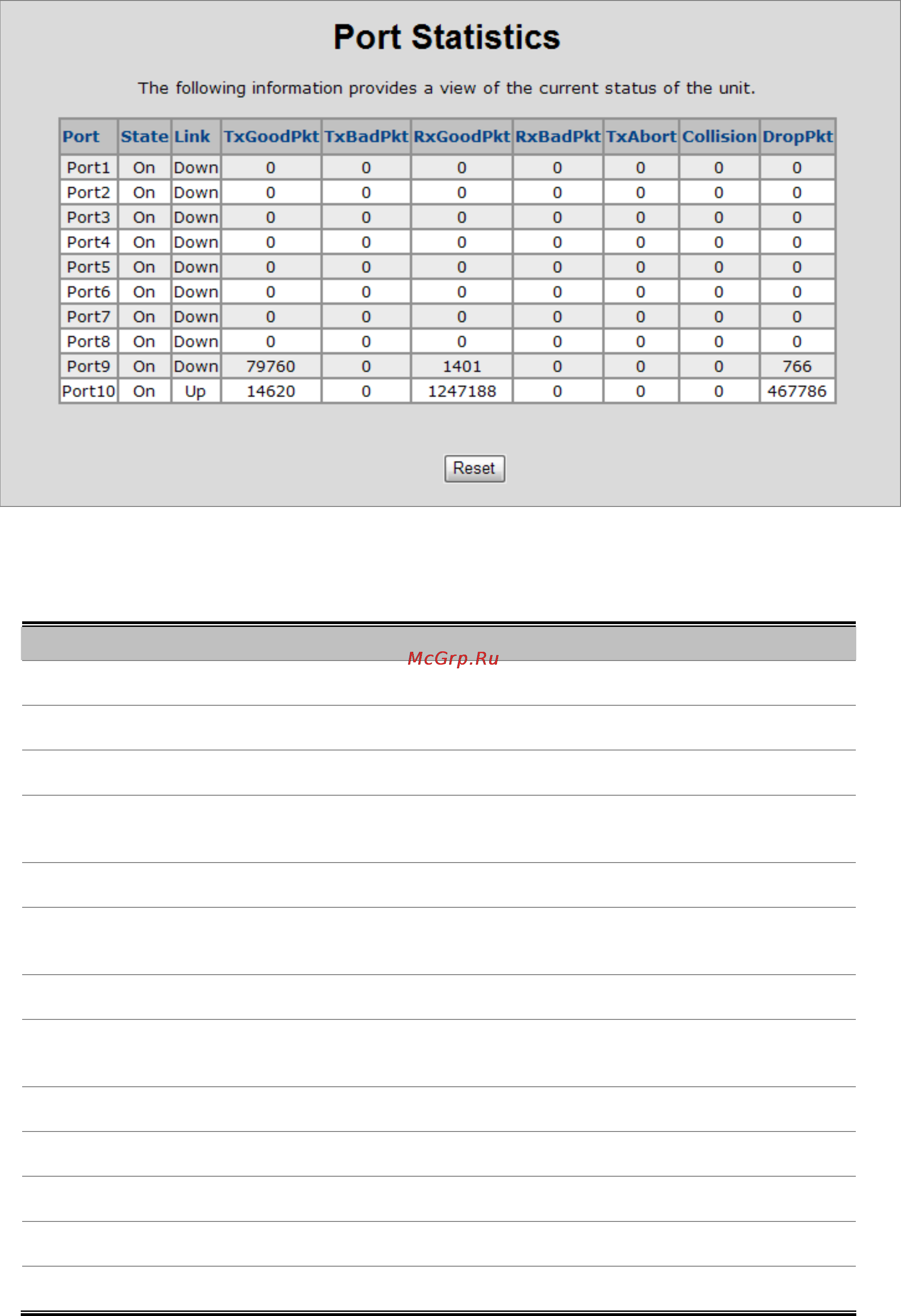

Figure 4-3-3: Port Statistics interface
The page includes the following fields:
Object Description
Port:
The port number.
Type:
Displays the current speed of connection to the port.
Link: The status of linking—‘Up’ or ‘Down’.
State:
It’s set by Port Control. When the state is disabled, the port will not transmit or
receive any packet.
Tx Good Packet:
The counts of transmitting good packets via this port.
Tx Bad Packet:
The counts of transmitting bad packets (including undersize [less than 64 octets],
oversize, CRC Align errors, fragments and jabbers packets) via this port.
Rx Good Packet:
The counts of receiving good packets via this port.
Rx Bad Packet:
The counts of receiving good packets (including undersize [less than 64 octets],
oversize, CRC error, fragments and jabbers) via this port.
Tx Abort Packet:
The aborted packet while transmitting.
Packet Collision:
The counts of collision packet.
Packet Dropped:
The counts of dropped packet.
Rx Bcast Packet:
The counts of broadcast packet.
Rx Mcast Packet:
The counts of multicast packet.
