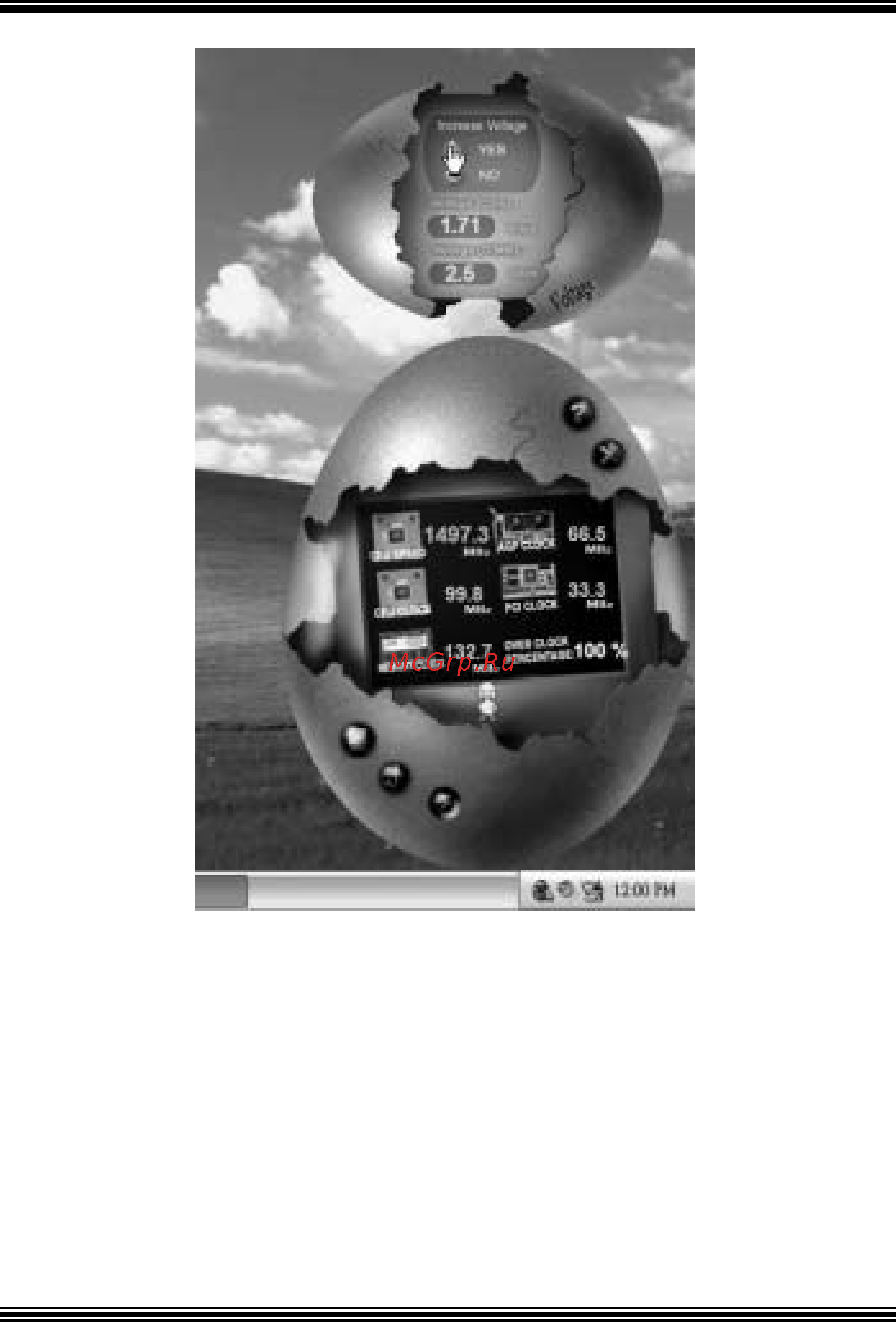

4. Overclock Panel

Click the Ov erclock button in Main Panel, the button will be highlighted and the Overclock

Panel will slide out to left as the f ollowing figure.
