Troubleshooting by Remote Controller SiE39-407
172 Troubleshooting

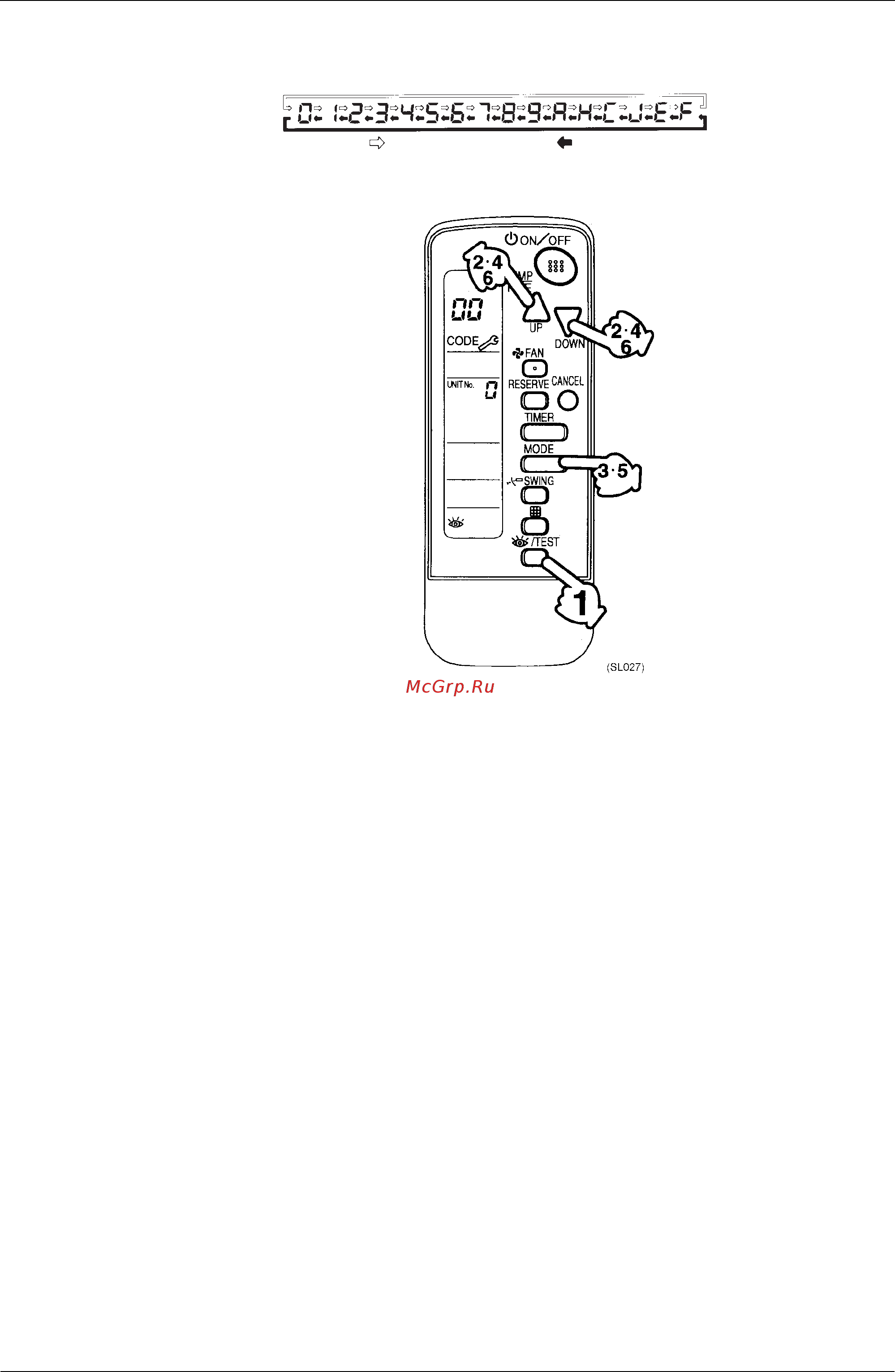

The lower digit of the code changes as shown below when the UP and DOWN buttons are
pressed.
“Advance” button “Backward” button
(SE007)
