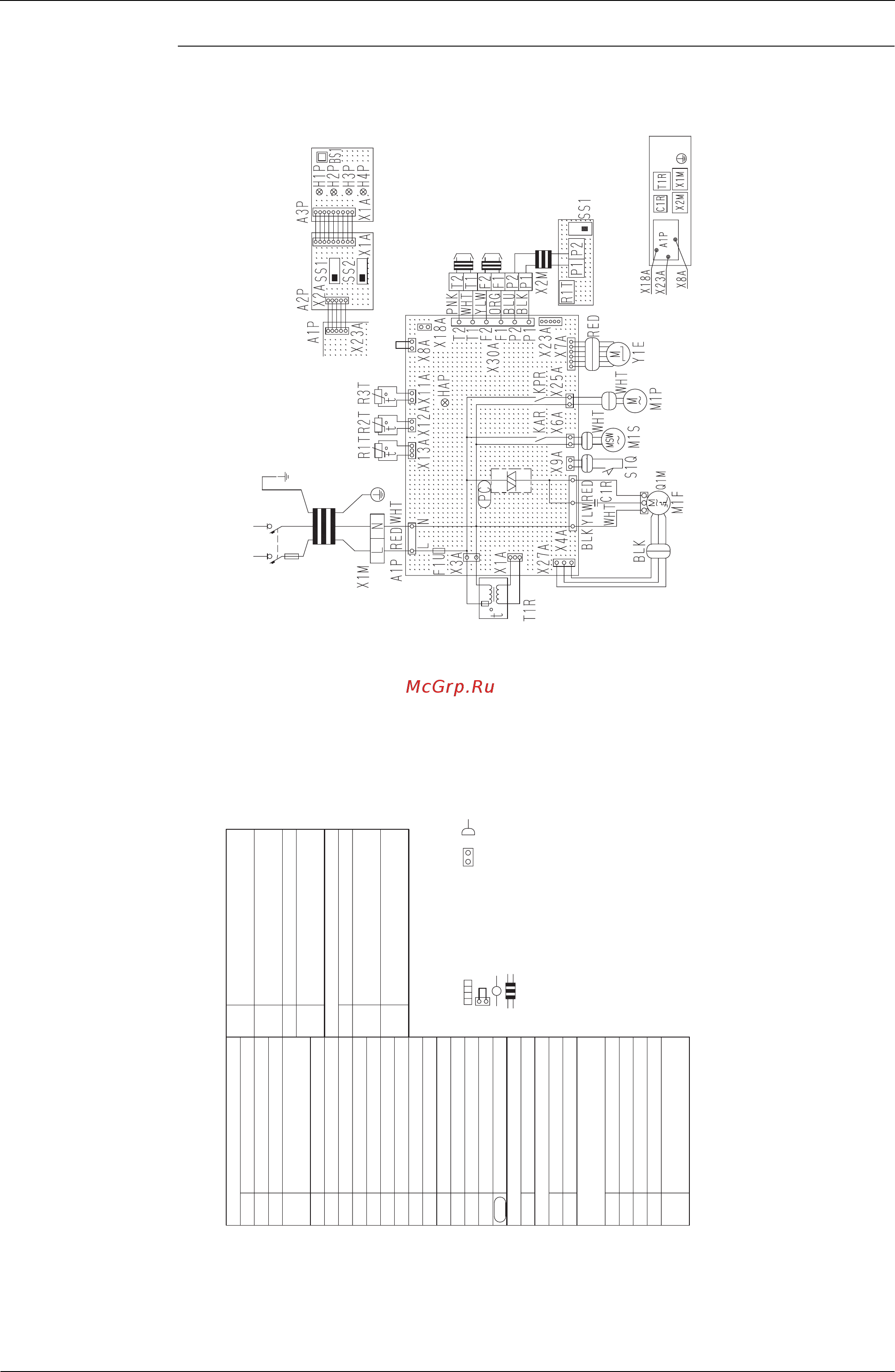

Wiring Diagrams for Reference SiE39-407
292 Appendix
FXHQ32M / 63M / 100MVE
3D039801C
A1P
C1R
F1U
HAP
KAR
KPR
M1F
M1S
Q1M
R1T
R2T
R3T
S1Q
T1R
X1M
X2M
Y1E
PC
M1P
R1T
SS1
A2P
A3P
BS1
H1P
H2P
Printed circuit board
Capacitor (M1F)
Fuse (훾, 5A, 250V)
Light emitting diode
(Service monitor-green)
Magnetic relay (M1S)
Magnetic relay (M1P)
Motor (Indoor fan)
Motor (Swing flap)
Thermo switch (M1F embedded)
Thermistor (Air)
Thermistor (Coil liquid)
Thermistor (Coil gas)
Limit switch (Swing flap)
Transformer (220-240V/22V)
Terminal block (Power)
Terminal block (Control)
Electronic expansion valve
Phase control circuit
Motor (Drain pump)
Thermistor (Air)
Selector Switch (Main/sub)
Printed circuit board
Printed circuit board
Push button (On/off)
Light emitting diode (On-red)
Light emitting diode
(Timer-green)
H3P
H4P
SS1
SS2
X8A
X18A
X23A
Light emitting diode
(Filter
sign-red)
Light emitting diode
(Defrost-orange)
Selector switch (Main/sub)
Selector switch
(Wireless address set)
Connector (Float switch)
Connector (Wiring adaptor for
electrical appendices)
Connector (infrared remote
control)
Indoor unit
Optional parts
Wired remote control
Receiver/Display unit (Attached to
infrared remote control)
POWER SUPPLY
220-240V
~
50Hz
220V
~
60Hz
Notes:
1. : Terminal block, , : Connector,
: Short circuit connector
: Terminal
2. : Field wiring
3. In case using central remote control, connect it to the unit in
accordance with the attached instruction manual.
4. X23A is connected when the infrared remote control kit is being used.
5. When connecting the input wires from outside, forced off or on/off
control operation can be selected by remote control. In details, refer
to the installation manual att
ached the unit.
6. In case installing the drain pump, remove the short circuit connector
of X8A and execute the additional wiring for float switch and drain
pump.
7. Symbols shows as follows: PNK: pink, WHT: white, YLW: yellow,
ORG: orange, BLU: blue, BLK: black, RED: red.
8. Use copper conductors only.
Note 5
Input from outside
Note 3
Transmission wiring
central remote control
Wired remote control
(Optional acce
ssory)
Electric parts box
Note 6
Note 4
Receiver/display unit
(Infrared remote control)
Connector for optional parts
