Daikin RXYQ10MAY1 [80/352] Cooling oil return operation
![Daikin RXYQ10MAY1 [80/352] Cooling oil return operation](/views2/1712502/page80/bg50.png)

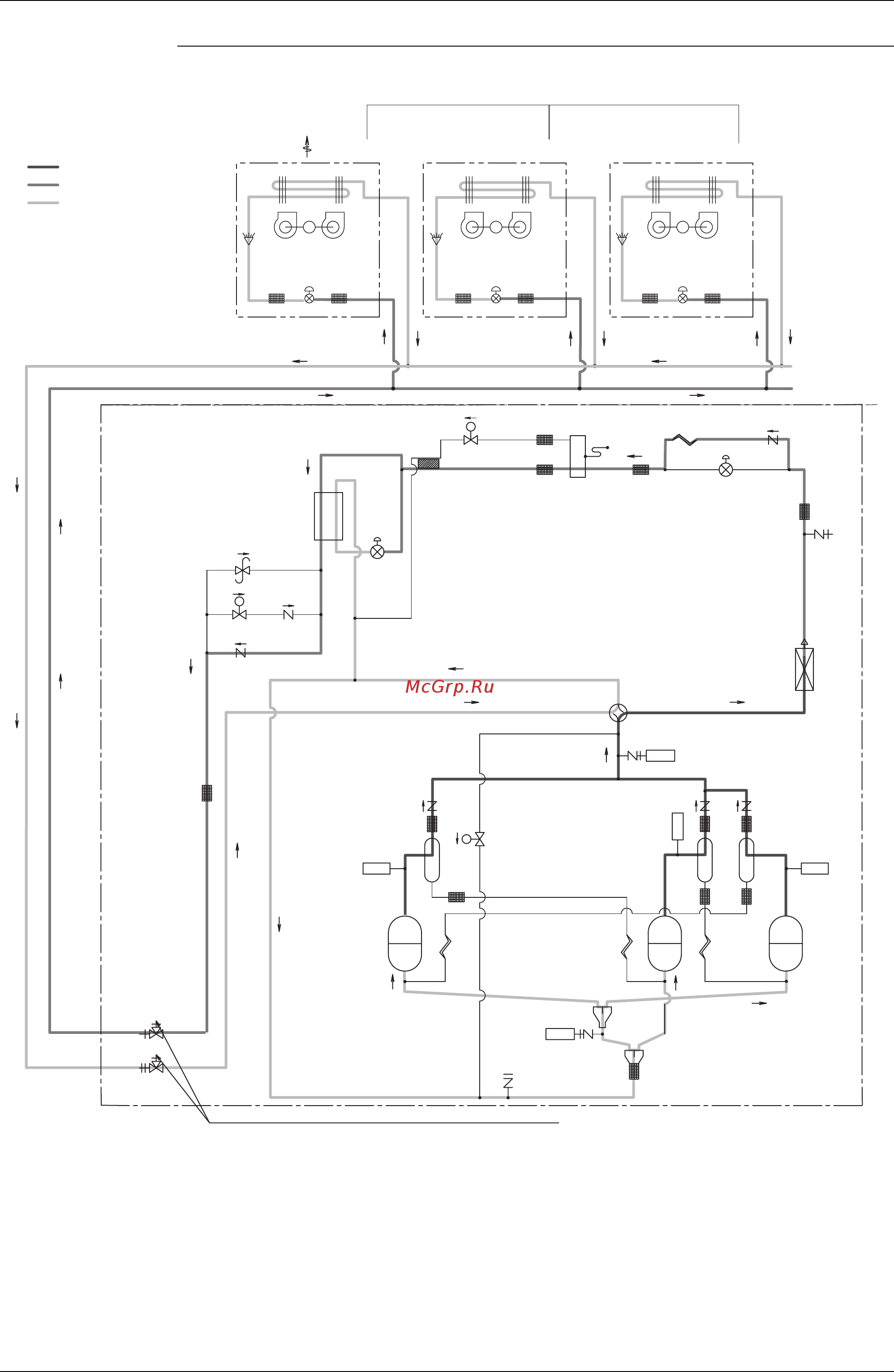

SiE39-407 Refrigerant Flow for Each Operation Mode
Refirgerant Circuit 69
Cooling Oil Return Operation
" OFF " " ON "" ON "
MM
SENPH
SENPL
HPS
HPS
HPS
STD1 STD2
INV
EV:200pls EV:200pls
FanFan
Indoor unit operation
Thermostat "OFF"
Indoor unit
FilterFilter
Heat exchanger
Fan OFF Fan OFF
Indoor unit
FilterFilter
Heat exchanger
Fan ON
Thermostat "ON"
Indoor unit
Heat exchanger
Electronic expansion valve
FilterFilter
Fan
Heat exchanger
pipe
Receiver
Solenoid
valve
Solenoid
valve
Check
valve
Check
valve
Check
valve
Check
valve
Check
valve
Solenoid
valve
Check
valve
Filter
Filter
Filter
Filter
Filter
Filter
Filter
FilterFilter
FilterFilter
Electronic expansion valve
Electronic
expansion
valve
Fusible plug
Capillary tube
Electronic expansion valve Electronic expansion valve
Pressure regulating
valve
(check valve type)
High pressure
switch
High
pressure
switch
High
pressure
switch
Compressor Compressor
Gauge port
Oil separator
Oil separator
Oil separator
Capillary tube
Compressor
Capillary tube
4-way valve
High pressure
sensor
Low pressure
sensor
Stop valve (with service port on on-site piping side ø7.9 flare connection)
Capillary tube
"High temperature, high pressure gas"
"High temperature, high pressure liquid"
"Low temperature, low pressure"
EV:Nomal
control
M
SV
SV
SV
