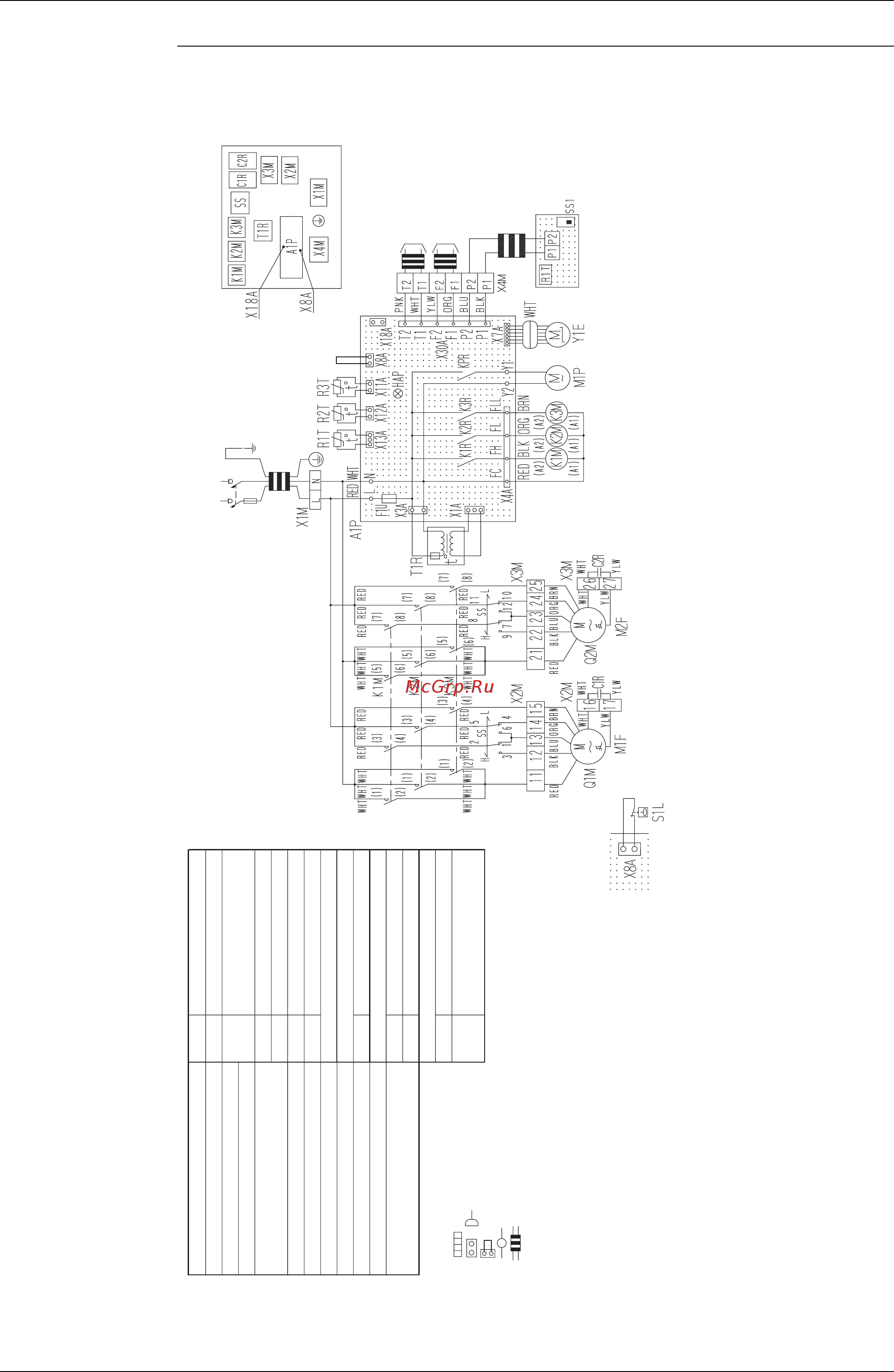

SiE39-407 Wiring Diagrams for Reference
Appendix 291
FXMQ200M / 250MVE
A1P
C1R•C2R
F1U
HAP
K1M
K2M
K3M
K1R-K3R
KPR
M1F•M2F
Q1M•Q2M
Printed circuit board
Capacitor (M1F • 2F)
Fuse (훾, 5A, 250V)
Light emitting diode
(Service monitor-green)
Magnetic contactor (M1F • 2F)
Magnetic contactor (M1F • 2F)
Magnetic contactor (M1F • 2F)
Magnetic relay (M1F • 2F)
Magnetic relay (M1P)
Motor (Indoor fan)
Thermo switch
(M1F • 2F embedded)
Indoor unit
R1T
R2T•R3T
SS
T1R
X1M
X2M-X3M
X4M
Y1E
M1P
R1T
SS1
X8A
X18A
Thermistor (Air)
Thermistor (Coil)
Selector switch
(Static pressure)
Transformer (220-240V/22V)
Terminal block (Power)
Terminal block
Terminal block (Control)
Electronic expansion valve
Motor (Drain pump)
Thermistor (Air)
Selector switch (Main/sub)
Connector (Float switch)
Connector (Wiring adaptor for
electorical appendices)
Optional parts
Wired remote control
Connector for optional parts
POWER SUPPLY
Note 5
220-240V
~
50Hz
220V
~
60Hz
Notes:
1. : Terminal block
, : Connector
: Short circuit connector
: Terminal
2. : Field wiring
3. In case using central remote control, connect it to the unit in accordance with
the attached instruction manual.
4. When connecting the input wires from outside, forced off or on/off control
operation can be selected by remote control. In details, refer to the installation
manual attached the unit.
5. In case installing the drain pump, remove the short circuit
connector of X8
A and execute the additional wiring for float
switch and drain pump.
6. Symbols shows as follows: PNK: pink, WHT: white, YLW: yellow,
ORG: orange, BLU: blue, BLK: black, RED: red, BRN: brown.
7. In case high E.S.P. operation, change the switch(ss) for “H”.
Note 4
Input from outside
Note 3
Transmission wiring
central remote control
Wired remote control
(Optional accessory)
Electric parts box
3D039621A
