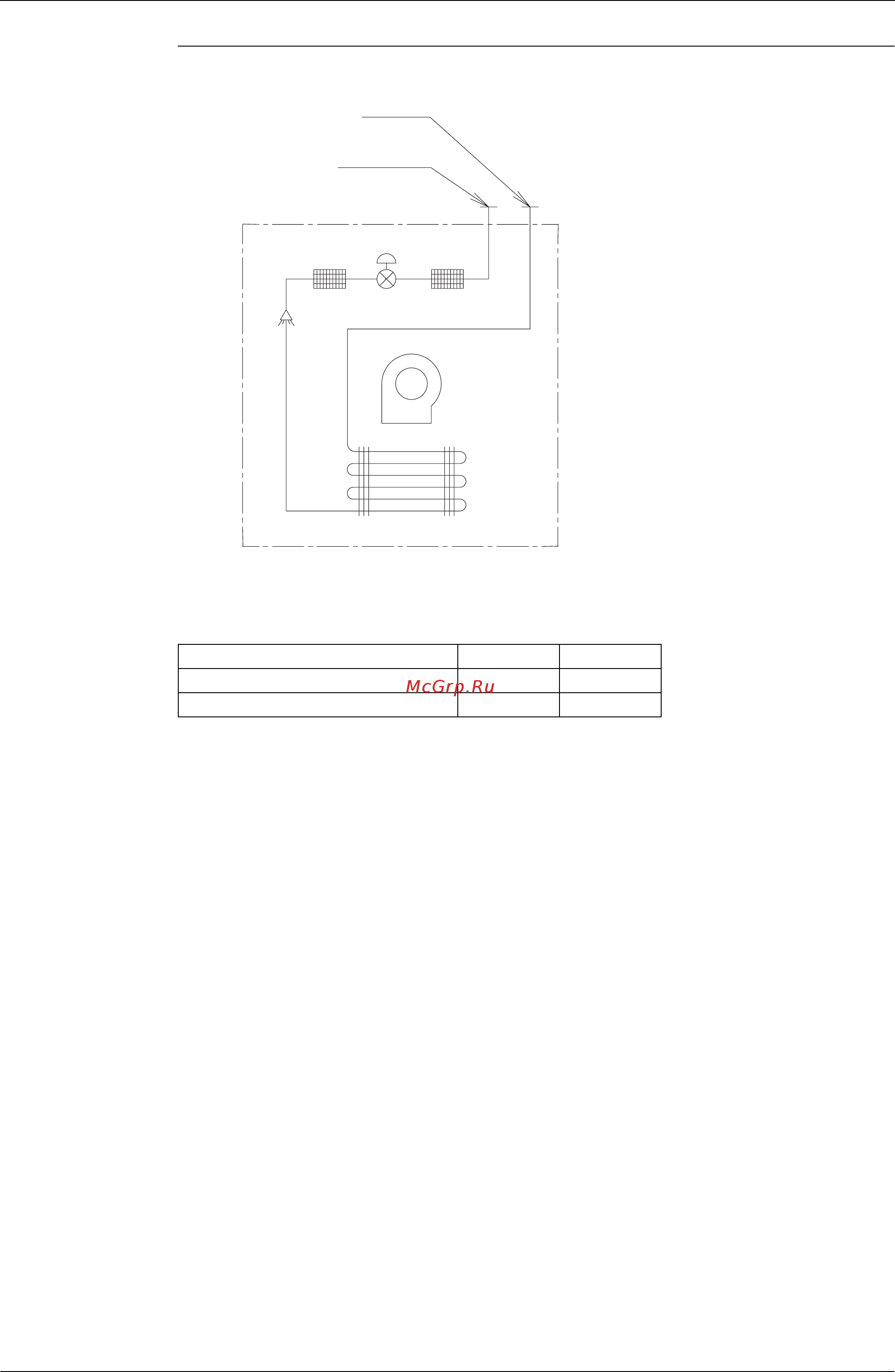

Piping Diagrams SiE39-407
272 Appendix
FXDQ
Refrigerant pipe connection port diameters
4D043864B
Indoor heat exchanger
Fan
Filter Filter
Electronic
expansion valve
Gas side
Liquid side
(mm)
Model Gas Liquid
FXDQ20N / 25N / 32N / 40N / 50NVE φ12.7 φ6.4
FXDQ63NVE φ15.9 φ9.5
