Planet IVS-H120 [9/91] Physical description

2.2 Physical Description

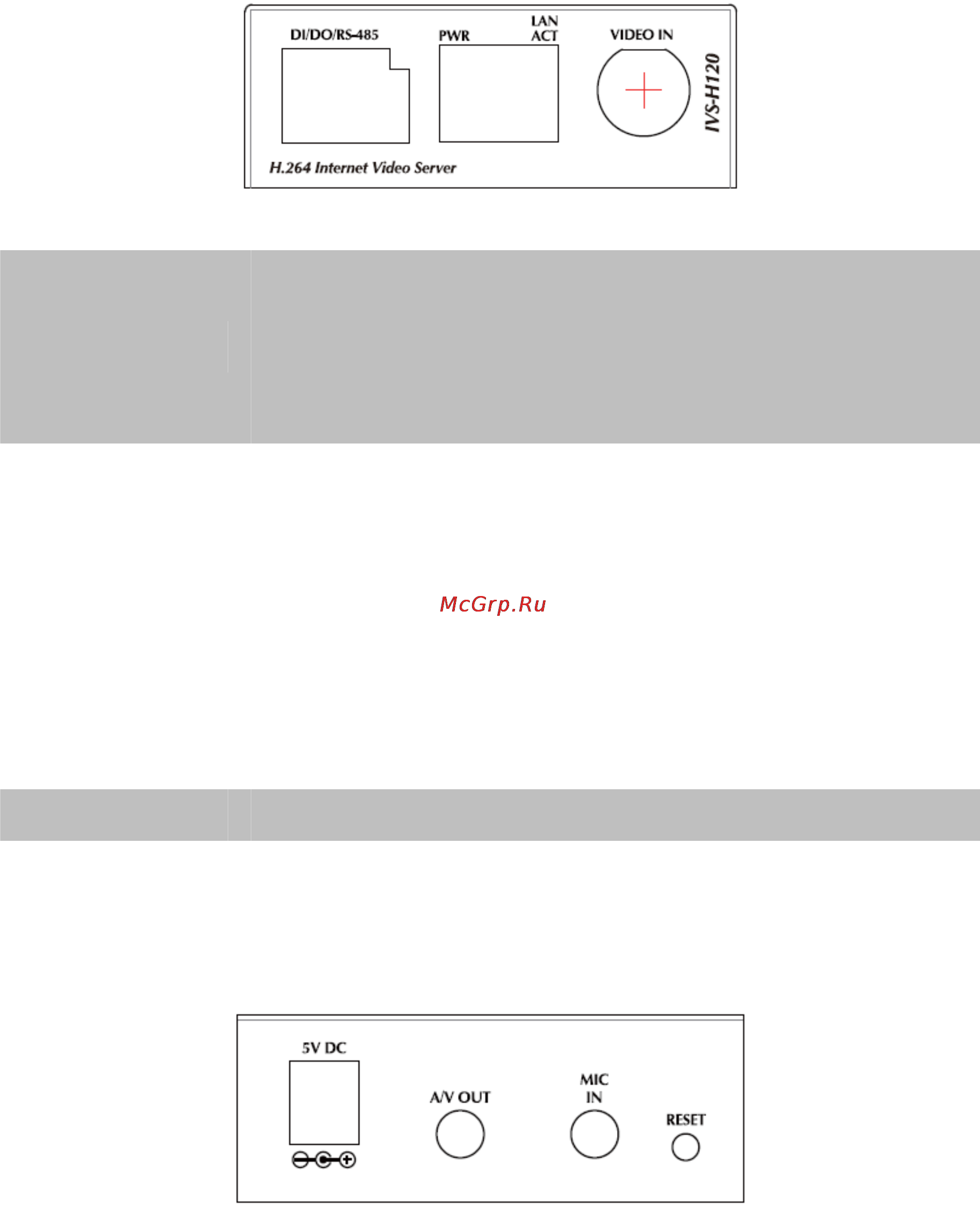

2.2.1 Left-hand side Panel

DI/DO/RS-485

This IVS-H120 provides a general I/O terminal block with one digital input

and one output for device control. It has 6 Pins that from left to right that are

5V DC power supply (50mA maximum), Alarm Input, GND, Alarm Output,

D+ terminal of RS-485 and D- terminal of RS-485.

NOTE: The RS-485 of IVS-H120 is master that can control external scanner

or PTZ camera.

RJ-45

Connects to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This

Ethernet port built N-Way protocol can detect or negotiate the transmission

speed of the network automatically. Please use Category 5 cable to connect

the Network Camera to a 100Mbps Fast Ethernet network switch or hub.

In the LAN socket, there are two LED embedded:

LAN LED (green color)

This LED will be flashing while network accessing via Ethernet.

Power LED (orange color)

This LED is used to indicate whether DC power is on or not. In addition, this

LED will be flashing while network accessing via Ethernet.

Video In You can install an analog camera and connect it to video-in jack.

2.2.1 Right-hand side Panel
