Afterthesiterequirementshavebeenveried,thechassismaybeinstalledatthe
specied location. When mounting the chassis, practice good safety habits. Use
two or more people to secure the chassis. Relay rack mounting normally requires
at least two people.
Step Action
1
Locate the chassis and obtain the appropriate chassis mounting
hardware.
2
Determine and obtain the tools required for the chassis mounting
hardware.
3
From the front of the relay rack, position the chassis in its relay rack
mounting location.
4
Using the appropriate rack mounting hardware, secure the chassis in its
relay location on both left and right side of mounting bracket.
Note
The chassis should be empty during the chassis mounting proce-
dures. Remove any unit in the chassis, and store them according to
static-sensitive device storage procedures.
Warning
Hazardous voltages may exist on the chassis. Always practice good
safety habits when wiring a live circuit or performing maintenance.
For 23’ Rack
For 19’ Rack

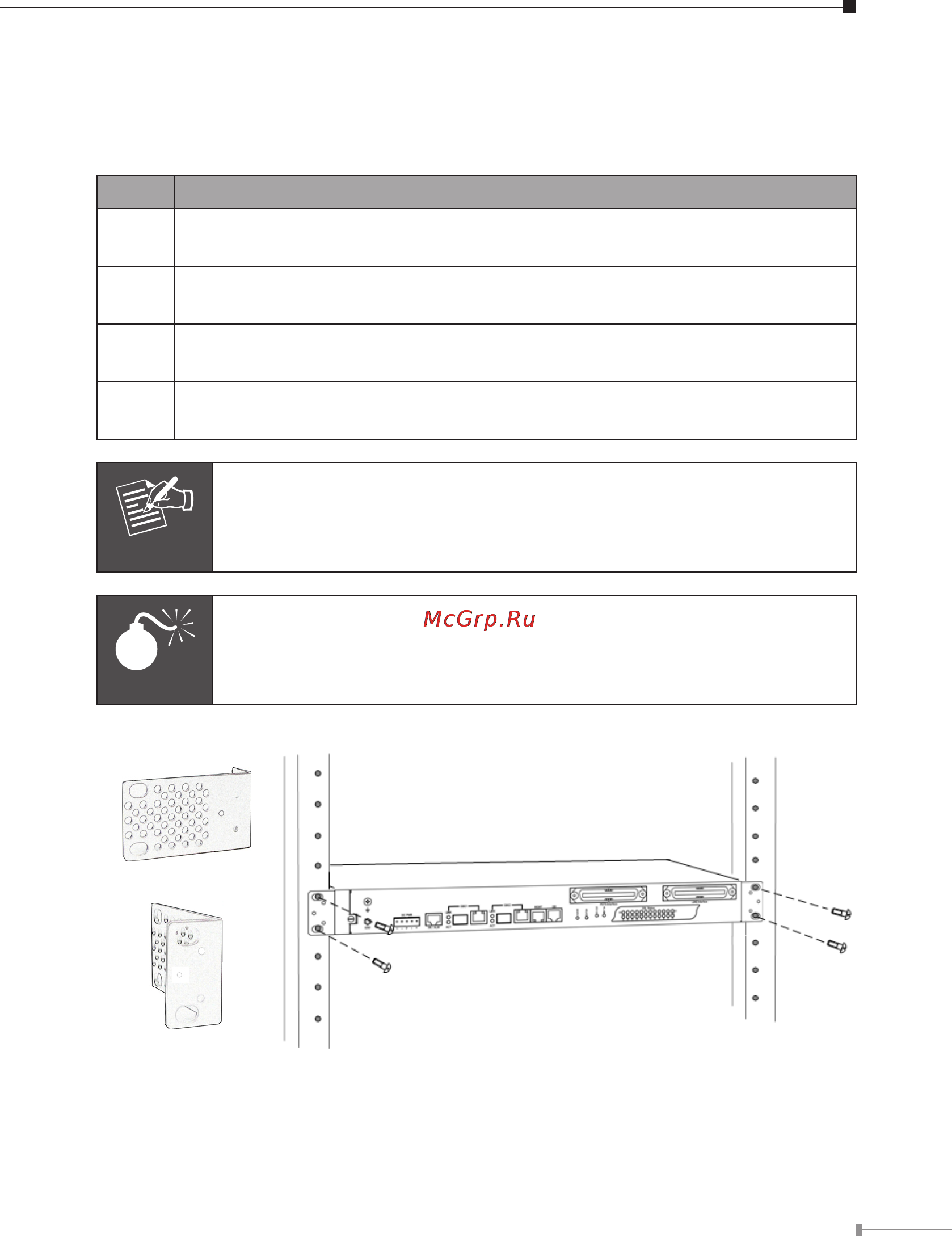

Mounting Bracket Position for Standard Mount (VC-2402-48 shown)
