27
2.3 Controls and LED Indication
The VC-2402 has simple controls and indicators on its front panel. The indicators
show the current operating states of various system elements and serve as
maintenance aids for local technicians at each site. The remaining controls on the
cards are also provided for local system testing and maintenance.
In general there are following LED modes:
OFF: The LED is not powered.
ON: The LED is powered up constantly.
BLINK: Alternating between OFF and ON.
Fast-BLINK: Blinking at estimated frequency of 650 ms per on/off cycle
Slow-BLINK: Blinking at estimated frequency of 2700 ms per on/off cycle
SCAN: The LEDs ON/OFF in sequence.

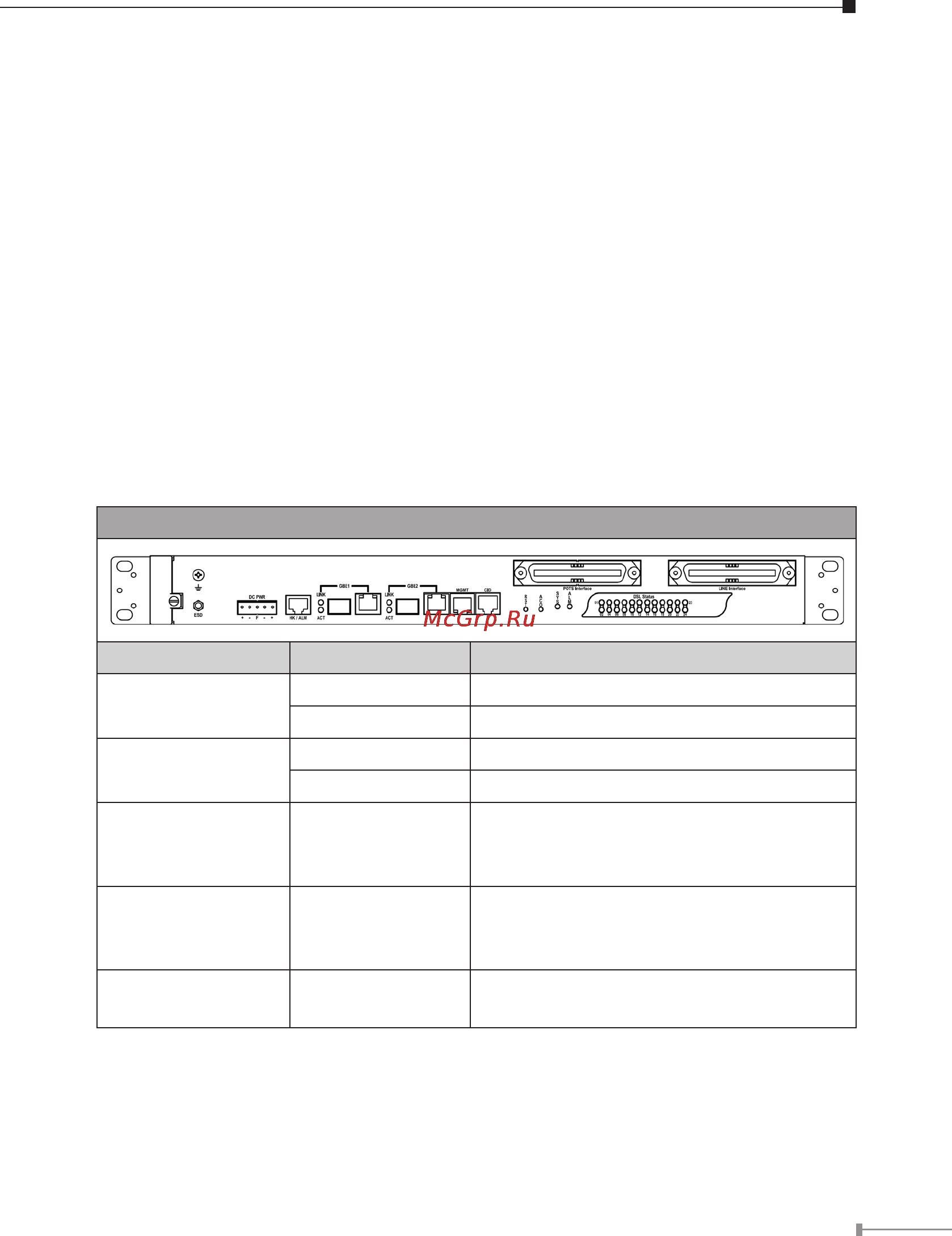

VC-2402 Controls and LED Indication
VC-2402 Front Panel
LED Color Indication / Condition
SFP1 - LINK
SFP2 - LINK
Green - On Valid network connection established
Off Disconnection
SFP1- ACT
SFP2- ACT
Green - Blink Transmitting or receiving data
Off Disconnection
GBE1- Speed
GBE2- Speed
(LED B on RJ-45)
Orange
Off
100 / 1000 Mbps
10 Mbps
GBE1-Link/Act
GBE2-Link/Act
(LED A on RJ-45)
Green - On
Off
Green - Blink
Valid network connection established
Inactive
Transmitting or receiving data
MGMT- Speed
(LED B on RJ-45)
Orange
Off
100 Mbps
10 Mbps
