17

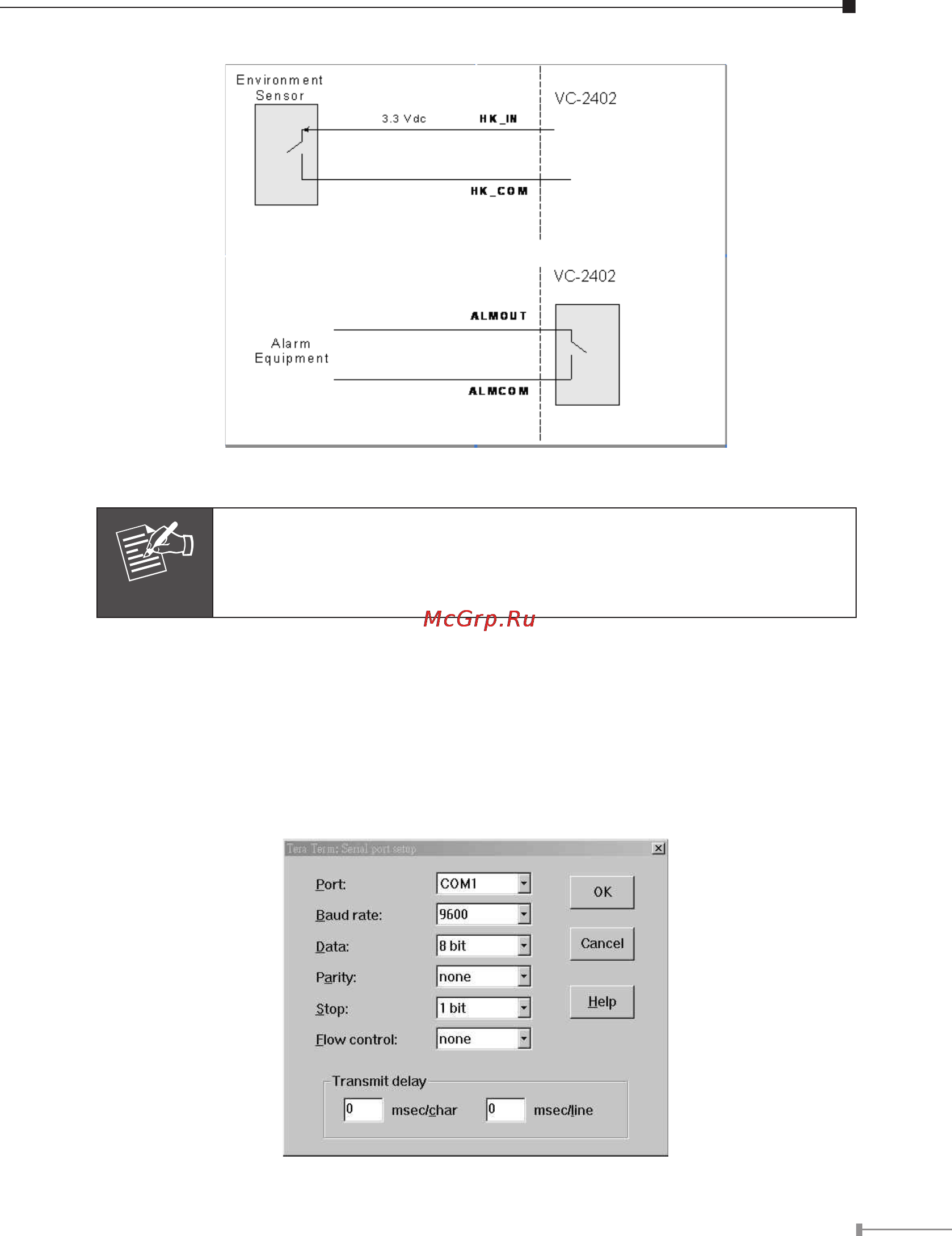

Operation diagram of Housekeeping Inputs and Alarm Contact Output
Note
The maximum current and voltage for ALMOUT / ALMCOM is
restricted to 0.5 A 30 VDC or 0.15 A 125 VAC (resistive load).
1.3 Provisioning a Management IP port
This section describes how to use CLI commands or Web GUI to provision an IP
port for the VC-2402. Referring to the previous section, use a console cable to
connect a host PC and the VC-2402 through its console port (COM). Then on PC
run the terminal program with the setting shown below:
