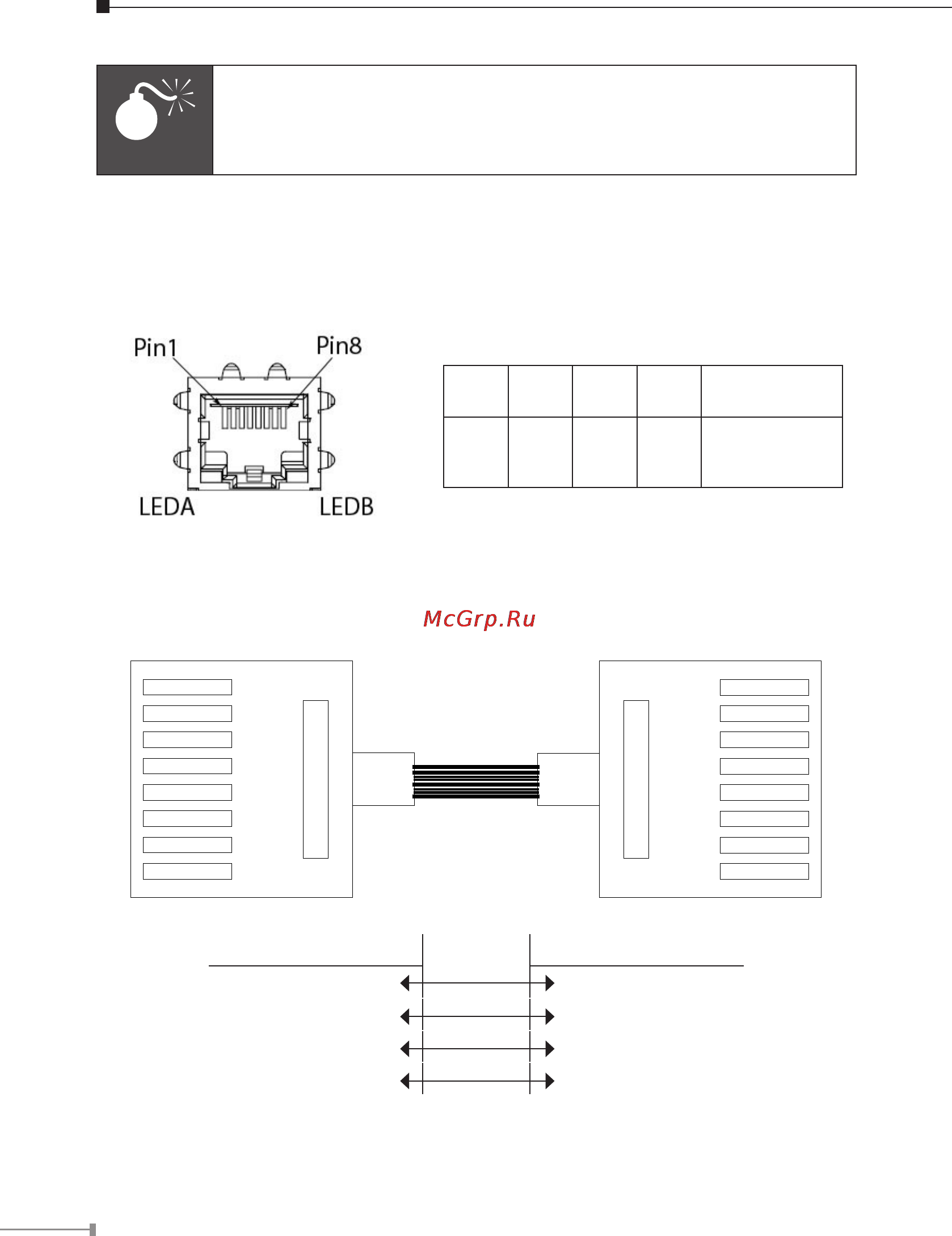

![Planet VC-2402-48 [15/35] Ethernet port mgmt](/views2/1071634/page15/bgf.png)
14
Warning
Never look directly at the transmitting ports of optical interface that
might be emitting laser, in order to prevent damage to the eye
from the laser radiation.
1.2.7 Ethernet Port (MGMT)
The VC-2402 provides one RJ45 Jack (MGMT) on the front panel for Ethernet
interface connection. The detailed pin assignment is shown in the following gure
and table.
1 2 3 6 Other pins
TX
+
TX
-
RX
+
RX
-
Bob Smith
Termination
Ethernet Port RJ-45 pin assignment
To connect the Ethernet interface to PC, the Ethernet crossover cable is required.
The detailed pin assignment is shown below.
Brown 1
Green/White 8
Green 7
Orange/White 6
Blue 5
Blue/White 4
Orange 3
Brown/White 2
8 Green/White
1 Orange
2 Orange/White
3 Bro wn
4 Blue/White
5 Blue
6 Brown /White
7 G reen
Name Pin Pin Name
Tx+ 1 3 Rx+
Tx- 2 6 Rx-
Rx+ 3 1 Tx+
Rx- 6 2 Tx-
