Planet VC-2402-48 [30/35] Cleaning units

2.4 Cleaning Units

This section provides procedures on how to:

cleantheairltereverythreemonths

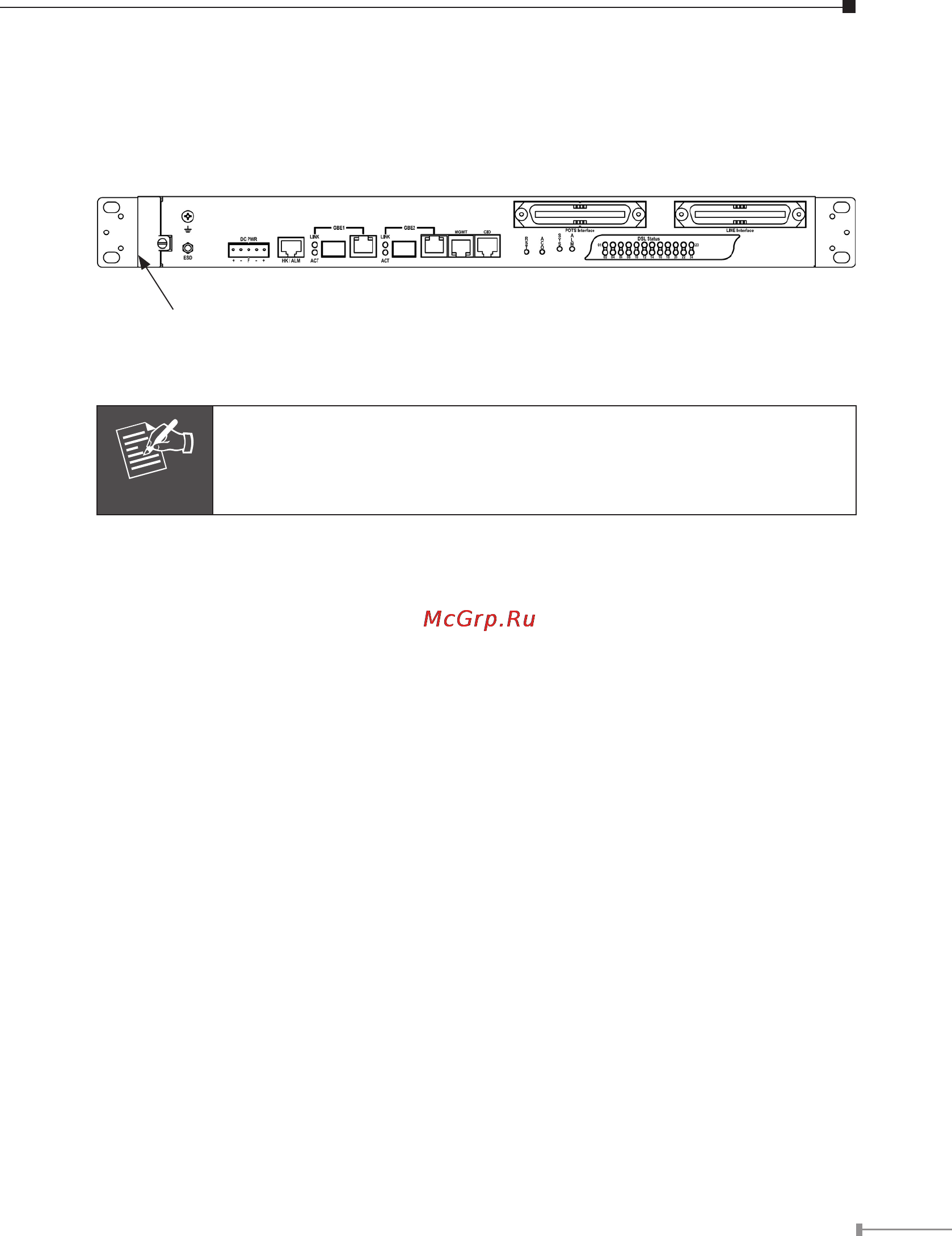

Air Filter Panel

Procedure Clean the Air Filter

Note

You must loosen the connection of the Air Filter Panel to the DSLAM

and pull out the Air Filter before cleaning the air filter.

1 Put on the antistatic wrist strap and connect it to a grounding point.

2 Turn the screw on the Air Filter Panel counterclockwise until it loosens the

connection of the panel to the DSLAM. Remove the Air Filter Panel.

3 PulltheairlteroutoftheDSLAM.

4 SlidethecleanairlterintotheairlterslotoftheDSLAM.

5 Reinstall the Air Filter Panel.
