15

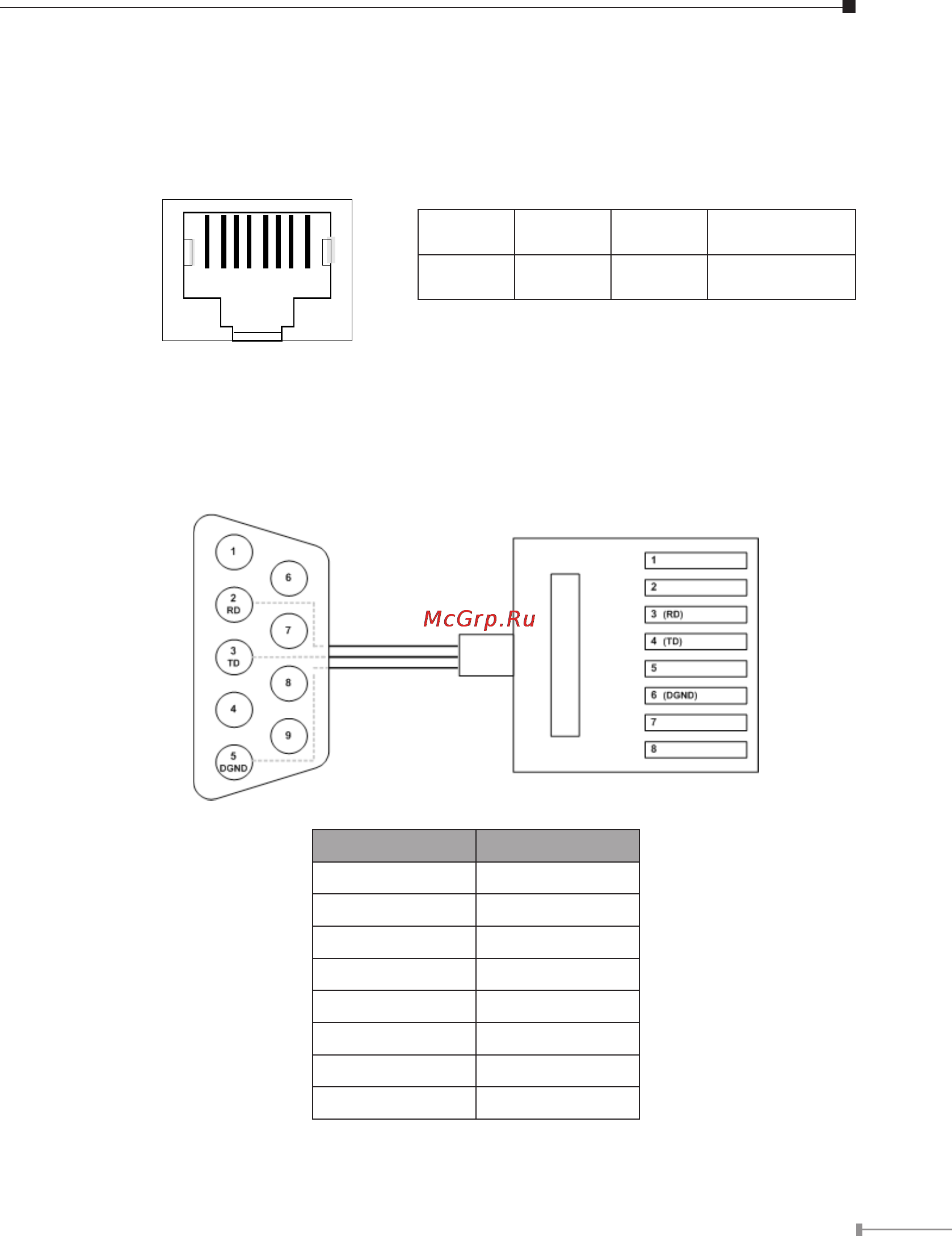

1.2.8 Console Port (CID)
The Console interface (CID) on the front panel is the main control interface of the
VC-2402. The RJ45 connector pin assignment is illustrated below:
1 2 3 4 5 6 7 8
3 4 6 Other pins
TX RX GND unused
Console Port RJ-45 pin assignment
To connect the host PC to the console port, a RJ45 (male) connector-to-RS232 DB9
(female) connector cable is required. The RJ45 connector of the cable is connected
to the CID port of the DSLAM; the DB9 connector of the cable is connected to the
PC COM port. The pin assignment of the console cable is shown below:
DB-9F RJ-45M Pin
1
2
Pin 2 RD 3
Pin 3 TD 4
5
Pin 5 DGND 6
7
8
Pin Assignment of Console Cable
