Planet VRT-401 [10/125] Requirements
![Planet VRT-401 [10/125] Requirements](/views2/1071659/page10/bga.png)
6
Chapter 2
Installation
This Chapter covers the physical installation of VRT-401.
Requirements
· Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45
connectors.
· TCP/IP protocol must be installed on all PCs.
· For Internet Access, an Internet Access account with an ISP, and either of a DSL
or Cable modem (for WAN port usage)
Procedure

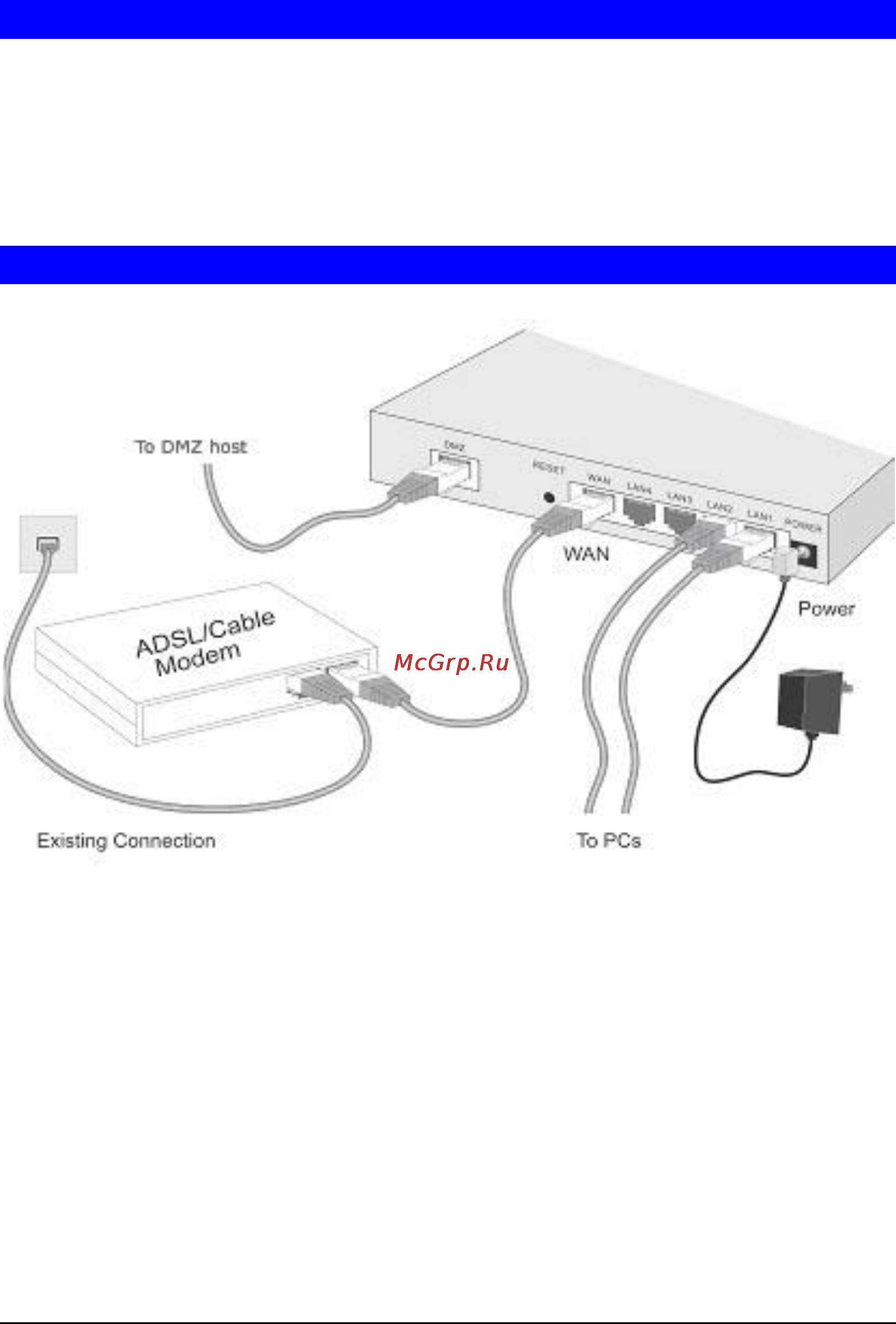

Figure 4: Installation Diagram
1. Choose an Installation Site
Select a suitable place on the network to install VRT-401.
Ensure VRT-401 and the DSL/Cable modem are powered OFF.
2. Connect LAN Cables
· Use standard LAN cables to connect PCs to the Switching Hub ports on VRT-401.
Both 10BaseT and 100BaseT connections can be used simultaneously.
· If required, you can connect any LAN port to another Hub. Any LAN port on VRT-
401 will automatically function as an "Uplink" port when required. Just connect any
LAN port to a normal port on the other hub, using a standard LAN cable.
