VRT-401 User Manual
26

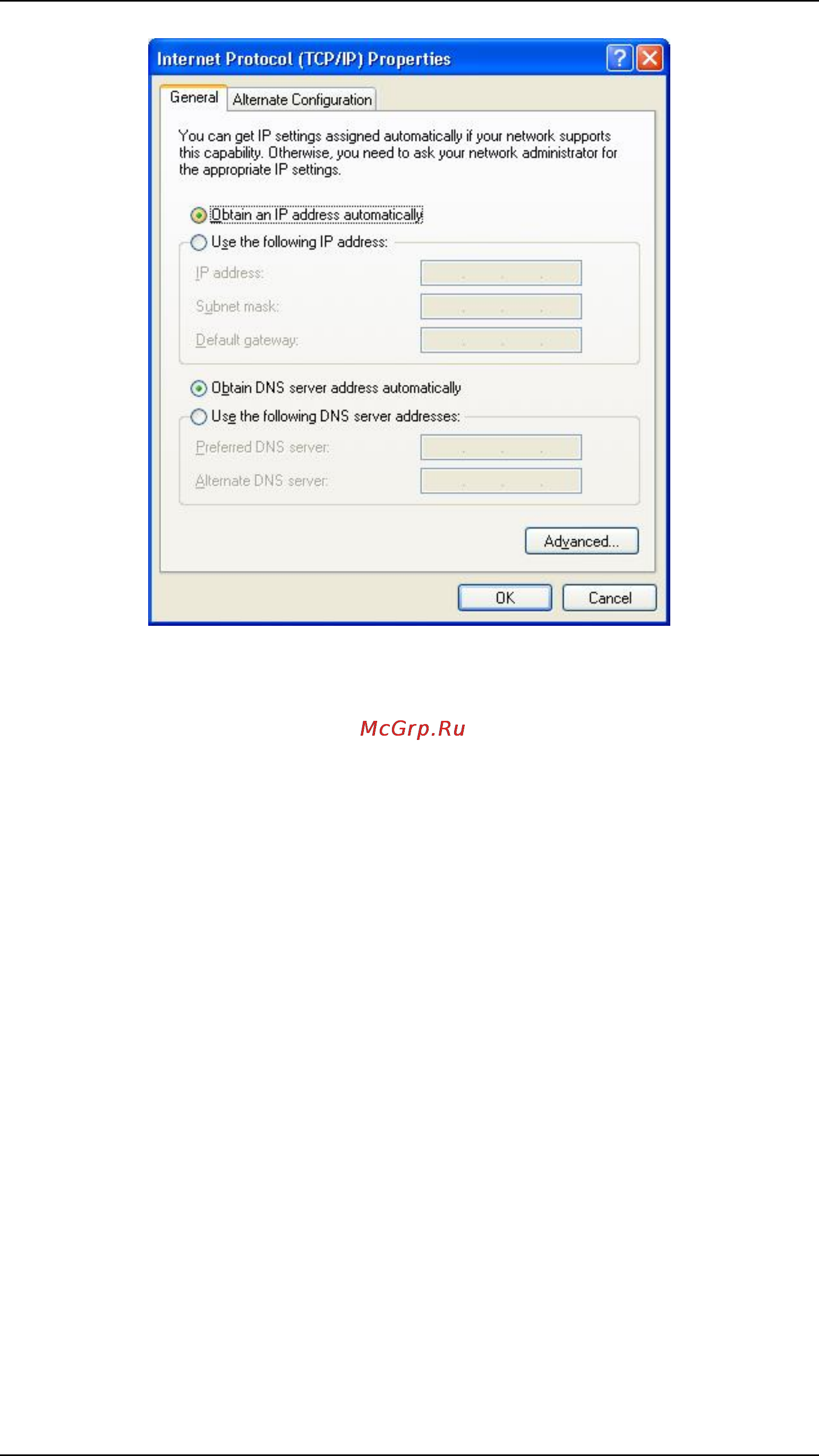

Figure 19: TCP/IP Properties (Windows XP)
5. Ensure your TCP/IP settings are correct.
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the
default Windows setting. Using this is recommended. By default, VRT-401 will act as
a DHCP Server.
Restart your PC to ensure it obtains an IP Address from VRT-401.
Using a fixed IP Address ("Use the following IP Address")
If your PC is already configured, check with your network administrator before making
the following changes.
· In the Default gateway field, enter VRT-401’s IP address and click OK. Your LAN
administrator can advise you of the IP Address they assigned to VRT-401.
· If the DNS Server fields are empty, select Use the following DNS server addresses,
and enter the DNS address or addresses provided by your ISP, then click OK.
