VRT-401 User Manual
4
Physical Details
Front-mounted LEDs

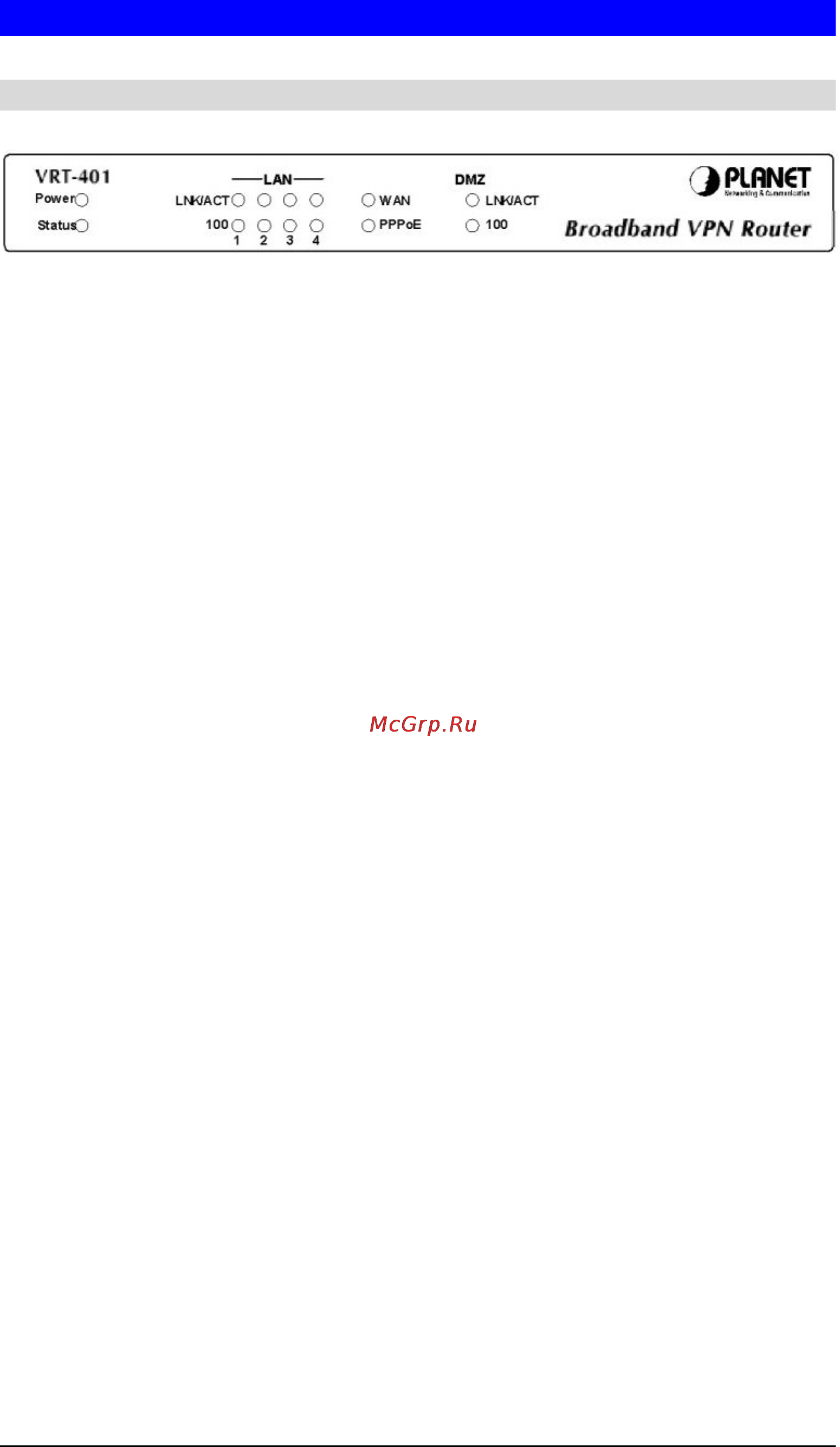

Figure 2: Front Panel
Power On - Power on.
Off - No power.
Status (Red)
On - Error condition.
Off - Normal operation.
Blinking - This LED blinks during start up.
LAN
For each port, there are 2 LEDs
· LNK/ACT
· On - Corresponding LAN port is active.
· Off - No active connection on the corresponding LAN port.
· Flashing - Data is being transmitted or received via the
corresponding LAN port.
· 100
· On - Corresponding LAN port is using 100BaseT.
· Off - Corresponding LAN port connection is using 10BaseT,
or no active connection.
WAN On - Connection to the modem attached to the WAN (Internet) port
is established.
Flashing - Data is being transmitted or received via the WAN port.
PPPoE On - PPPoE connection established.
Off - No PPPoE connection.
DMZ
· LNK/ACT
· Blinking – receiving/ transmitting data
· 100
· On - Link at 100Mbps
· Off - Link at 10Mbps
