Security Configuration
67
Scheduling
· This schedule can be (optionally) applied to any Access Control Group.
· Blocking will be performed during the scheduled time (between the "Start" and
"Finish" times.)
· Two (2) separate sessions or periods can be defined.
· Times must be entered using a 24 hr clock.
· If the time for a particular day is blank, no action will be performed.
Define Schedule Screen
This screen is accessed by the Scheduling link on the Security menu.

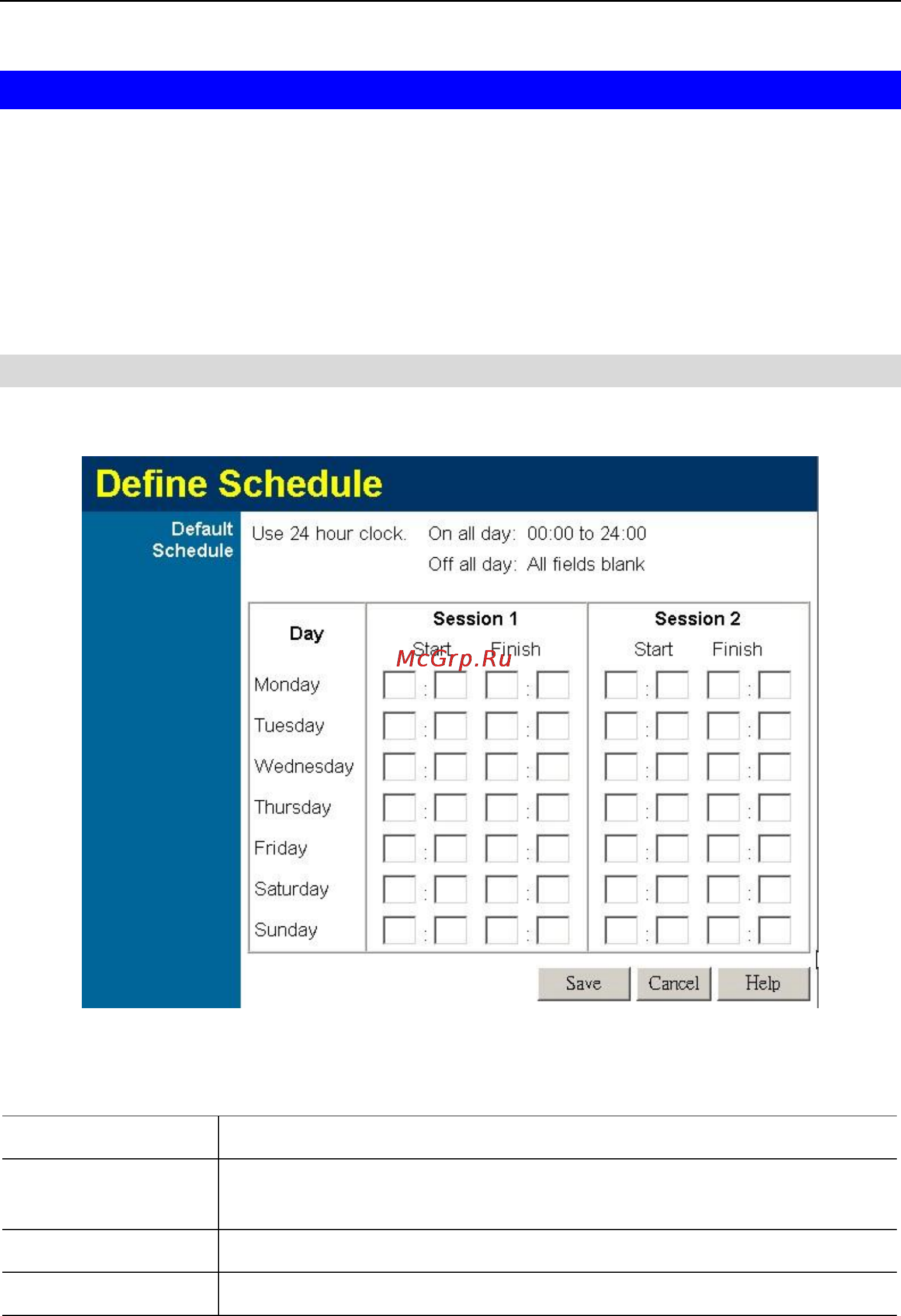

Figure 41: Define Schedule Screen
Data - Define Schedule Screen
Day
Each day of the week can scheduled independently.
Session 1
Session 2
Two (2) separate sessions or periods can be defined. Session
2 can be left blank if not required.
Start Time
Enter the start using a 24 hr clock.
Finish Time
Enter the finish time using a 24 hr clock.
