Other Features and Settings

109

PC Database (Admin)

This screen is displayed if the "Advanced Administration" button on the PC Database

is clicked. It provides more control than the standard PC Database screen.

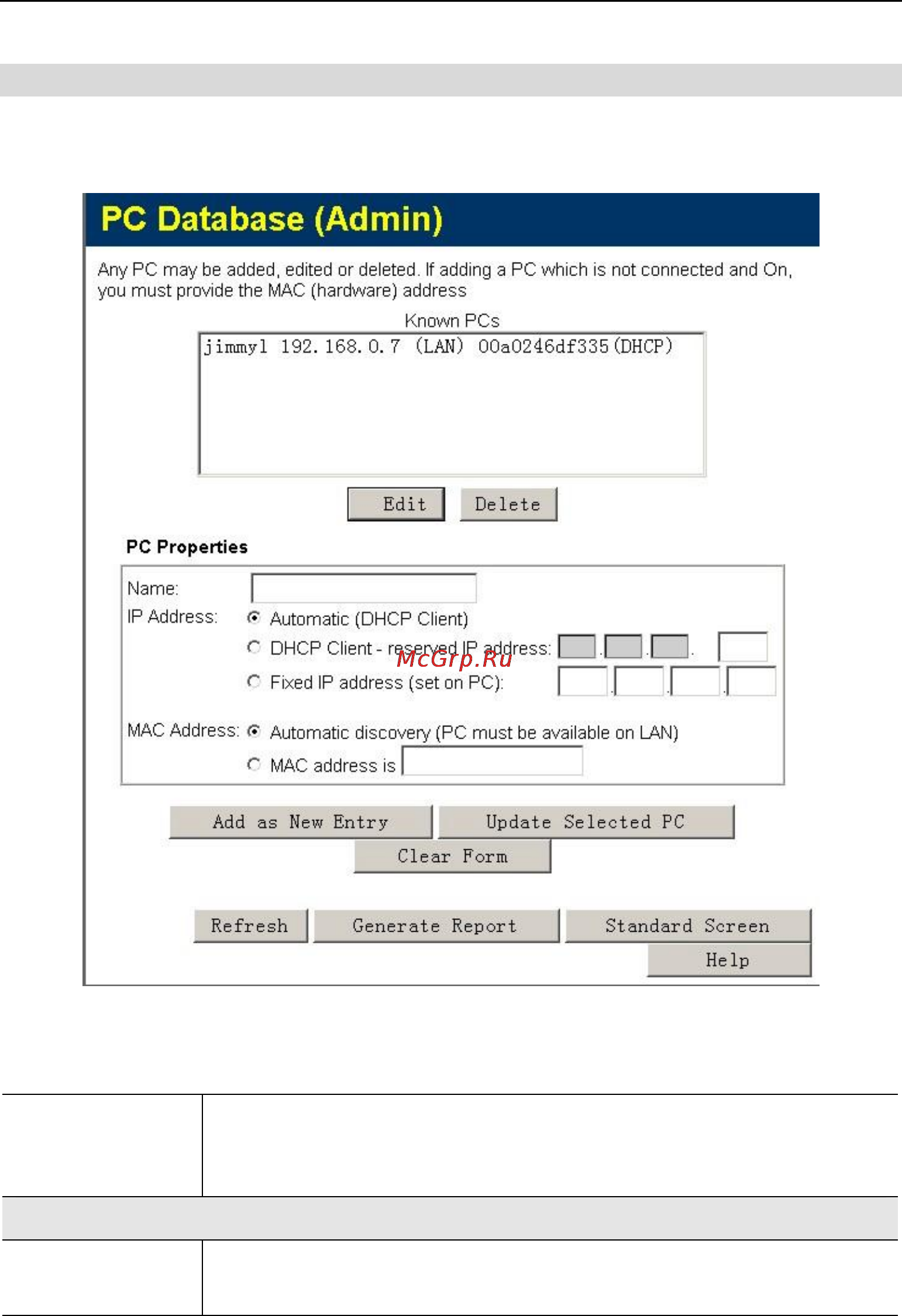

Figure 91: PC Database (Admin)

Data - PC Database ( Admin) Screen

Known PCs

This lists all current entries. Data displayed is name (IP Address)

type. The "type" indicates whether the PC is connected to the

LAN.

PC Properties

Name

If adding a new PC to the list, enter its name here. It is best if this

matches the PC's "hostname".
