Other Features and Settings
117
UPNP

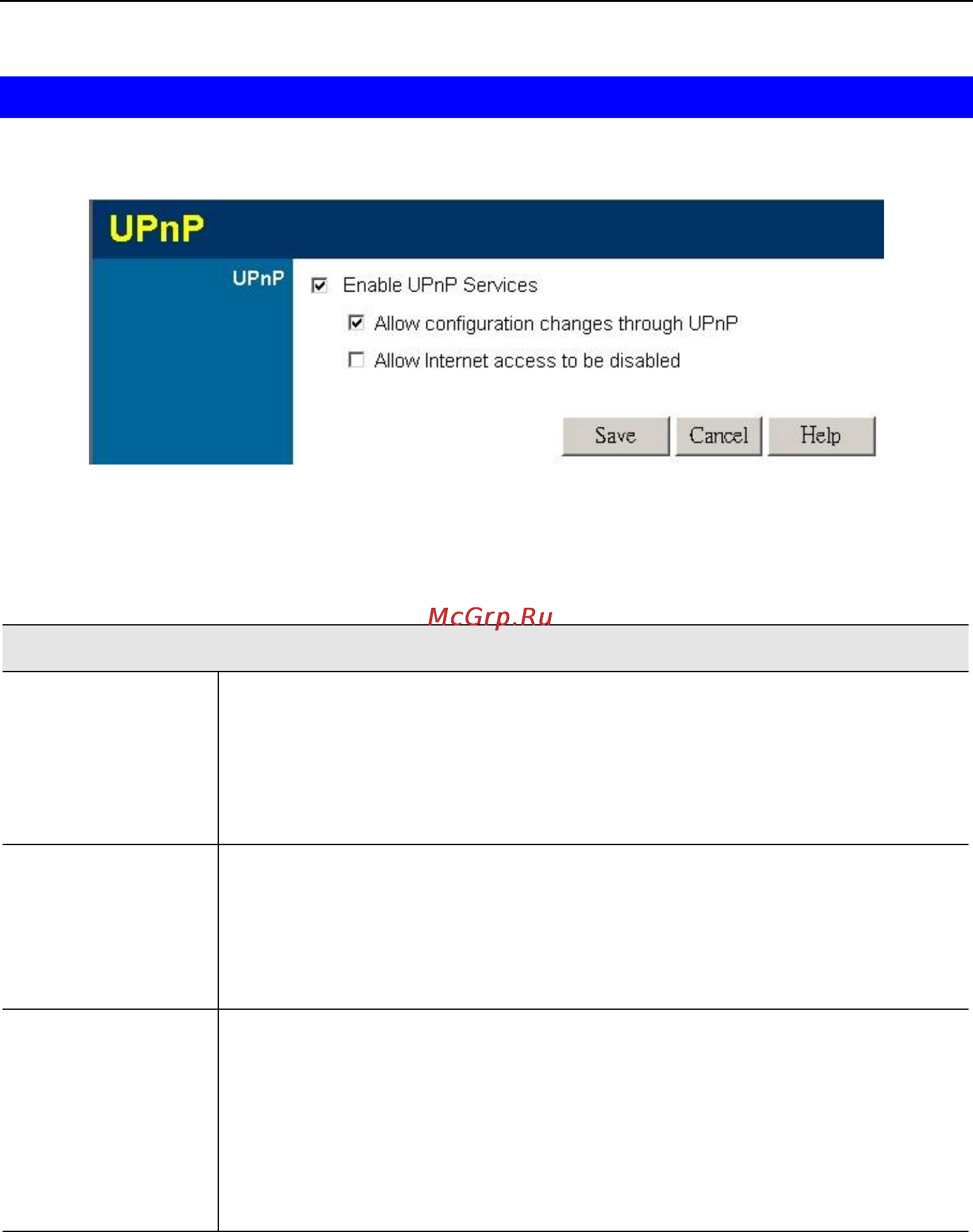

An example UPNP screen is shown below.
Figure 96: UPNP Screen
Data - UPNP Screen
UPnP
Enable UPnP
Services
· UPnP (Universal Plug and Play) allows automatic discovery
and configuration of equipment attached to your LAN. UPnP
is by supported by Windows ME, XP, or later.
· If Enabled, this device will be visible via UPnP.
· If Disabled, this device will not be visible via UPnP.
Allow Configu-
ration...
· If checked, then UPnP users can change the configuration.
· If Disabled, UPnP users can only view the configuration. But
currently, this restriction only applies to users running Win-
dows XP, who access the Properties via UPnP. (e.g. Right -
click VRT-401 in My Network Places, and select Properties)
Allow Internet
access to be
disabled
· If checked, then UPnP users can disable Internet access via
this device.
· If Disabled, UPnP users can NOT disable Internet access via
this device. But currently, this restriction only applies to users
running Windows XP, who access the Properties via UPnP.
(e.g. Right - click VRT-401 in My Network Places, and select
Properties)
