Planet VRT-401 [104/125] Windows 2000 server configuration

VRT-401 User Manual

100

Windows 2000 Server Configuration

Configuration is the same as for Example 2: Windows 2000/XP Client to except for

specifying the Source and Destination addresses for the "Filter Properties". Instead, for

both IP Filters, the Filter Properties- Addressing should be completed as follows.

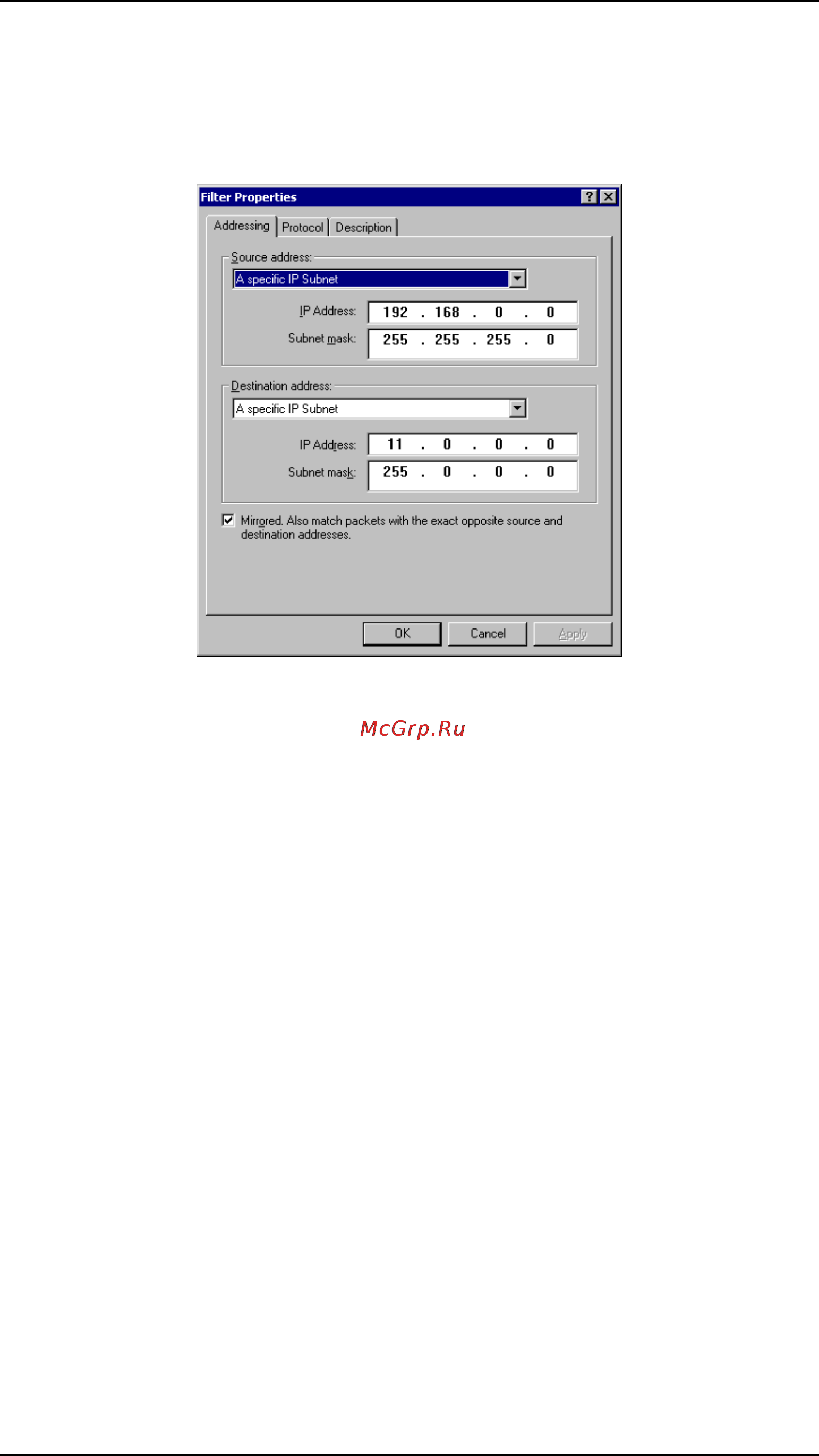

Figure 82: Windows 2000 Server - Addressing

· The Source Address should be set to "A specific IP Subnet", and the IP address

and Subnet mask set to the address range used on VRT-401's LAN.

· The Destination Address should be set to "A specific IP Subnet", and the IP ad-

dress and Subnet mask set to the address range used on the Windows 2000 LAN.
