VRT-401 User Manual
86
mode
DH Group Group 1 (768 bit) Must match client PC
IKE SA Life time 28800 Does not have to match client PC. Shorter
period will be used.
IKE PFS Disable Must match client PC
IPSec SA Parameters
IPSec SA Life
time
28800 Do not have to match. Shorter period will
be used.
IPSec PFS Disable Must match client PC
AH authentication
Disabled AH is rarely used
ESP authentica-
tion
Enable/MD5 Must match client PC
ESP encryption Enable/DES Must match client PC
Windows Client Configuration
1. Select Start - Programs - Administrative Tools - Local Security Policy.
2. Right click IP Security Policy on Local Machine and select Create IP Security
Policy

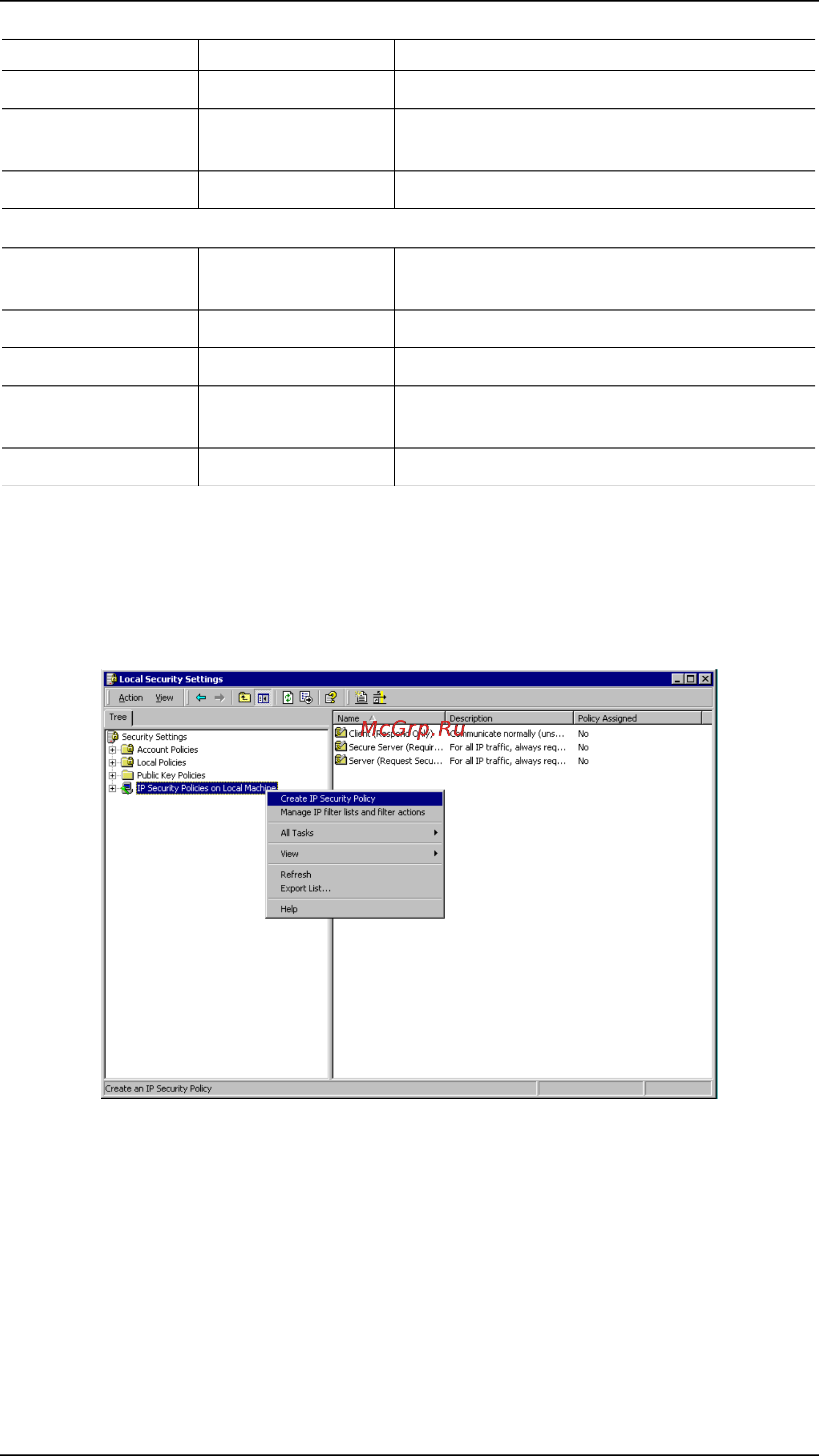

Figure 55: Windows 2000/XP - Local Security Settings
3. Click "Next", then enter a policy name, for example "DUT To Win2K", then click
"Next".
4. Step through the Wizard:
· Deselect Activate the default response rule. Click "Next",
· Leave Edit Properties checked. Click "Finish".
5. The following "Properties - Rules" screen will be displayed.
