VPN

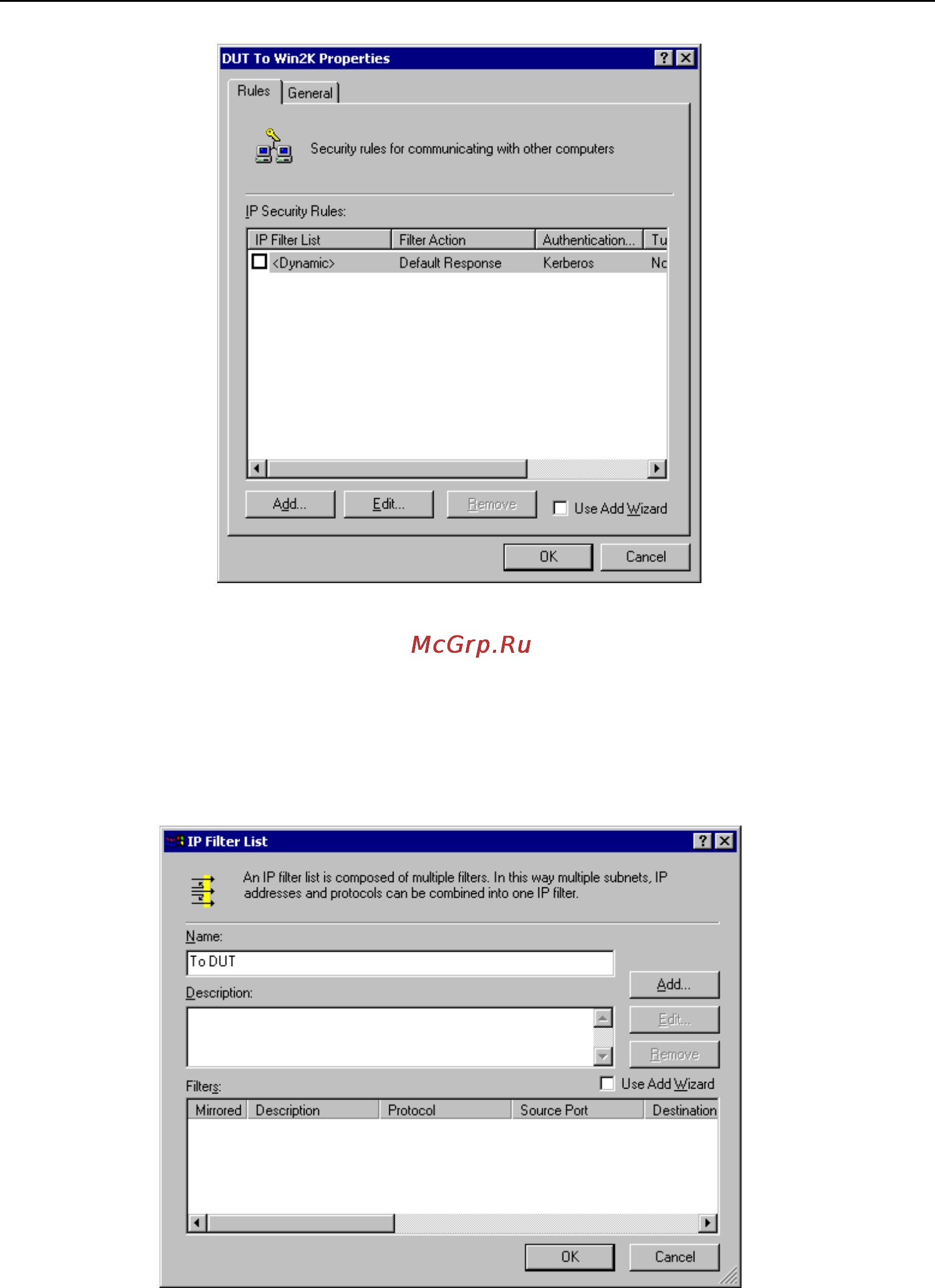

Figure 56: Windows 2000/XP - Policy Properties

· Note that no rules are in use. Two 2 rules are required - incoming and outgo-

ing.

· The outgoing rule will be added first.

6. Deselect the "Use Add Wizard" checkbox, then click "Add" to view the screen

below.

Figure 57: IP Filter List

7. Type "To DUT" for the name, then click "Add" to see a screen like the following.

· Since this is the outing filter, the Source IP address is "My IP address" and the

Destination IP address is the address range used on the remote LAN.

· Ensure the Mirrored option is checked.
