VRT-401 User Manual

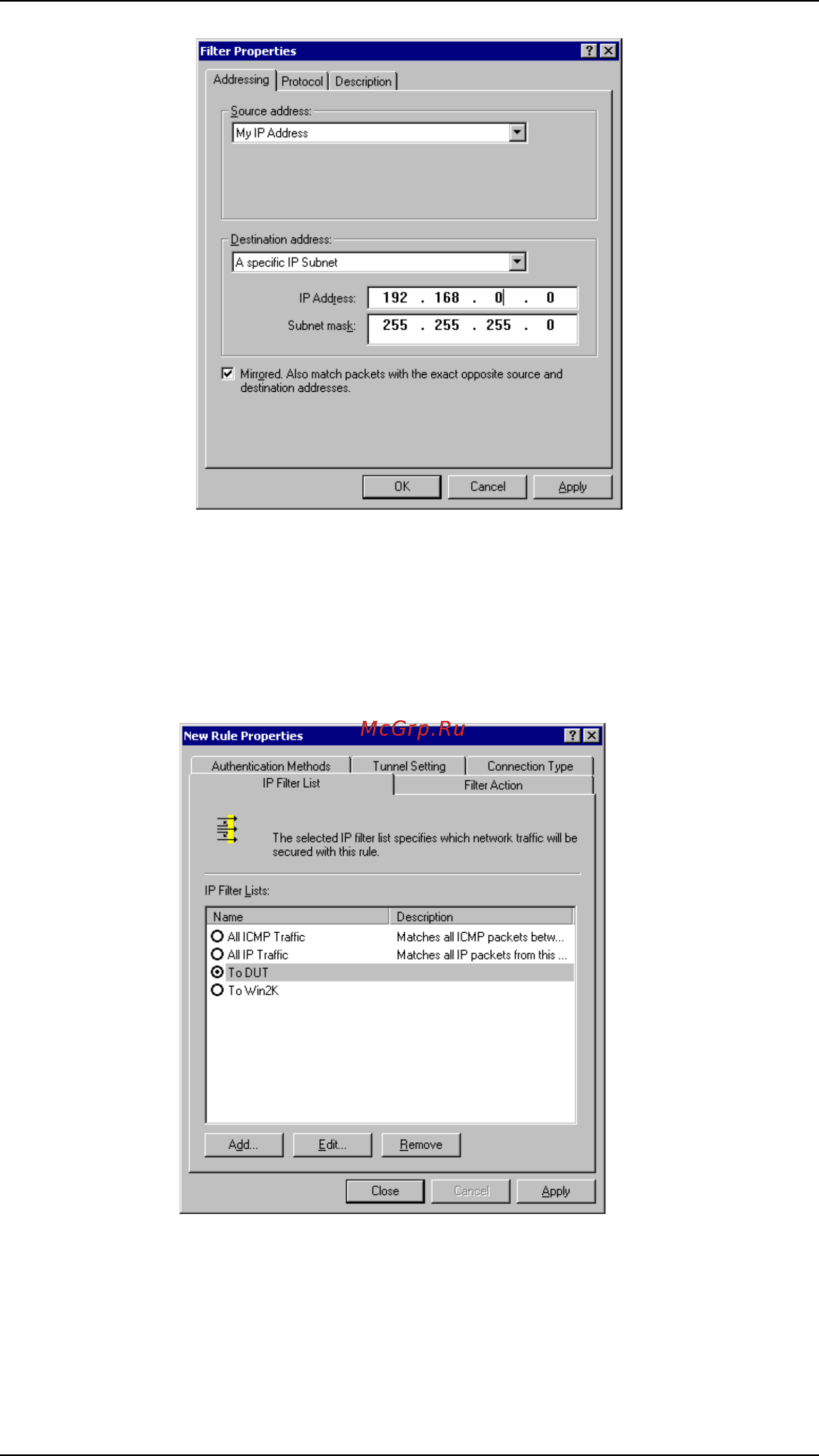

Figure 58: Filter Properties: Addressing

8. Enter the Source IP address and the Destination IP address.

· Since this is the outing filter, the Source IP address is "My IP address" and the

Destination IP address is the address range used on the remote LAN.

· Ensure the Mirrored option is checked.

9. Click "OK" to save your settings and close this dialog.

Figure 59: New Rule Properties: IP Filter List

10. On the resulting screen (above), ensure the "To DUT" filter is selected, then click

the Filter Action tab to see a screen like the following
