VPN

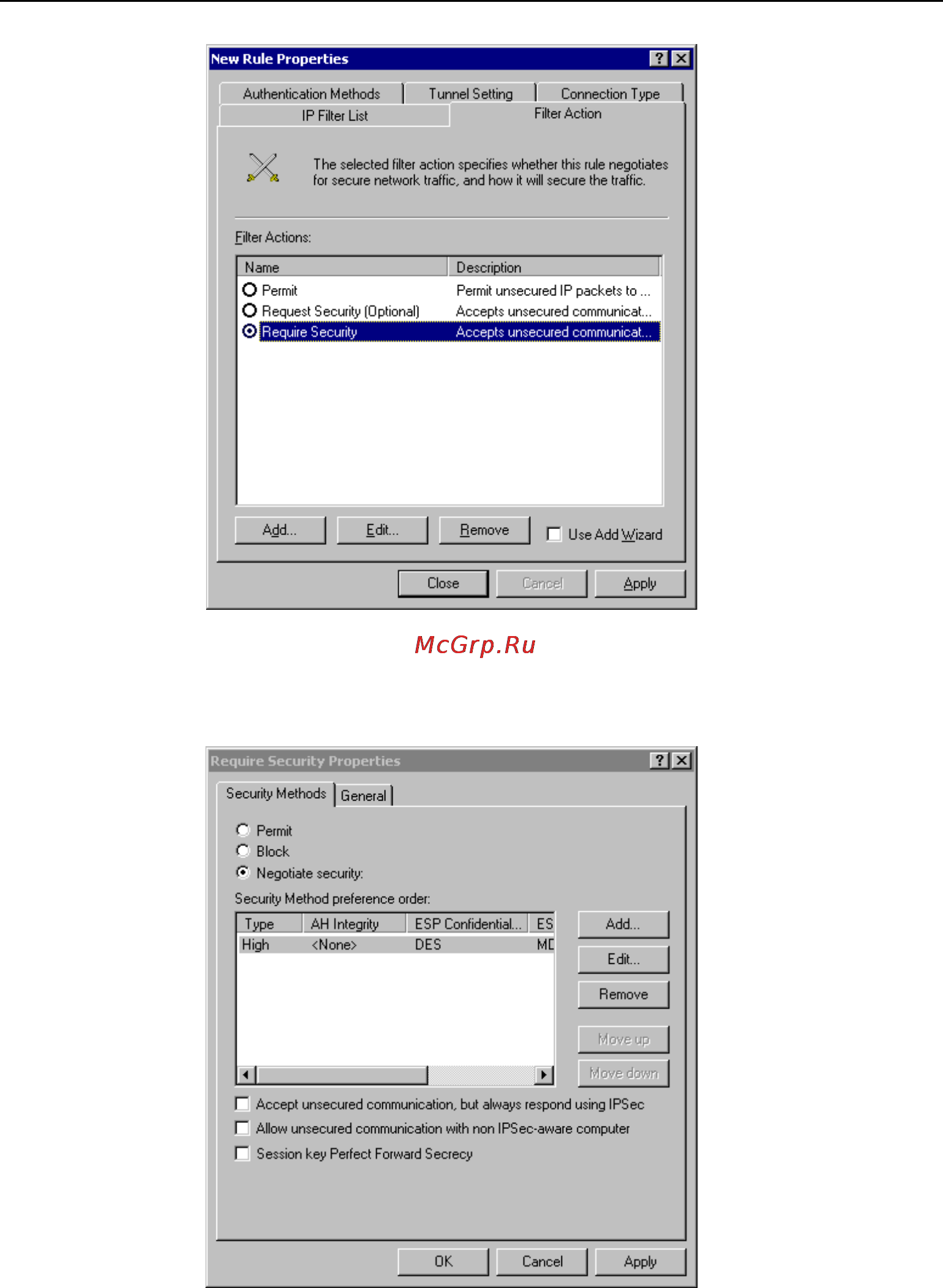

Figure 60: New Rule Properties: Filter Action

11. Select Require Security, then click the "Edit" button, to view the Require Security

Properties screen.

Figure 61: Require Security Properties

12. Select Negotiate security (this selects IKE), then click "Add".
