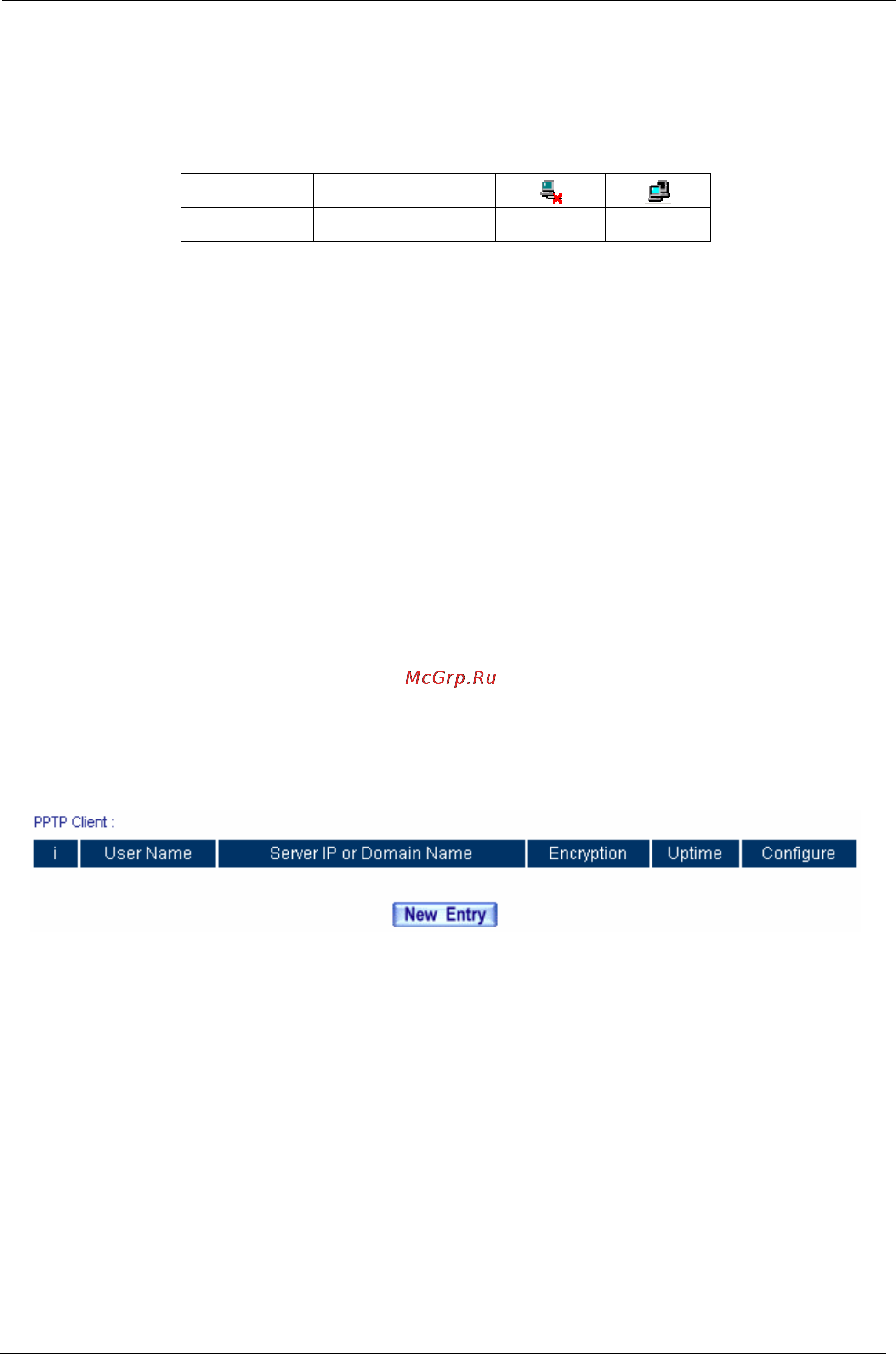

MH-2001 Multi-Homing Security Gateway User’s Manual
Define the required fields of PPTP Client Function
i:
To display the VPN connection status via icon。
Chart --
Meaning Not be applied Disconnect Connecting
User Name:
Displays the PPTP Client user’s name when connecting to PPTP Server.
Server IP or Domain Name:
Display the PPTP Server IP addresses or Domain Name when connecting to PPTP Server.
Encryption:
Display PPTP Client and PPTP Server transmission, whether opens the encryption authentication
mechanism.
Uptime:
Displays the connection time between PPTP Server and Client.
Configure:
Click Modify to change the argument of PPTP Client; click Remove to remote the setting.
PPTP Client WebUI
- 108 -
