MH-2001 Multi-Homing Security Gateway User’s Manual
To alert and block the external or internal anomalous data packets.

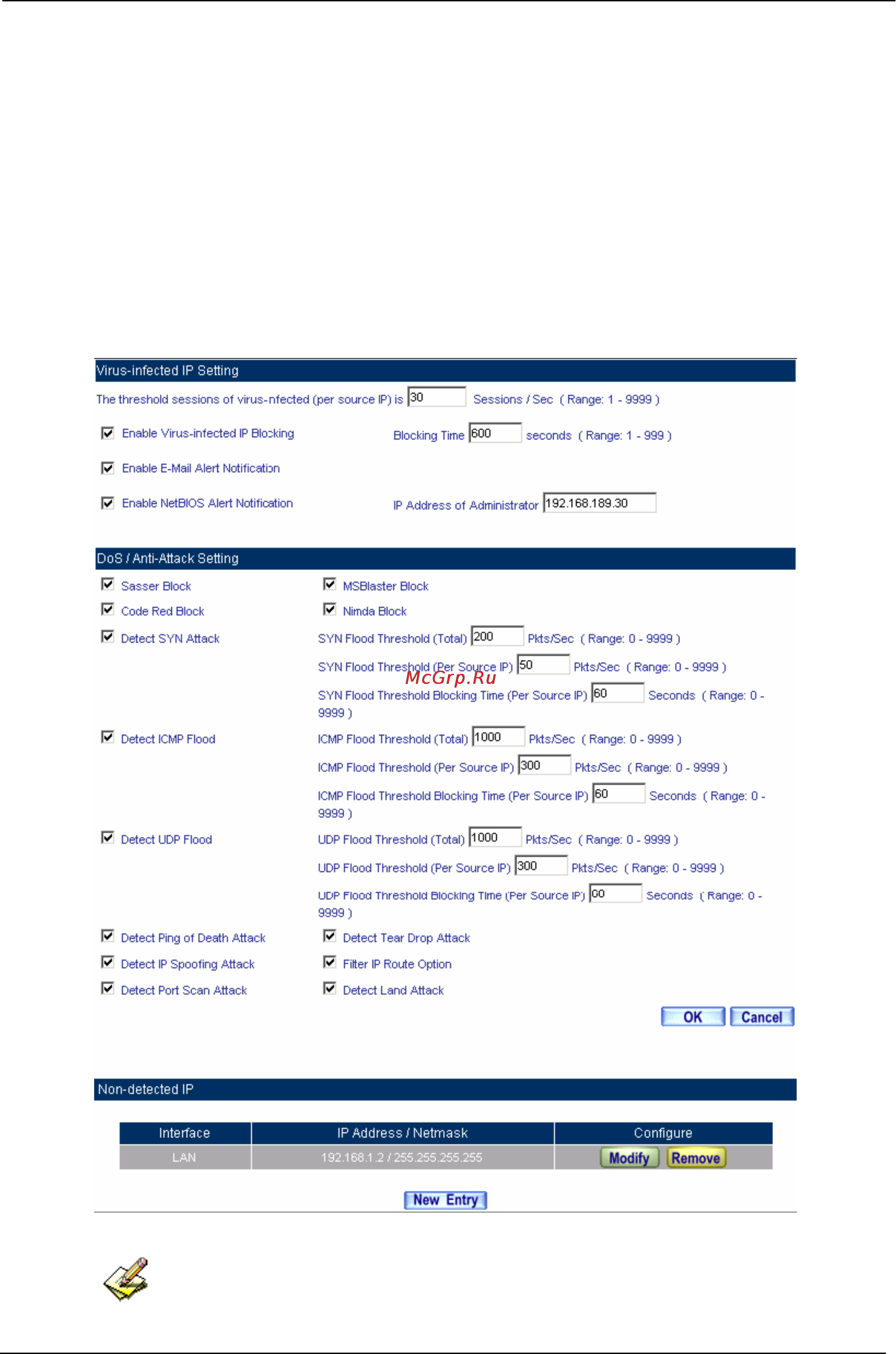

STEP 1 . In Anomaly IP Æ Setting :
The threshold sessions of virus-infected is (default is 30 sessions/sec)
Select Enable Virus-infected IP Blocking (Blocking Time 600 seconds)
Select Enable E-Mail Alert Notification.
Select Enable NetBIOS Alert Notification.
Enter 192.168.89.30 in IP Address of Administrator.
Enable all the function in DoS / Anti-Attack Setting.
Click OK.
The setting of anomaly flow IP and Dos / Anti-Attack
You can add Non-detected IP, and these IP will not controlled by this function.
- 256 -
