MH-2001 Multi-Homing Security Gateway User’s Manual
4.1.3 Software Update
Under Software Update, the admin may update the device’s software with newer software.

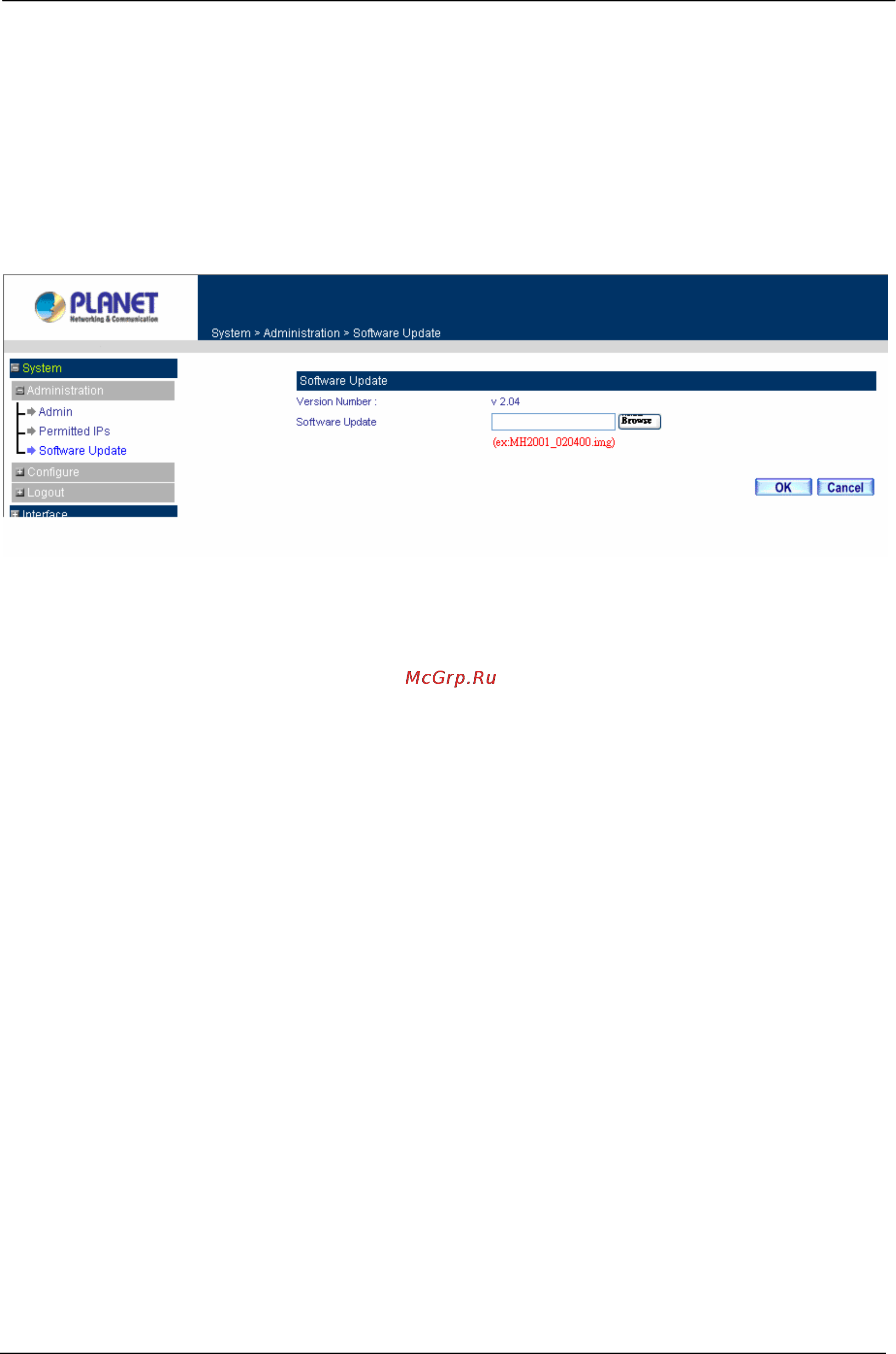

You may acquire the current version number of software in Version Number. Administrators may visit
distributor’s web site to download the latest version and save it in server’s hard disc.
Step 1. Click Browse to select the latest version of Software.
Step 2. Click OK to update software.
NOTE: It takes three minutes to update the software. The system will restart automatically after updating the
software.
