MH-2001 Multi-Homing Security Gateway User’s Manual
The Default Gateway of Company A is the LAN IP of the MH-2001 192.168.10.1. Follow
the steps below:

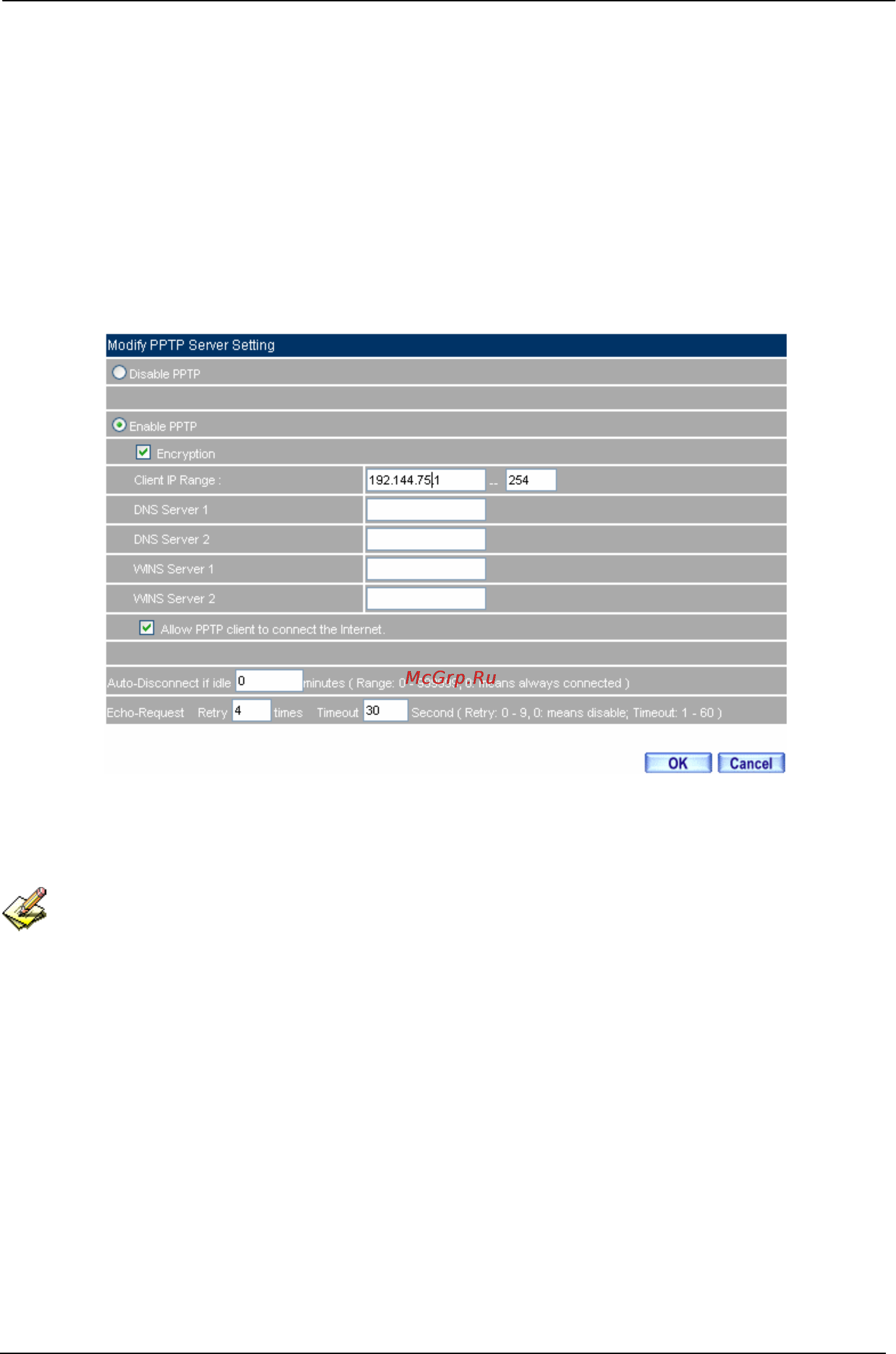

STEP 1 . Enter PPTP Server of VPN function in the MH-2001 of Company A. Select Modify and enable
PPTP Server:
Select Encryption.
Client IP Range: Enter 192.44.75.1-254.
Idle Time: Enter 0.
Enable PPTP VPN Server Settings
Idle Time: the setting time that the VPN Connection will auto-disconnect under unused situation.
- 209 -
