MH-2001 Multi-Homing Security Gateway User’s Manual
Setting DMZ Interface Address (Transparent Mode)
STEP 1﹒Select DMZ Interface
STEP 2﹒Select Transparent Mode in DMZ Interface
Select DMZ_Transparent in DMZ Interface
STEP 3﹒Select Ping and HTTP
STEP 4﹒Click OK

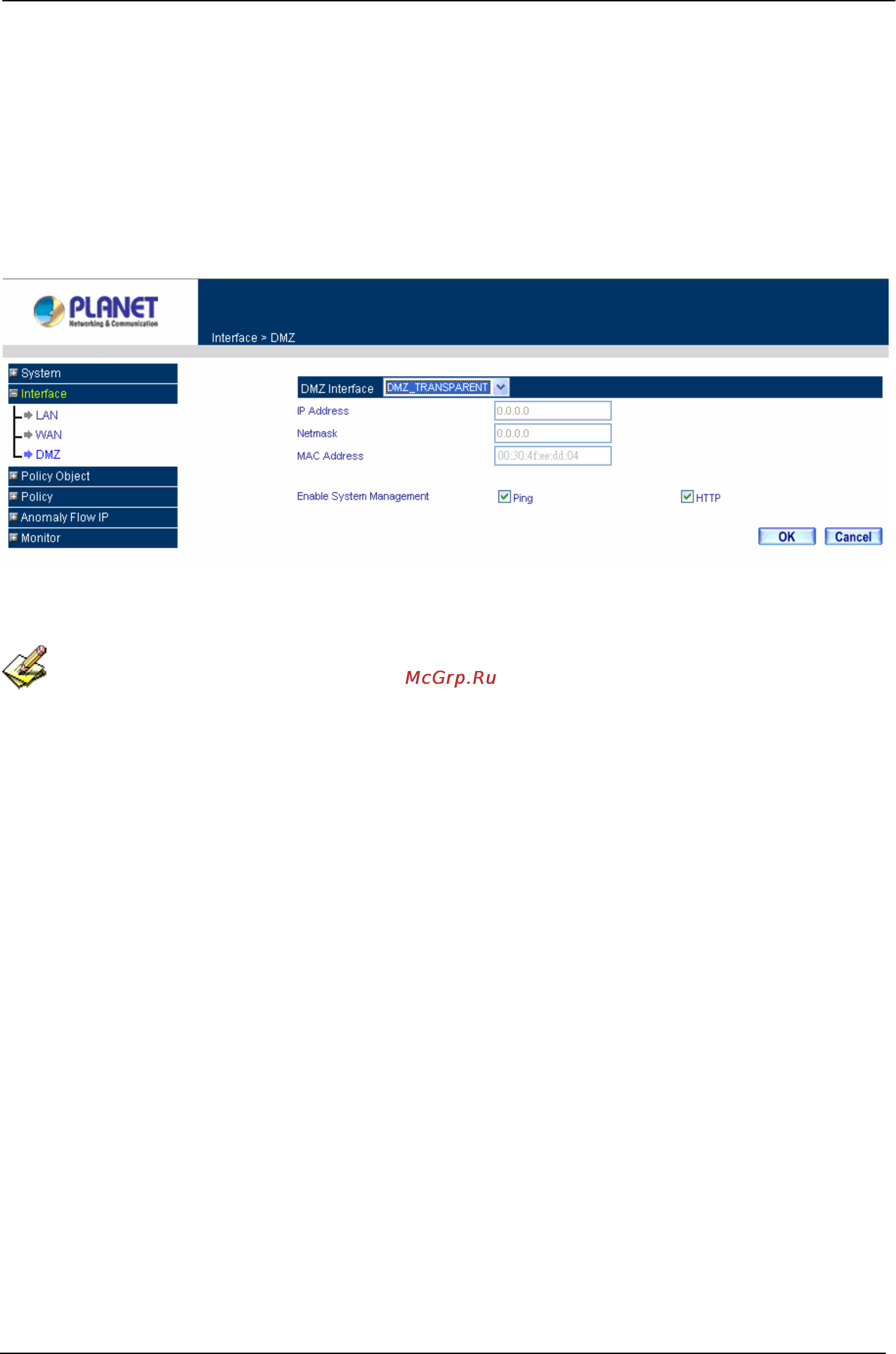

Setting DMZ Interface Address (Transparent Mode) WebUI
In WAN, the connecting way must be Static IP Address and can choose Transparent Mode in DMZ.
- 41 -
