MH-2001 Multi-Homing Security Gateway User’s Manual
The B Company’s PC use the Real IP (211.22.22.22). Add the following settings：

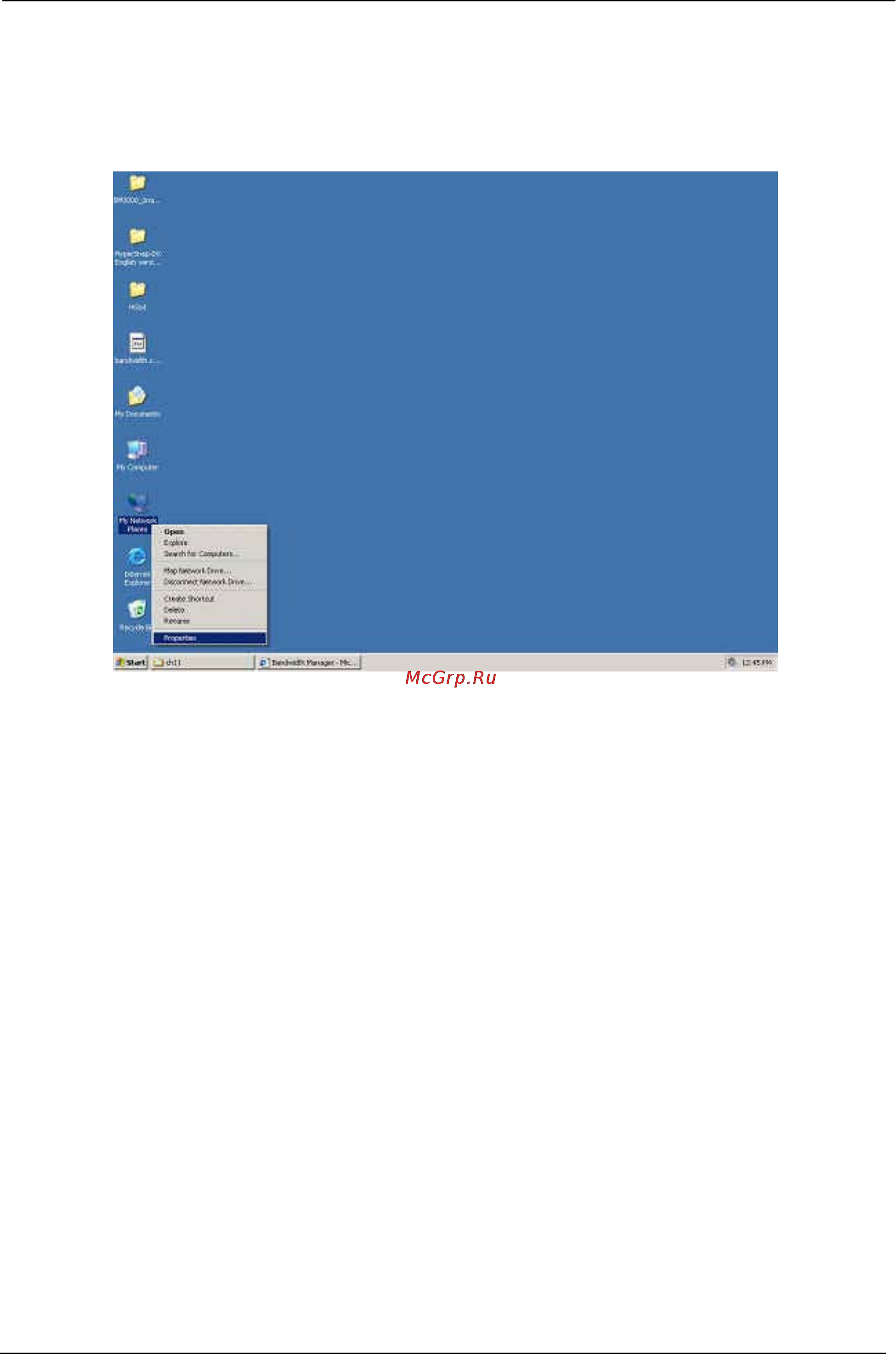

STEP 6 . Right click on My Network Places, and select Properties.
To start the Windows 2000 PPTP VPN setting
- 224 -
